Media focused boards which can be used to:
- Develop and prototype microcontroller-based designs
- Develop, test and debug software
- Learn about microcontrollers
- Integrate into a final product
Available for:
- PIC (including PIC24, dsPIC and PIC32)
- Atmel AVR
- ARM
- FT90x
 |
|
Looking for more display solutions? Please see our Display Solutions Overview for more information on the various different types of systems which we have available. Need advice on which system might best fit your requirements? Please do not hesitate to contact us! |
Main Boards

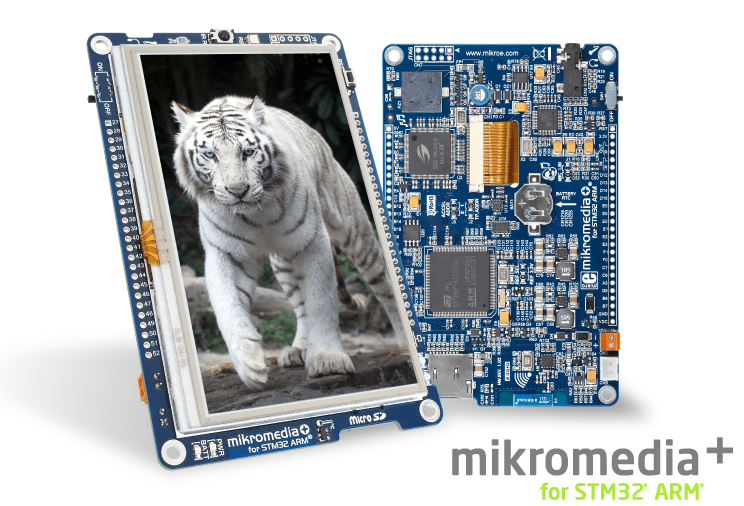

MikroMedia Plus boards feature:
- 480x272 4.3" Touch-screen TFT display.
- 3.5mm headphone jack and VS1053 stereo MPEG codec.
- ADXL345 Accelerometer.
- Lithium-polymer battery connector and charging circuit.
- Nordic nRF24L01+ 2.4GHz RF transceiver with chip antenna.
- MCP9700A analogue temperature sensor (-40°C to 125°C).
- Infra-red receiver.
- Lithium-polymer real-time clock (RTC) backup battery.
- Bootloader - no external programmer necessary.
|
- MicroSD card slot.
- USB, with USB On-The-Go.
- M25P80 Serial Flash memory (8Mbit).
- LAN8720A Ethernet PHY (STM32 board only).
- Piezo buzzer.
- RGB LED.
- Photosensor for measuring ambient light.
- Reset button and on/off switch.
- Example programs.
|
Shields / Accessories
 |
Shields, which plug into and extend the functionality of the mikroMedia Plus board, are available. Shields cost R320* when purchased together with a mikroMedia Plus system.
The following accessories are available:
|
Systems
Main Boards
MikroMedia 5" boards feature:
- 800x480 5" Touch-screen TFT display.
- 3.5mm headphone jack and VS1053 stereo MPEG codec.
- ADXL345 Accelerometer.
- Lithium-polymer battery connector and charging circuit.
- Nordic nRF24L01+ 2.4GHz RF transceiver with chip antenna.
- MCP9700A analogue temperature sensor (-40°C to 125°C).
- Infra-red receiver.
- Lithium-polymer real-time clock (RTC) backup battery.
- Built-in USB programmer and debugger.
|
- MicroSD card slot.
- USB, with USB On-The-Go.
- Fast MT48LC4M16A2 8MB SDRAM.
- RJ45 Ethernet connector, LAN pulse transformer and filter.
- Piezo buzzer.
- RGB LED.
- Photosensor for measuring ambient light.
- Reset button and on/off switch.
- Example programs.
|
Shields / Accessories
 |
Shields, which plug into and extend the functionality of the mikroMedia Plus board, are available. Shields cost R825*.
The following accessories are available:
|
Systems
| System |
Microcontroller |
Shield Features |
| Tiva ARM |
TM4C129xNCZAD |
4 mikroBus sockets, physical layer for CAN, and USB-UART module (with miniUSB connector). |
Main Boards

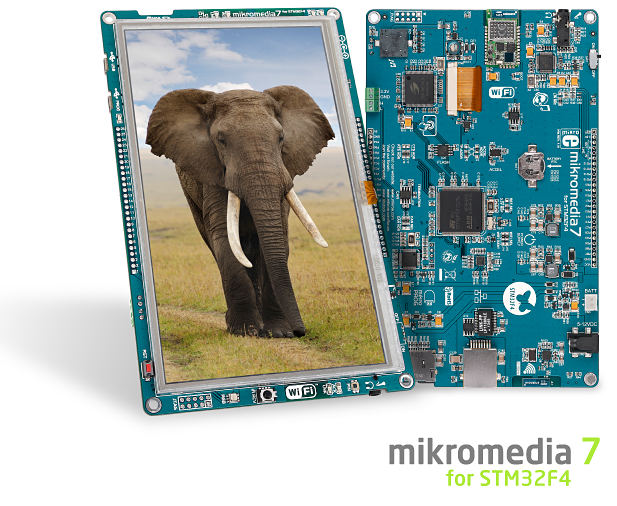

MikroMedia 7" boards feature:
- 800x480 7" Touch-screen TFT display.
- 3.5mm headphone jack and VS1053 stereo MPEG codec.
- ADXL345 Accelerometer.
- Lithium-polymer battery connector and charging circuit.
- Nordic nRF24L01+ 2.4GHz RF transceiver with chip antenna.
- MCP9700A analogue temperature sensor (-40°C to 125°C).
- Infra-red receiver.
- Lithium-polymer real-time clock (RTC) backup battery.
- Built-in USB programmer and debugger.
|
- MicroSD card slot.
- USB, with USB On-The-Go.
- Additional 8MB serial flash memory.
- RJ45 Ethernet connector
- Piezo buzzer.
- RGB LED.
- Photosensor for measuring ambient light.
- Reset button and on/off switch.
- Example programs.
|

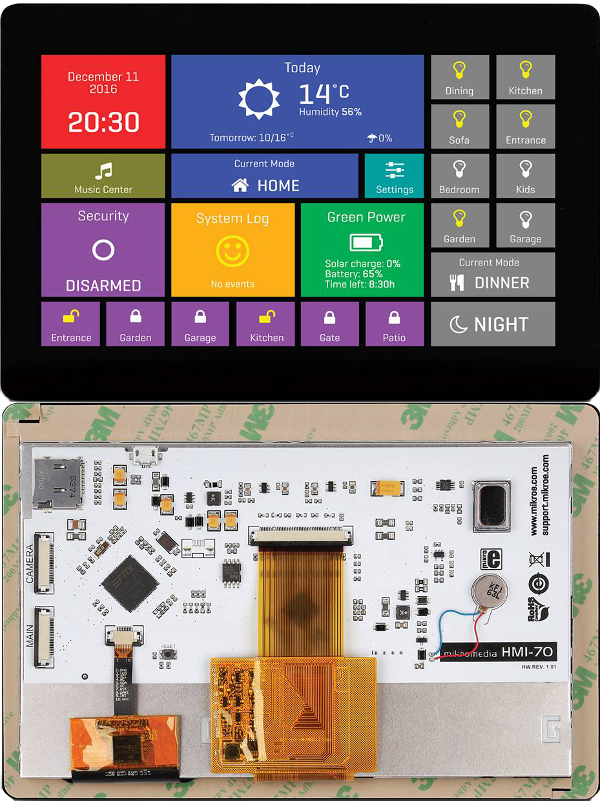

MikroMedia HMI; boards feature:
- 3.5" to 7" NonTouch/Touch-screen display.
- 320x240 to 800x480 Size.
- FT900Q Microcontroller Unit.
- 100MHz, 310DMIPS MCU speed.
- 256KB Flash on MCU.
- 2xCAN, 2xSPI, 2xI2C, I2S, UART
- FT8xx Graphics Controller with NonTouch/ResistiveTouch/CapacitiveTouch variants.
- 8MB Flash = MicroSD card slot.
- Audio Speaker.
- Haptic Feedback Engine on 4.3" to 7" screens
- Mounting Frame
|
 |
MultiMedia boards are available for the PIC32MX4 and PIC32MX7.
| MX4 |
MX7 |
Feature |
 |
|
320X240 Touch-screen TFT display |
|
|
2 X 3.5mm jack (mic / headphones), stereo codec |
|
|
SD card slot |
|
|
USB Bootloader, Microchip ICD2/ICD3 connector |
|
|
MikroProg
programmer connector (MX4 is possible if adapted)
|
|
|
USB host and slave connectors |
|
|
RS232 with MAX232 |
|
|
Accelerometer |
|
|
Serial Flash, Serial EEPROM |
|
|
Joystick button |
|
|
ZigBee support (ZigBee module sold seperately) |
| |
|
Ethernet |
|
 |
SmartGLCD is a complete package for developing graphical touch-screen applications, using a PIC18F8722.
It features:
- 240X128 Graphic LCD.
- RGB backlight.
- Touch-screen.
- MicroSD card slot.
- USB.
- Bootloader - no external programmer necessary. Also compatible with MikroProg programmer.
- Example programs.
|
*Prices exclude VAT and may be subject to the Rand/Dollar exchange rate / change without notice. Please see the store for more information on pricing.
|
