mikroMedia Plus for STM32F7 (Go to Parent Category)

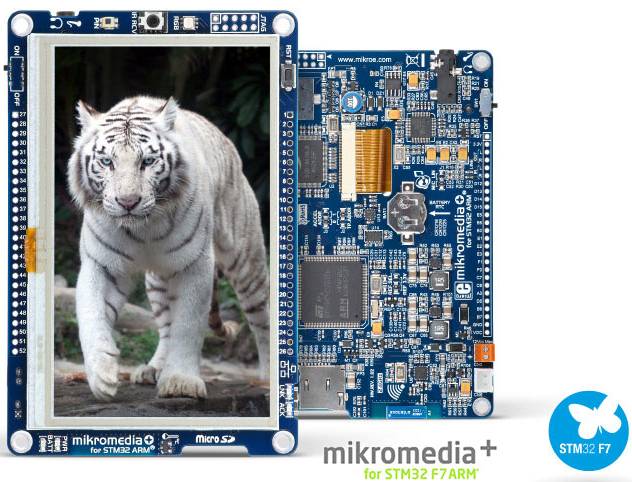

mikroMedia Plus for STM32F7 Create control interfaces, run multimedia content, play games, and even movies with fantastic mikromedia boards, now faster than ever, with mikromedia plus for STM32F7. Powered by an ARM Cortex-M7 STM32F746ZG MCU that can operate at 462 DMIPS it has twice the speed of its M4 predecessor. The mikromedia plus form factor carries a 4.3 inch 480px x 272px touch TFT display on the front, and plenty of multimedia modules on the back: MP3 codec, Accelerometer, microSD card slot, USB or USB UART connection, Programmer connectors and Battery Charger with connector.
R2,950  Qty:
Price ex. VAT. Est. Weight: 500g. Stock: Lead-time applicable [i]. mikroE Icon

MagnifyerExplore Features Interactively
  • 480x272 4.3" Touch-screen TFT display, with Solomon SSD1963 graphics controller.
  • 3.5mm headphone/microphone jack and stereo MPEG audio codec (VS1053).
  • MicroSD card slot.
  • USB, with USB On-The-Go.
  • Bootloader (no external programmer necessary). Also features a JTAG connector compatible with the MikroProg programmer.
  • Example programs.
  • STM32F746ZG microcontroller.
  • ADXL345 accelerometer.
  • M25P80 serial flash memory.
  • Li-Po battery connector and MCP73832 controlled charging circuit (Li-Po battery sold seperately), as an alternative to powering the system via the USB cable or power connector (12V max input).
  • Nordic nRF24L01+ 2.4GHz RF transceiver with chip antenna.
  • LAN8720A Ethernet PHY.
  • Piezo buzzer.
  • RGB LED.
  • Photosensor for measuring ambient light.
  • Infra-red receiver.
  • MCP9700A analogue temperature sensor (-40°C to 125°C).
  • Lithium-polymer real-time clock (RTC) backup battery.
  • Reset button.
  • On/off switch.

The package consists of:
Protective Box
MikroMedia Board
USB Cable
USB Cable and
2GB microSD Card
