mikroMedia Plus for PIC32 (Go to Parent Category)

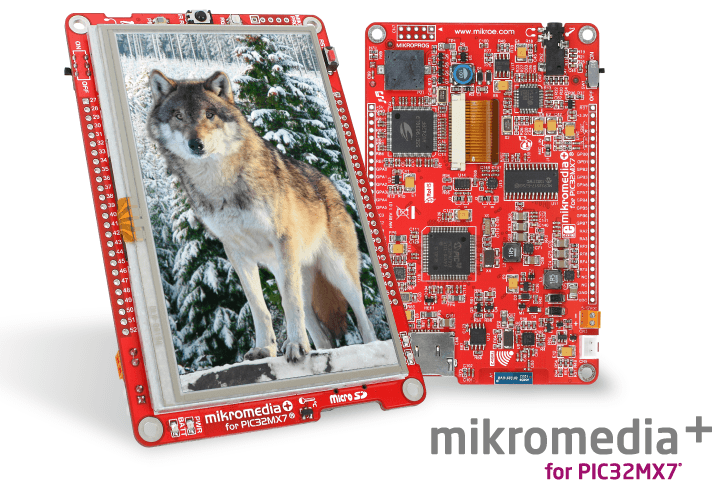

mikroMedia Plus for PIC32 Smart device with a large 4.3" TFT Touch Screen, or a multimedia development board - it's up to you. The board features a powerful PIC32MX795F512L device and loads of on-board modules, making it a perfect choice for your projects.
R2,850  Qty:
Price ex. VAT. Est. Weight: 500g. Stock: Lead-time applicable [i]. mikroE Icon


Features
MagnifyerExplore Features Interactively
  • 480x272 4.3" Touch-screen TFT display, with Solomon SSD1963 graphics controller.
  • 3.5mm headphone/microphone jack and stereo MPEG audio codec (VS1053).
  • MicroSD card slot.
  • USB, with USB On-The-Go.
  • Bootloader (no external programmer necessary). Also features a MikroProg programming connector.
  • Example programs.
  • PIC32MX795F512L microcontroller.
  • ADXL345 accelerometer.
  • M25P80 serial flash memory.
  • Li-Po battery connector and MCP73832 controlled charging circuit (Li-Po battery sold seperately), as an alternative to powering the system via the USB cable or power connector (12V max input).
  • Nordic nRF24L01+ 2.4GHz RF transceiver with chip antenna.
  • LAN8720A Ethernet PHY.
  • Piezo buzzer.
  • RGB LED.
  • Photosensor for measuring ambient light.
  • Infra-red receiver.
  • MCP9700A analogue temperature sensor (-40°C to 125°C).
  • Reset button.
  • On/off switch.

Package
The package consists of:
Box
Protective Box
MikroMedia Board
MikroMedia
USB Cable
USB Cable and
2GB microSD Card
Manuals
Manuals
Software
Software
Videos
