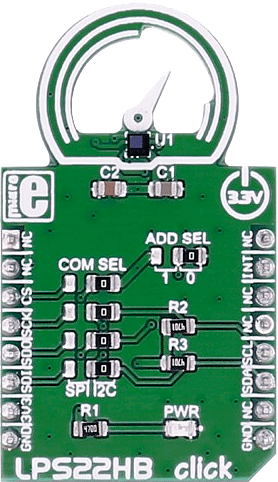

LPS22HB click is an easy solution for adding a digital barometer to your design. It carries the LPS22HB MEMS nano pressure sensor. The click is designed to run on a 3.3V power supply. LPS22HB click communicates with the target microcontroller over I2C or SPI interface.
How the click works
LPS22HB click carries the pressure sensor that measures 260-1260 hPa absolute pressure. Pressure values are then read out from the IC’s registers, through I2C or SPI communication.
LPS22HB sensor features
The LPS22HB is an ultra-compact piezoresistive absolute pressure sensor which functions as a digital output barometer.
The sensing element, which detects absolute pressure, consists of a suspended membrane. When pressure is applied, the membrane deflection induces an imbalance in the Wheatstone bridge piezoresistances, whose output signal is converted by the IC interface.
The sensor has a 24-bit pressure data output and a 16-bit temperature data output.
Key features
- LPS22HB pressure sensor
- 260 to 1260 hPa absolute pressure range
- Current consumption down to 3 µA
- 24-bit pressure data output
- 16-bit temperature data output
- I2C and SPI interface
- 3.3V power supply
