tRF Click is an add-on board in the mikroBUS form factor. It can be used to wirelessly send and receive UART data. It features the Telit LE70-868 868MHz transceiver module with an embedded stack that is easy to integrate and use in point-to-point or star network topologies. The click board also carries an SMA connector for an antenna as well as two radio communication LEDs. It enables radio data rates from 4.8 to 57.6 kbps with maximum output power of 500mW and a range of up to 10km in ideal conditions (open space), and about 4km in mixed conditions. The board is designed to use a 3.3V power supply only. An LED diode serves as a power indicator. |
|
|
|
|
|
|
LoRa RF click carries Microchip's RN2483 fully certified LoRa Sub-GHz, 433/868 MHz European R&TTE Directive Assessed Radio Modem. Two antenna connectors allow you to choose which of the two frequency bands will be employed.
The RN2483 module has a specified range of >15km in rural and suburban settings, and >5km coverage in urban areas.
A LoRaWAN Class A protocol stack is embedded (bidirectional end devices), as well as an ASCII command interface accessible through UART. The high receiver sensitivity can go down to -148 dBm.
LoRa RF click communicates with the target board MCU through the mikroBUS UART interface (CTS, TXD, RXD), with the addition of a Reset pin (RST). The board is designed to use either a 3.3V or a 5V power supply.
|
|
|
|
|
|
|
EnOcean click carries a TCM310 transceiver, which is a bidirectional gateway for EnOcean's 868 MHz radio systems. This low-powered wireless module is intended for use together with EnOcean's range of energy harvesting modules. These are miniaturized converters that harness energy from motion, light or temperature differences - they come in the form of self-powered, battery-free wireless switches, sensors and actuators. EnOcean click communicates with the target MCU through the mikroBUS UART interface (TX, RX), with additional functionality provided by the Reset (RST) and Enable (mikroBus PWM) pins. The board may be powered by 3.3V only. |
|
|
|
|
|
|
SPIRIT click carries the SP1ML 868MHz ultra low-power RF module. The board is designed to use 3.3V power supply and 3.3V or 5V I/O voltage levels. It communicates with the target MCU over UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: PWM, RST, CS. |
|
|
|
|
|
|
Spirit 2 Click features the SP1ML-915, an ultra-low power, fully integrated RF module, which operates at 915 MHz ISM band. This Click board™ can be used add wireless connectivity to any application, requiring no extensive RF communication experience. The module integrates all the required components, including the 32-bit STM32L1 MCU, a compact chip antenna, and accompanying circuitry. The SP1ML-915 module supports several types of modulation schemes, including 2-FSK, GFSK, GMSK, OOK, and ASK, allowing it to fulfill different RF transmission requirements.
Spirit 2 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
|
|
|
|
|
|
|
IQRF click carries the DCTR-76DA RF transceiver, operating in the 868/916 MHz frequency. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over SPI or UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, RST, PWM, INT. |
|
|
|
|
|
|
IQRF 2 click carries the DCTR-72DAT RF transceiver, operating in the 868/916 MHz frequency. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over SPI or UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, PWM. |
|
|
|
|
|
|
LoRa 2 click carries Microchip's RN2903 915 MHz Radio Modem compliant with regulations for use in the United States, Canada, Australia and New Zealand. See the manufacturer's data sheet for detailed information.
A European version is available separately.
The RN2903 module has a specified range of >15km in rural and suburban settings, and >5km coverage in urban areas. A LoRaWAN Class A protocol stack is embedded (bidirectional end devices), as well as an ASCII command interface accessible through UART. The high receiver sensitivity can go down to -146 dBm.
LoRa click communicates with the target board MCU through the mikroBUS UART interface (CTS, TXD, RXD), with the addition of a Reset pin (RST) and RTS. The board is designed to use either a 3.3V or a 5V power supply.
|
|
|
|
|
|
|

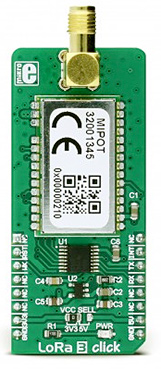

LoRa 3 click is a LoRa™ technology based SRD transceiver, which operates at sub-gigahertz frequency of 868MHz. Thanks to the spread spectrum modulation feature, as well as the low power consumption, it is capable of achieving a long-range communication, immune to interferences. This click board™ features a complete LoRa™ stack onboard: it implements physical, network and MAC layers, allowing for easy operation via the UART interface. The transceiver is RED 2014/53/EU certified and compliant to ReACH and ROHS regulations, allowing for an easy integration into the final application, reducing development time, costs, and time to market. |
|
|
|
|
|
|

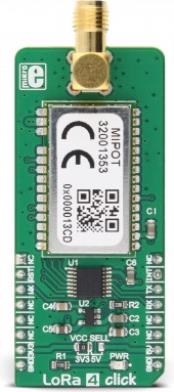

LoRa 4 click is a LoRa RF technology based SRD transceiver, which operates at sub-gigahertz frequency of 868MHz. Thanks to the spread spectrum modulation feature, as well as the low power consumption, it is capable of achieving a long-range LPWAN communication, immune to interferences. This click board™ features an embedded LoRaWAN™ Class A compliant stack. The transceiver is RED 2014/53/EU certified and compliant to ReACH and ROHS regulations, allowing for an easy integration into the final application, reducing development time, costs, and time to market. |
|
|
|
|
|
|

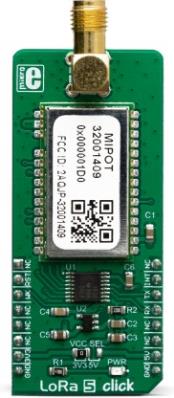

LoRa 5 click is a LoRa technology-based SRD transceiver Click board™, which operates at a sub-gigahertz frequency of 915MHz. Thanks to the spread spectrum modulation feature, as well as the low power consumption, it is capable of achieving a long-range communication, immune to interferences. Operated over the UART interface, it represents a very simple, yet powerful solution for the LoRa-based IoT communication network.
Lora 5 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
|
|
|
|
|
|
|

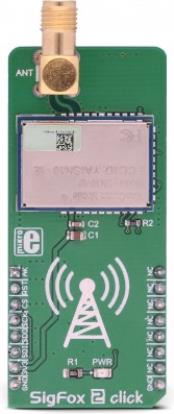

SigFox 2 click is a device which carries the SN10-12, a fully integrated Sigfox™ certified module by InnoComm, allowing connection to a low power wide area network (LPWAN) that enables communication utilizing the Industrial, Scientific, and Medical (ISM) radio frequency band. The Sigfox network is a star topology network, specifically designed for the Internet of Things (IoT) applications. It uses an ultra-narrow frequency band, able to penetrate through the objects and cover large distances, making it a perfect choice for various industry-specific applications, such as the sensors networking in agriculture.
Note: Sigfox 2 click is intended to be used in the RCZ2 (North America) and RCZ4 (Asia).
More information about the Sigfox network coverage, and other related information can be found at the official Sigfox site.
Also, if you are looking for a Sigfox click that covers other regions, please check out our other Sigfox click products. |
|
|
|
|
|
|

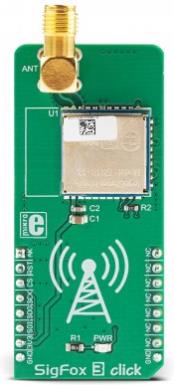

SigFox 3 click is a device which carries the SN10-13, a fully integrated Sigfox™ certified module by InnoComm, allowing connection to a low power wide area network (LPWAN) that enables communication utilizing the Industrial, Scientific, and Medical (ISM) radio frequency band. The Sigfox network is a star topology network, specifically designed for the Internet of Things (IoT) applications. It uses an ultra-narrow frequency band, able to penetrate through the objects and cover large distances, making it a perfect choice for various industry-specific applications, such as the sensors networking in agriculture.
Note: Sigfox 3 click is intended to be used in the RCZ3 (Japan).
More information about the Sigfox network coverage, and other related information can be found at the official Sigfox site.
Also, if you are looking for a Sigfox click that covers other regions, please check out our other Sigfox click products. |
|
|
|
|
|
