The GPS click (previously EasyGPS) board is a compact solution for adding GPS functionality to your device. It features the LEA-6S, high performance u-blox 6 positioning engine. Board is organized in mikroBUS form factor. Communication is done using UART or USB connection.
This board can be operated at 3.3V only.
Can be used without a microcontroller by connecting straight to a PC via USB. |
|
|
|
|
|
|
GPS2 Click is an add-on board in the mikroBUS form factor. It includes the Quectel L30 GPS module as well as an SMA antenna connector. The module has an advanced jamming suppression mechanism and innovative RF architecture ensuring maximum GPS performance. It supports location, navigation and industrial applications including autonomous GPS C/A, SBAS (WAAS or EGNOS) and A-GPS. The board is designed for use with active antennas. SMD jumpers are provided in three groups for selecting between UART, I2C and SPI communication lines. Another SMD jumper is used to select between 3.3V or 5V power supply. |
|
|
|
|
|
|
GPS3 click carries Quectel's L80 GPS module, a high-sensitivity ultra slim GPS module with a patch antenna. The module incorporates several technologies that enhance the GPS performance. EASY Technology ensures that L80 can calculate and predict orbits automatically using data stored in its internal flash memory. AlwaysLocate technology adaptively adjusts the on/off time to balance between positioning accuracy and power consumption. The Automatic antenna switching function enables switching between the internal patch antenna and the external active antenna, keeping positioning during the switching process. |
|
|
|
|
|
|
GPS 4 click carries the L70 compact GPS module from Quectel. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: PWM, AN, RST. |
|
|
|
|
|
|
Nano GPS click carries the Nano Hornet module from OriginGPS. It's the smallest GPS module with an integrated patch antenna (measuring just 10x10x3.8mm). Hence, Nano GPS click is also the smallest of all MikroElektronika GPS click boards. Despite its size, it offers superior sensitivity and outstanding performance, with time to first fix (TTFF) of less than 1 second, accuracy of approximately 1m, and tracking sensitivity down to -163dBm. |
|
|
|
|
|
|
GNSS click carries Quectel’s L86 GNSS module with a patch antenna along with an external antenna connector. GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems. Excluding its wider applicability, the L86 module is similar to the L80 module (used on GPS3 click). It includes the same set of technologies: automatic prediction of orbits from internally stored data, adaptive adjusting of on/off time to balance between positioning accuracy and power consumption etc. The board uses a 3.3V power supply. |
|
|
|
|
|
|
GNSS2 click carries Quectel's L76 module and an SMA antenna connector. GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems. The L76 module integrates performance-enhancing Quectel technologies. It can automatically predict satellite orbits from data stored in its internal flash (EASY technology) and it can adaptively adjust its on/off time to balance between positioning accuracy and power consumption (AlwaysLocate technology). GNSS2 click also features a voltage translator. Using the onboard jumper you can switch both the power supply and logic levels from 3.3V to 5V. |
|
|
|
|
|
|
GNSS3 click carries SIMCom's SIM33ELA standalone GNSS module with an integrated antenna (as well as a connector for an external one). GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems. The SIM33ELA module has MTK's high sensitivity navigation engine. It features EPO orbit prediction, AGPS and SBAS ranging (WAAS, EGNOS, GAGAN, MSAS). GNSS3 click communicates with the target MCU through mikroBUS UART pins (RX, TX), with additional functionality provided through RST and INT pins. The board uses a 3.3V power supply. |
|
|
|
|
|
|
GNSS 4 click carries SAM-M8Q patch antenna module from u-blox.
The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over I2C or UART interface. |
|
|
|
|
|
|
Determine your current position with GNSS 5 click. It carries the NEO-M8N GNSS receiver module from u-blox. GNSS 5 click is designed to run on a 3.3V power supply. The click communicates with the target microcontroller over I2C or UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: RST, INT, PWM. |
|
|
|
|
|
|

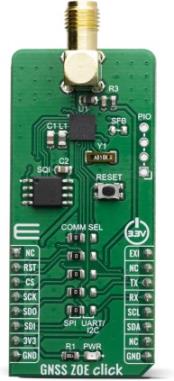

GNSS ZOE Click is a evaluation board for ultra small ZOE-M8Q GNSS SiP receiver from u-blox. Thanks to u-blox's advanced algorithms and complete GNSS solution, the GNSS ZOE click meets even the most stringent requirements in versatile industrial and consumer applications, such as UAVs, vehicles and assets tracking, navigation devices based on GPS and GLONASS, road navigation devices, public transport, wearable devices, and many more. GNSS ZOE is mainly targeted for applications that require a small size device without compromising performance.
GNSS ZOE click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
|
|
|
|
|
|
|
GNSS RTK Click is a compact add-on board used to enhance the precision of position data derived from satellite-based positioning systems. This board features the ZED-F9P, a multi-band GNSS module with integrated multi-band Real Time Kinematics (RTK) technology offering centimeter-level accuracy from U-blox. This module concurrently uses GNSS signals from all four GNSS constellations (GPS, GLONASS, Galileo, and BeiDou), and provides multi-band RTK with fast convergence times, reliable performance, and easy integration. It also includes moving base support, allowing both base and rover to move while computing a centimeter-level accurate position between them. This Click board™ is suitable for machine control, ground robotic vehicles, and high precision unmanned aerial vehicles (UAV) applications.
GNSS RTK Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
|
|
|
|
|
|
|
The SmartGPS is a development tool that will help you understand GPS technologies. Connect GPS (Global Positioning System) to your PC or development board using the LEA-6S module. The intuitive design of SmartGPS guides you through the process of learning GPS.
The board features a switching power supply and backup battery, and can be operated at either 3.3V or 5V.
Can be used without a microcontroller by connecting straight to a PC via USB. |
|
|
|
|
|
