Power (Go to Parent Category)
Boards for regulating / translating voltage, charging batteries, etc.

(i) Tip:The filter on the left can be used to narrow down the number of items in this category.
  • Items
-
3.3V-5V Voltage Converter

General
3.3V-5V Voltage Converter The 3.3V-5V Voltage Converter Board features a monolithic control circuit MC34063A containing the primary functions required for DC-to-DC converters. This enables a voltage translation from 3.3V to 5V with 250mA maximum output current. The board components are clearly marked so that there is no need for an additional schematic.
R295  Qty:
Price ex. VAT. Est. Weight: 5g. Stock: Lead-time applicable [i]. mikroE Icon
-
3.3V Reg

General
3.3V Reg The 3.3V Reg Board features the MC33269DT-3.3 voltage regulator that consists of a 1.0V dropout composite PNP-NPN pass transistor, current limiting and thermal shutdown. This board offers embedded designers an economical solution for precision voltage regulation, while keeping the power losses to a minimum.
R205  Qty:
Price ex. VAT. Weight: 3g. Stock: Lead-time applicable [i]. mikroE Icon
-
5V / 3.3V Reg

General
5V / 3.3V Reg The 5V / 3.3VReg Board is an accessory board that includs both 5V and 3.3V on-board regulators. These regulators are used to reduce an input voltage from 8-16V AC/DC to 5V and 3.3V DC.
R295  Qty:
Price ex. VAT. Est. Weight: 10g. Stock: Lead-time applicable [i]. mikroE Icon
-
Uni-Reg

General
Uni-Reg The UNI-REG Board features a Step-Down Voltage Regulator LM2576 that enables voltage to change from 7-23V AC (or 9-32V DC) to 5V, 4V, 3.3V, 2.7V or 1.8V. The board components are clearly marked, which makes the connection easier.
R470  Qty:
Price ex. VAT. Weight: 30g. Stock: Lead-time applicable [i]. mikroE Icon
-
USB Reg

General
USB Reg USB REG Board is a simple and compact solution for powering your prototype device directly from USB. Board provides 5V directly from USB connector, but also features MC33269DT power regulator circut for creating 3.3V reference.
R150  Qty:
Price ex. VAT. Est. Weight: 5g. Stock: Lead-time applicable [i]. mikroE Icon
-
VREG click

mikroBUS
VREG click VREG click is a digitally controlled DC Voltage regulator in mikroBUS™ form factor. The design is based on the well-known LM317 circuit, with the addition of a 12-bit DAC, 12-bit ADC, and an Operational Amplifier. Two pairs of screw terminals serve as inputs and outputs. The LM317 IC is a reliable regulator with typical line regulation of 0.01% and load regulation of 0.1%. It also has internal short-circuit current limiting and thermal overload protection. The circuit regulates voltage by turning all input/output difference into heat (effectively dissipating all the excess power). If it gets too hot it may damage the board or cause unexpected behaviour. Because of that, the board’s operating range is defined by two factors. 1) maximum input voltage and current (should not exceed 20V/1A); and 2) maximum wattage arising from current and I/O voltage difference (should not exceed 2W, measured as I x (Input V - Output V). The board also carries a MOSFET chip to toggle the output on and off. VREG click communicates with the target board MCU through the SPI interface (CS, SCK, MISO, MOSI). The board can use either a 3.3V or a 5V power supply. It is also possible to use the board’s power supply as the Input, by resoldering the onboard INPUT SEL jumper.
R580  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
VREG 2 click

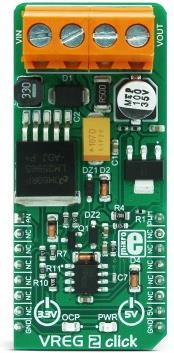

VREG 2 click

VREG 2 click is a voltage regulator click, with outstanding performances. It has a steady output voltage with the ripple lower than 5mV, short circuit protection with the LED indicator, and high efficiency with minimal power dissipation. The main output regulation element is the LM317, a well-established adjustable voltage regulator, often used in various electrical designs, for its outstanding regulation characteristics. The supporting electronics allows for the reduced dissipation, voltage regulation and short-circuit indication. It consists of the LM358, a dual operational amplifier (op-amp) with high voltage gain, and the LM2596 buck converter. The VREG 2 click can be used with the input voltage in the range of 10V to 35V, and output voltage in the range of 2.5V to 15V, with current up to 600mA.

R500  Qty:
Price ex. VAT. Weight: 32g. Stock: Lead-time applicable [i]. mikroE Icon
-
USB Charger (Li-Ion / Li-Po)

General
USB Charger (Li-Ion / Li-Po) USB Charger Board is a full-featured battery charger with MCP73832, miniature single-cell, fully integrated Li-Ion, Li-Polymer charge management controller. Board is very small and can be easily integrated in your prototype as well as in your final product.
R245  Qty:
Price ex. VAT. Est. Weight: 5g. Stock: Lead-time applicable [i]. mikroE Icon
-
VOLT (USB Li-Po Charger)

General
VOLT (USB Li-Po Charger) The VOLT is a smart USB Li-Polymer battery charger. It features power management circuitry including the MCP73832 charge-controller, which can charge the battery from USB power. Using the provided screw terminals (VSYS and GND) the VOLT can also be used to power your target device from battery (Vbat) or USB (5V). When USB is connected the battery is charging and VSYS outputs 5V. The Power LED is active when either USB or the battery is connected, while the Charge LED lights up only when the battery is charging. Additional screw terminals with STAT and SENSE lines enable battery charge monitoring.
R340  Qty:
Price ex. VAT. Est. Weight: 10g. Stock: Lead-time applicable [i]. mikroE Icon
-
Charger click

mikroBUS
Charger click Charger click carries both a battery charger controller and a battery charge monitor, along with a battery connector. The smaller chip is MCP73831, a miniature single-cell Li-Ion and Li-Polymer charge management controller with a programmable charge current from 15 to 250 mA. The larger IC is DS2438, a smart battery monitor which integrates a temperature sensor, a timer, an ADC to measure the battery voltage and current, and a current accumulator that monitors the total amount of current going into and out of the battery. Charger click communicates with the target MCU through a 1-Wire interface. Charger click is designed to use a 5V power supply.
R520  Qty:
Price ex. VAT. Est. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
Charger 2 click

mikroBUS
Charger 2 click

Charger 2 click is a LiPo/Li-Ion battery charger with the additional monitoring IC onboard. This Click board™ as a whole, offers unpreceded battery charging and monitoring solution for 3.7V LiPo/Li-Ion batteries, with the capacity measurement/gas gauge function, for up to 7000 mAh. It provides measurement data via the I2C interface and two signaling LEDs on the Click board™ itself. It features two dedicated ICs - one for charging the battery and one for monitoring its status. The charging function is performed by the STBC08, a standalone linear battery charger IC, while the monitoring of the critical battery parameters is done by the STC3100, a battery monitor IC with Coulomb counter/gas gauge.

R410  Qty:
Price ex. VAT. Weight: 24g. Stock: Lead-time applicable [i]. mikroE Icon
-
Charger 5 click

mikroBUS
Charger 5 click

Charger 5 click is designed to charge Lithium-Ion and Lithium-Polymer batteries. Besides the overvoltage and undervoltage protection, reverse discharge and overtemperature protection, automatic recharge and end of charge safety timer, the click also introduces the fast charging feature to the line of click board™ charger products. Charger 5 click uses a programmable digital potentiometer for adjusting the fast charging constant current, which can be set from 100 mA to 950 mA, via the SPI interface.

Charger 5 click carries the MCP73113, a single-cell Li-Po/Li-Ion battery charge IC from Microchip, along with the digital potentiometer chip labeled as MCP4161, from the same company. This click can be used to easily and securely charge and fast-charge batteries on many different devices that use 3.7V Li-Po/Li-Ion batteries.

R390  Qty:
Price ex. VAT. Weight: 24g. Stock: Lead-time applicable [i]. mikroE Icon
-
Charger 8 Click

mikroBUS
Charger 8 Click

Charger 8 Click is an intelligent Li-Ion battery charger, system power manager, and a battery fuel gauge Click board™. As a system power distributor, it can supply up to 2A to a connected load. By utilizing an externally connected power supply, it can charge a single-cell Li-Po/Li-Ion battery. A dedicated power management IC with the optimized smart power control allows very efficient management of the available power. An additional battery fuel gauge IC with proprietary battery aging prediction algorithm and time-to-empty / time-to-full estimation, offers the complete diagnostic related to the battery charging process.

Charger 8 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R580  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-

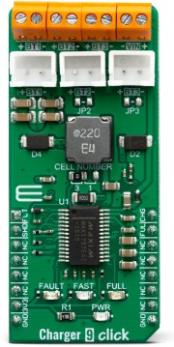

Charger 9 Click

mikroBUS
Charger 9 Click

Charger 9 click is a Li-Ion (Li+, Li-Po) battery charger, capable of charging one, two or three battery cells. It is based on the MAX1757, an integrated Li+ battery charger with many features that allow safe and reliable charging. This IC has an internal switching-mode regulation with input current limiting, allowing it to use an external power supply from a cheap wall adapter, rated up to 14V. An extensive state machine of the MAX1757 IC with two additional timers regulates the charging process, ensuring safe and reliable battery charging process. In the case of an error, the charging process is stopped, and the fault is reported both over the LED and over the mikroBUS™ pin.

Charger 9 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R580  Qty:
Price ex. VAT. Weight: 23g. Stock: Lead-time applicable [i]. mikroE Icon
-
Charger 11 Click

mikroBUS
Charger 11 Click

Charger 11 Click is a LiFePO4 (lithium iron phosphate) battery charger. This click can be used for Low-Cost LiFePO4 battery chargers, or Power Tools, toys, backup energy storage solutions, etc. Charger 11 is based on MCP73123T controller which has some extra features enabling charging without too much hassle. This click board has charging current control which uses SPI interface through MCP4161 IC, which is an 8-bit digital potentiometer. For battery voltage monitoring this click board uses MCP3221A5T analog to digital converter through I2C interface. On the board, there is a Power LED and two extra LED's which can be used for charging indications.

Charger 11 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R410  Qty:
Price ex. VAT. Weight: 21g. Stock: Lead-time applicable [i]. mikroE Icon
-
Charger 12 Click

mikroBUS
Charger 12 Click

Charger 12 Click is a single lithium-ion (Li+) cell or three-cell NiMH/NiCd battery charger. This click can be used for Low-Cost Li-Ion battery chargers, or Power Tools, toys, backup energy storage solutions, etc. Charger 12 click is based on MAX1501 controller which has some extra features enabling charging without too much hassle. This click board has charging current control which uses SPI interface through MCP4161 IC, which is an 8-bit digital potentiometer. On the board, there is a Power LED and two extra LED's which can be used for charging indications.

Charger 12 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R370  Qty:
Price ex. VAT. Weight: 18g. Stock: Lead-time applicable [i]. mikroE Icon
-
Charger 13 Click

mikroBUS
Charger 13 Click

Charger 13 Click is a single lithium-ion (Li+) cell battery charger. This click can be used for Low-Cost Li-Ion battery chargers, or Power Tools, toys, backup energy storage solutions, etc. Charger 13 click is based on the RT9532GQW battery charger IC, which has some extra features enabling charging without too much hassle. This IC has an internal switching-mode regulation with input current limiting, allowing it to use an external power supply from a cheap wall adapter, rated up to 28V. On the board, there is a Power LED and two extra LED's which can be used for charging indications.

Charger 13 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R370  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
3.3V-5V Voltage Translator

IDC10
3.3V-5V Voltage Translator The 3.3V-5V Voltage Translator Board features the LVCC3245A voltage translators, and enables bi-directional communication between 3.3V and 5V systems. Jumpers allow you to choose the communication direction for each of the 8 lines (communication is only possible in a single direction on each line). A screw-terminal is provided for optionally providing power to the 5V system.
2 x IDC10 cables are included with the board.
R490  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
5V-3.3V Voltage Translator

IDC10
5V-3.3V Voltage Translator The 5V-3.3V Voltage Translator Board features the LVCC3245A voltage translators, and enables bi-directional communication between 5V and 3.3V systems. Jumpers allow you to choose the communication direction for each of the 8 lines (communication is only possible in a single direction on each line). The board also includes a 3.3V regulator, for optionally providing power to the 3.3V system from the 5V one.
2 x IDC10 cables are included with the board.
R490  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
MCP16331 click

mikroBUS
MCP16331 click MCP16331 click functions as a non-inverting buck-boost voltage regulator, a type of switching mode power supply topology that combines the principles of the Buck converter (step-down) and the Boost converter (step-up) in a single circuit. The Buck converter produces a DC output in a range from 0V to just less than the input voltage. The Boost converter produces an output voltage ranging from the same voltage as the input to a level much higher than the input. The MCP16331 click itself produces constant DC voltage on the output rails, which can be set in the code.
R520  Qty:
Price ex. VAT. Weight: 26g. Stock: Lead-time applicable [i]. mikroE Icon
-
MCP16331 INV click

mikroBUS

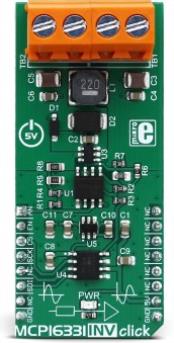

MCP16331 INV click

MCP16331 INV click works as a buck-boost voltage regulator, a switching regulator topology that combines principles of the buck conversion (step-down) and the boost conversion (step-up). A buck converter outputs voltage that is smaller than the input voltage (steps down the input voltage). A boost converter outputs voltage that is greater than the input voltage (steps up the input voltage). By combining these two topologies, MCP16331 INV click is able to output a regulated DC voltage, which can be set in the code, for input voltage both greater and less than the output voltage.

A major difference between the MCP16331 INV click and another click with the same name - MCP16331 click, is that this click works in an inverting configuration, providing an output voltage which is negative in respect to the GND level. Negative voltage is often used in symmetrical power supply configurations - for powering up operational amplifiers and similar devices that require such type of power supply. This feature, as well as the excellent power switching efficiency, overtemperature protection, and a clean regulated voltage output makes this device an ideal solution for powering up any application that demands a negative voltage power supply.

R520  Qty:
Price ex. VAT. Weight: 32g. Stock: Lead-time applicable [i]. mikroE Icon
-
MCP73213 click

mikroBUS
MCP73213 click MCP73213 click carries the MCP73213 dual-cell Li-Ion/Li-Polymer battery charge management controller with input overvoltage protection from Microchip. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over SPI.
R450  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
MCP73871 click

mikroBUS
MCP73871 click

MCP73871 click is a fully integrated solution for system power delivery and Li-Po/Li-Ion battery charge management. The click features many Li-Po/Li-Ion battery charging optimizations, used to maximize the battery life. Some of the MCP73871 click features include constant current and voltage charging algorithms, overvoltage protection, automatic end of charge control, automatic recharge feature, preconditioning for depleted cells and thermal management.

All these features, coupled with the ability to simultaneously power up the system load and charge the connected battery, make this click a perfect solution for powering up many different battery-operated builds and projects, which use a rechargeable Li-Po/Li-Ion battery, but can also switch to an external power source.

R390  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
MIC24045 click

mikroBUS
MIC24045 click MIC24045 click carries MIC24045 I2C-programmable, high-efficiency, wide input range, 5A synchronous step-down regulator from Microchip. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over I2C interface with additional functionality provided by the following pins on the mikroBUS™ line: RST, INT.
R330  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-

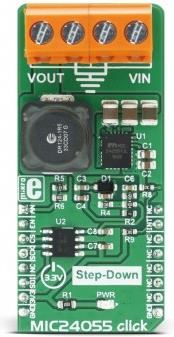

MIC24055 click

mikroBUS
MIC24055 click

MIC24055 click is the buck regulator that can deliver continuous output current up to 8A and can step down voltages from up to 19V which makes this click board easy to use with many power sources commonly available. The amount of current it can deliver and the steady, ripple-free regulated voltage, make this click board a perfect choice for powering up devices which require high current, regulated power supply, such as servers and workstations, routers, telecom equipment and every other electronic device with similar power demands.

MIC24055 click is equipped with the MIC24055, high-efficiency buck regulator from Microchip. This IC can work with the wide range of input voltages, from 4.5V up to 19V. The regulated voltage at the output can be set from 1V to 4.8V by the means of the feedback (FB) pin and the second chip on board - MCP4921, a single channel 12-bit DAC by Microchip, equipped with the SPI interface. By programming the output of this DAC through the SPI interface routed to the mikroBUS socket pins, it is possible to easily set up the output voltage of the buck regulator. MikroElektronika libraries make it possible to perform this task easily, as seen in the example application.

R700  Qty:
Price ex. VAT. Weight: 35g. Stock: Lead-time applicable [i]. mikroE Icon
-
MIC23099 click

mikroBUS
MIC23099 click MIC23099 click carries the MIC23099, a single AA/AAA cell step-down/step-up regulator with battery monitoring. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over the following pins on the mikroBUS™ line: CS, INT.
R700  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
MIC33153 click

mikroBUS
MIC33153 click

MIC33153 click is a DC-DC adjustable step-down (buck) converter that is designed to deliver a substantial amount of current to very demanding loads, with the voltage output up to 3.5V. The ultra-fast transient response and the ripple free output voltage are some of the main features of this DC-DC step-down converter. The proprietary HyperLight Load™ technology allows very efficient step-down conversion even for very light loads.

This adjustable DC-DC step-down converter click board™ has a very specific field of applications in which it gives the best results. Due to its ripple free voltage output and very high conversion efficiency, it is designed to be used as the power supply for the various portable GPS devices, mobile handsets, portable media and mp3 players, wireless LAN cards and similar applications that demand very clean power supply and high step down DC-DC conversion efficiency factor.

R500  Qty:
Price ex. VAT. Weight: 23g. Stock: Lead-time applicable [i]. mikroE Icon
-
LEM click

General
LEM click LEM click carries the LTS 6-NP current transducer and MCP3201 ADC converter. The click can measure AC and DC current with exceptional speed, up to 200 KHz. LEM click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over SPI interface, or directly with analog output.
R1,300  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
BUCK click

mikroBUS
BUCK click BUCK click is a buck switching regulator that accepts a wide input voltage range of up to 40V and steps it down to 3.3V or 5V. The click carries the LT3976 40V, 5A, 2MHz step-down switching regulator with 3.3µA quiescent current. BUCK click communicates with the target microcontroller over the following pins on the mikroBUS™ line: PWM, INT, RS, CS.
R860  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
Buck 2 click

mikroBUS
Buck 2 click

Buck 2 click is a powerful step down DC-DC switching regulator. It gives a high precision regulated voltage at its output and it can handle an ample amount of current. Buck 2 click is highly configurable - the output voltage, maximum current limiting, and the switching frequency parameters can be controlled via the IC pins routed to the mikroBUS™ socket, providing a simple and secure connection to the host MCU.

The input voltage can range from 4.5V to 19V and the output can be set to work in several discrete steps, ranging from 0.7V to 3.3V. Features, such as the wide range of input voltages, pin configurable working parameters, internal soft start, thermal shutdown, hiccup mode short-circuit protection and high switching efficiency, make this device a perfect choice for any step-down application which demands reasonably high current and accurate voltage regulation with clean and ripple-free low voltage power supply - such as the embedded electronic devices, servers, routers, data storage devices, low power ICs and similar.

R620  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
Buck 3 click

mikroBUS
Buck 3 click

Buck 3 click is a very advanced synchronous step-down (buck) converter, which is designed to deliver noise and ripple-free voltage to highly sensitive applications, such as FPGA and high-performance DSP platforms. The onboard step-down converter IC integrates low RDSON MOSFETs, that allow high efficiency, and thus high current on the output - up to 8A. Buck 3 operates at 800kHz, allowing an optimal balance between the efficiency and the size of the used components. DCM mode ensures that the efficiency is maintained even while working with light loads.

R520  Qty:
Price ex. VAT. Weight: 30g. Stock: Lead-time applicable [i]. mikroE Icon
-
Buck 5 click

mikroBUS

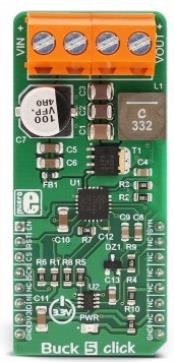

Buck 5 click

Buck 5 click is a high-efficiency buck (step-down) DC/DC converter, which can provide digitally adjusted step-down voltage on its output while delivering a considerable amount of current. Buck 5 click accepts a wide voltage range on its input - from 5V to 30V. The output voltage may be adjusted via the SPI interface, in the range from 0.9V to approximately 5.5V. This Click board™ utilizes the MAX17506, an integrated high efficiency, synchronous step-down DC/DC converter with internal feedback compensation, from Maxim Integrated. In addition, the MAX5401 digital potentiometer with SPI Interface is used on the feedback loop allowing digital control of the output voltage.

R700  Qty:
Price ex. VAT. Weight: 33g. Stock: Lead-time applicable [i]. mikroE Icon
-
BUCK 6 click

mikroBUS
BUCK 6 click

BUCK 6 click is an advanced synchronous DC-DC step down (buck) converter, with a very wide input voltage range and reasonably high output current. The digitally adjustable output voltage, overcurrent protection, overtemperature protection, soft start, adjustable PWM switching frequency, and very high efficiency, are just some of its many features that make this click an ideal solution whenever there is a requirement to step down the voltage. Also, an additional SYNC input allows tweaking of the internal clock signal, so it can be synchronized with the external clock signal when more than one device is used.

R640  Qty:
Price ex. VAT. Weight: 30g. Stock: Lead-time applicable [i]. mikroE Icon
-
BUCK 7 click

mikroBUS

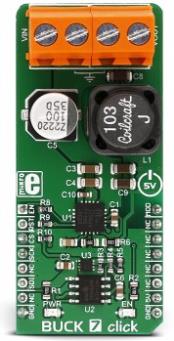

BUCK 7 click

Buck 7 click is a high-efficiency buck (step-down) DC-DC converter, which can provide digitally adjusted step-down voltage on its output while delivering up to 3.5A of current. Buck 7 click accepts a wide voltage range on its input - from 5V to 35V. The output voltage may be adjusted via the SPI interface, in the range from 3.3V to approximately 90% of the input voltage. This Click board™ utilizes the MAX17504, an integrated high efficiency, synchronous step-down DC-DC converter with internal compensation, from Maxim Integrated. In addition, to allow digital control of the output voltage, the MCP4921, a 12bit D/A converter with SPI Interface is used on the feedback loop.

R640  Qty:
Price ex. VAT. Weight: 35g. Stock: Lead-time applicable [i]. mikroE Icon
-

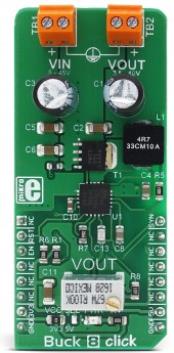

Buck 8 click

mikroBUS
Buck 8 click

Buck 8 click is a high efficiency, wide voltage range, and high current synchronous step down (buck) DC-DC converter, featuring two enhanced modes that can be used to drive lighter loads with increased efficiency. The output voltage can be adjusted by the multi-turn trimmer potentiometer. Since the output voltage is set mechanically, it will retain the set value, even after the restart. Very high efficiency results with the reduced power dissipation, thus allowing reasonably high power to be delivered to the load, connected to the output terminal. Internal feedback compensation across the whole voltage range allows lower number of external components.

R620  Qty:
Price ex. VAT. Weight: 30g. Stock: Lead-time applicable [i]. mikroE Icon
-
Buck 9 Click

mikroBUS
Buck 9 Click

Buck 9 Click is a high-efficiency step-down converter which provides a highly regulated output voltage derived from the connected power source, rated from 4V to 36V. The regulated output voltage can be selected between two values: 3.3V and 5V. These are voltage values ??that are most commonly used in many embedded designs. Buck 9 click is based around an integrated DC-DC converter, labeled as MP9943. Due to its high efficiency, MP9943 allows the Click board™ to easily deliver up to 3A of current. The MP9943 is very reliable, offering over-current and under-voltage protection, as well as a thermal shutdown.

Buck 9 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R500  Qty:
Price ex. VAT. Weight: 26g. Stock: Lead-time applicable [i]. mikroE Icon
-
Buck 10 Click

mikroBUS
Buck 10 Click

Buck 10 Click is a high-efficiency step-down converter which provides a highly regulated output voltage derived from the connected power source, rated from 4V to 18V. The regulated output voltage can be selected between two values: 3.3V and 5V. These are voltage values ??that are most commonly used in many embedded designs. This click is based around an integrated DC-DC converter, labeled as MPM3632C. Due to its high efficiency, MPM3632C allows the Click board™ to easily deliver up to 3A of current. The MPM3632C is very reliable, offering over-current and over-voltage protection, as well as a thermal shutdown.

Buck 10 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R370  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
Buck 11 Click

mikroBUS
Buck 11 Click

Buck 11 click is a high-efficiency step-down converter which provides 3.3V on its output, derived from the connected power supply voltage, in the range from 4.2V to 60V. Buck 11 click is based on the LMR36015, a highly efficient DC-DC step-down converter. In addition, Buck 11 click offers monitoring the stability of the output voltage by employing an additional A/D converter circuit. Due to its high efficiency, LMR36015 allows the Click board™ to easily deliver up to 1.5A of current. The efficiency for lighter loads is optimized by using the PFM mode. It features a HotRod™ package which enables a low noise performance, high efficiency, and very compact size.

Buck 11 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R500  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-

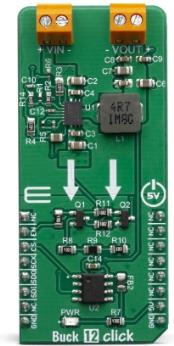

Buck 12 Click

mikroBUS
Buck 12 Click

Buck 12 Click is a high-efficiency step-down converter which provides 3.3V on its output, derived from the connected power supply voltage, in the range from 4.2V to 18V. Buck 12 click is based on the MPQ8632, a highly efficient DC-DC step-down converter. In addition, Buck 12 click offers monitoring the stability of the input and output voltage by employing an additional A/D converter circuit. Due to its high efficiency, MPQ8632 allows the Click board™ to easily deliver up to 4A of current. It features a package which enables a low noise performance, high efficiency, and very compact size, while maintaining compability with higher current ICs from the family.

Buck 12 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R500  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-

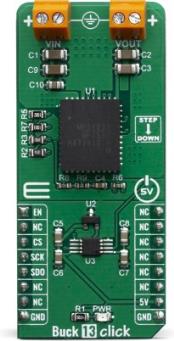

Buck 13 Click

mikroBUS
Buck 13 Click

Buck 13 Click is a high-efficiency step-down converter which provides a highly regulated output voltage derived from the connected power source, rated from 4.5V to 5.5V. The regulated output voltage is 3.3V, the most common choise for various embeded applications. Buck 13 click is based around an integrated DC-DC converter, labeled as MPM3530. Due to its high efficiency, MPM3530 allows the Click board™ to easily deliver up to 3A of current. The MPM3530 is very reliable, offering over-current and over-voltage protection, as well as a thermal shutdown.

Buck 13 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R700  Qty:
Price ex. VAT. Weight: 22g. Stock: Lead-time applicable [i]. mikroE Icon
-
Buck 14 Click

mikroBUS
Buck 14 Click

The Buck 14 Click is a Click board™ based around the BMR4613001/001, a PoL regulator from Flex. It's high-efficiency step-down converter which provides a highly regulated output voltage derived from the connected power source, rated from 4.5 to 14V. The regulated output voltage can be selected between 0.6V and 5V. The Buck 14 click due to high efficiency of BMR4613001/001 allows the Click board™ to easily deliver up to 12A of current with maximum of 60W of power and high efficiency, typ. 96 % at 12Vin, 5Vout and 80% load.

The Buck 14 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R1,300  Qty:
Price ex. VAT. Weight: 22g. Stock: Lead-time applicable [i]. mikroE Icon
-
Boost click

mikroBUS
Boost click Use our new boost converter to step up the voltage in your next project. Boost click carries Microchip's MIC2606, a 2MHz, PWM DC/DC boost switching regulator available in a 2mm x 2mm MLF® package. Boost click provides an adjustable output voltage through the onboard DAC that drives the FB pin of the MIC2606 to set desired output voltage. The click also has an onboard ADC that converts output voltage and sends its digital value through SPI pins of mikroBUS™ to the microcontroller.
R500  Qty:
Price ex. VAT. Weight: 30g. Stock: Lead-time applicable [i]. mikroE Icon
-
BOOST 2 click

mikroBUS
BOOST 2 click

BOOST 2 click is a DC-DC step-up (boost) regulator that has a fixed 5V output, which can be obtained from any low voltage input - such as NiCd, NiMH or one cell Li-Po/Li-Ion batteries. This click features very high efficiency, low noise and anti-ringing voltage output and inrush current limiting with the internal soft-start, as well as true disconnect option for minimized power drain, when in shutdown mode.

These features allow this device to be used as the power source for various battery-operated devices, especially for those which require 5V, such as the PIC® family of microcontrollers, various portable embedded electronic devices, handheld instruments, GPS modules, or various battery-operated USB emergency backup chargers. Very good switching efficiency factor ensures prolonged battery life for any application this device is used in.

R370  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
Boost 4 click

mikroBUS
Boost 4 click Boost 4 click carries the TPS61230A, a high efficiency fully integrated synchronous boost converter from Texas Instruments. The click is designed to run on a 3.3V power supply. Boost 4 click drives the target chip through the digi pot, which has SPI communication with the microcontroller on the system.
R410  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
Boost 6 Click

mikroBUS
Boost 6 Click

The Boost 6 Click is a Click board™ which features the TPS55332-Q1, a monolithic high-voltage switching regulator with integrated 3-A, 60-V power MOSFET. The device can be configured as a switch mode step-up power supply with voltage supervisor. This Click board™ can be used for applications regarding lighting, battery powered and automotive applications.

The Boost 6 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R580  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
Buck-Boost click

mikroBUS
Buck-Boost click Buck-Boost click™ features LTC3129-1, a buck-boost DC/DC conversion integrated circuit from Linear Technology®. The click supports a wide input voltage range and can output eight discrete regulated output voltage levels, selectable by the digital output voltage selection pins, ranging from 2.5V to 15V. The main features of this converter are its very low noise and low ripple at the output, as well as very high regulating efficiency and low quiescent current. Those features make the Buck-Boost click a perfect solution for the regulators and post-regulators for harvested energy, solar panel post-regulators/chargers, rechargeable battery output voltage regulators, wireless low noise applications and similar.
R490  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
Buck-Boost 2 click

mikroBUS
Buck-Boost 2 click

Buck-Boost 2 click is an advanced DC-DC step-down/step-up regulator (buck/boost), which is able to provide regulated 5V on its output, regardless of the input voltage. The input voltage can range from 2.7V up to 40V. The Click board™ provides an ultra-low noise and ripple free regulated output, with transparent switching from buck to boost mode - depending on the input voltage, which produces no discontinuities or switching artifacts, such as transients or subharmonic switching. Selectable switching mode allows optimal power consumption and high power efficiency, for both lighter and heavier loads.

R820  Qty:
Price ex. VAT. Weight: 27g. Stock: Lead-time applicable [i]. mikroE Icon
-
Buck-Boost 3 Click

mikroBUS
Buck-Boost 3 Click

The Buck-Boost 3 click is a voltage converter/regulator, which is able to provide a regulated voltage of 3.3V or 5V on the output, even when the input voltage drops under 3V. This is possible thanks to the ISL85403, a specialized buck-boost voltage converter IC which features an integrated high-side MOSFET and a low-side driver, that can be used to drive an external MOSFET. Buck-Boost 3 click perfectly suited to provide power with regulated voltage for embedded applications, points of load, or to be used as the battery voltage regulator, or in similar general-purpose power applications that require regulated 3.3V or 5V power supply.

It comes in the package which also includes the mikroSDK™ software and a library with all the functions. The Click board™ comes as a fully tested and approved prototype, making it a reliable device ready to use on the development board.

R840  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
PAC1934 click

mikroBUS
PAC1934 click PAC1934 click carries the PAC1934 four channel DC power/energy monitor from Microchip. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over an I2C interface.
R700  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
PAC1921 click

mikroBUS
PAC1921 click

PAC1921 click is a versatile power monitoring and measuring device intended for the high speed, low latency measurements. This device can measure current, voltage or the power of the connected load. PAC1921 click features an integrated average power measurement, it can output the measured properties in the form of a filtered analog voltage level by using 10bit DAC, provides 1x to 128x current binary gain, it has an integrated second order input ADC, automatic zero offset, and all the measured values are available through the serial SMBus/I2C interface.

With its very low margin of error, PAC1921 click is perfectly suited for measurement and monitoring of electrical properties in a wide range of different applications, such as the diagnostic equipment, power supplies, industrial and power management systems, notebook and desktop computers and similar applications where high speed, low latency measurements, and power monitoring is needed.

R410  Qty:
Price ex. VAT. Weight: 24g. Stock: Lead-time applicable [i]. mikroE Icon
-
PAC1954 Click
PAC1954 Click

PAC1954 Click is a compact add-on board that contains an energy monitoring solution. This board features the PAC1954, a four-channel DC power/energy monitor from Microchip Technology. It uses real-time calibration to minimize offset and gain errors with no input filters required for this device. One major feature of the PAC1954 design is a set of digital comparators that allows the user to detect over/under voltage, over/undercurrent, and overpower against user-programmed limits for each channel and generate an alert when the threshold is exceeded. This Click board™ performs power calculations and energy accumulation, enabling energy monitoring with integration periods up to one year or longer.

PAC1954 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R580  Qty:
Price ex. VAT. Weight: 21g. Stock: Lead-time applicable [i]. mikroE Icon
-
LED driver click

mikroBUS
LED driver click LED driver click carries the MCP1662 high-voltage step-up voltage driver from Microchip. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over PWM pin on the mikroBUS™ line.
R370  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
LED driver 2 click

mikroBUS
LED driver 2 click LED driver 2 click carries the MCP1643 - LED constant current regulator, made by Microchip. It is a compact, high-efficiency, fixed frequency, synchronous step-up converter, optimized to drive one LED with the constant current. It can be powered by a two-cell alkaline/NiMH/NiCd battery (2.4V), or via the mikroBUS™ power supply pins. LED Driver 2 click also features 3W high power LED by QT-Brightek. This LED can be dimmed by applying the variable duty cycle PWM signal to the EN pin of the MCP1643 regulator, through the PWM pin of the mikroBUS™. Thanks to its relatively high constant current driving capability and the overvoltage protection on the output, this integrated circuit is perfectly suited for high brightness/power LED applications: portable LED lighting products, LED Flashlight and Head Lamps, Rechargeable Flashlights, General LED constant current applications and so on.
R370  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
LED Driver 3 click

mikroBUS
LED Driver 3 click

Perfect control over RBG LEDs

LED Driver 3 click is an RGB LED driver, capable of driving RGB LEDs with up to 30mA per segment, via the digital I2C interface. It comes with an RGB LED onboard, and is capable of displaying a palette of 32768 colors. It features an integrated circuit with three independent LED driver sections and a programmable gradual dimming control, which gives a smooth dimming effect. Heat dissipation is taken to the minimum, due to a fact that the used driver IC works with up to 94% efficiency.

R370  Qty:
Price ex. VAT. Weight: 30g. Stock: Lead-time applicable [i]. mikroE Icon
-
LED Driver 4 click

mikroBUS
LED Driver 4 click

LED Driver 4 click is a form of a high-efficiency boost converter that is ideally suited for driving an array of white LEDs. The driver has the ability to dim the connected LED array, without producing any noise on the output. The Click board™ is capable of driving a LED array with up to 26V, providing a constant current to the LED segments. The LED segments are connected in series between the output terminals, which results in an even current distribution, thus providing a uniform brightness of each LED. A built-in soft-start function prevents large inrush current. Output open LED circuit, thermal, and undervoltage protection, provide a reliable operation.

R370  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
LED Driver 5 click

mikroBUS
LED Driver 5 click

LED Driver 5 click is a Click board™ capable of driving an array of high-power LEDs with constant current, up to 1.5A. This Click board™ features the TPS54200, a highly integrated LED driver IC, with many useful features. It consists of a synchronous, fixed-frequency buck converter which operates at 600kHz, providing an excellent size/efficiency ratio. LED Driver 5 click can use both analog and PWM control signal for dimming the connected LED array.

It comes in the package which also includes the mikroSDK™ software and a library with all the functions. The Click board™ comes as a fully tested and approved prototype, making it a reliable device ready to use on the development board.

R370  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
LED Driver 6 Click

mikroBUS
LED Driver 6 Click

LED driver 6 Click is a high brightness LED or LED strip driver, designed to be used in tunable Smart Connected Lighting (SCL) applications. It is based on the AL1781, a single-channel PWM dimmable linear LED driver. By utilizing a high-frequency E-flicker free technology with Deep Dimming capability, it can be used in single-channel tunable white SCL applications. The AL1781 IC features the Adaptive Thermal Management scheme, reducing the power dissipation. It also integrates an abundance of protection features for increased reliability: undervoltage, open or short circuit at the output, and thermal protection.

LED driver 6 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R370  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
Solar Energy click

mikroBUS
Solar Energy click

There are many battery chargers and solar energy harvesters out there already, but the Solar energy click has the unique feature - it encompasses both of these devices in a single package. The click uses Texas Instruments BQ25570 - a nano-power high-efficiency boost charger and buck converter device, designed to work with very low power energy harvesting elements, such as the photovoltaic and thermoelectric generators.

The Solar energy click recharges the connected LiPo battery or the onboard 220mF supercapacitor, using the photovoltaic element.This is done by utilizing the BQ25570's charging and power harvesting capabilities and clever nano-power management features. This click can also power up low power consumption devices by using the stored energy, providing a way for continuous power operation of low power devices.

These features make the Solar energy click an ideal solution for powering wireless sensor networks, environment monitoring devices, portable and wearable health monitoring devices and similar low power self-sustained devices.

R640  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
BATT-MAN click

mikroBUS
BATT-MAN click

BATT-MAN click is a very versatile battery operated power manager. When powered via mikroBUS™, it will charge the connected Li-Ion/Li-Po 3.7V battery, while providing the output voltage on all its outputs at the same time. The interesting feature of this device is that it can provide additional current to the connected load if the current provided from the mikroBUS™ socket is not enough. This is possible by utilizing the connected battery and by employing intelligent power routing algorithms of BATT-MAN click.

This click has several output voltage options - it can charge the connected battery from the mikroBUS™ power rails and it is very efficient when it comes to using 5V rail of mikroBUS™. It also has an EN Vout switch (SW1) that is used to enable the BATT-MAN click power outputs, even when the click is not connected to mikroBUS™. This allows for the click board™ to be used as the standalone battery-powered voltage regulator. BATT-MAN click can be used as a very efficient 5V battery charger and as a power supply for various portable devices and applications.

R640  Qty:
Price ex. VAT. Weight: 30g. Stock: Lead-time applicable [i]. mikroE Icon
-
BATT-MON Click

mikroBUS
BATT-MON Click

BATT-MON Click is a very versatile, high accuracy, multiple-chemistry battery gauge for applications single-cell batteries. It can be used for various applications, ranging from smartphones, notebook / laptops, power tools, vacuums, to energy storage systems (ESS), while providing the output voltage at the same time. The interesting feature of this device is that it can provide additional current to the connected load if the current provided from the mikroBUS™ socket is not enough. This is possible by utilizing the connected battery and by employing intelligent power routing algorithms of BATT-MON click.

The Click board™ is supported by the mikroSDK compliant library, which includes functions that simplify software development. The Click board™ comes as a fully tested product, ready to be used on a system equipped with mikroBUS™.

R330  Qty:
Price ex. VAT. Weight: 18g. Stock: Lead-time applicable [i]. mikroE Icon
-
UPS click

mikroBUS
UPS click

UPS click is a supercapacitor charger click that provides continuous power for a load connected to the output terminals. It also provides a temporary backup power supply in cases when the main power supply is abruptly disconnected - hence its name - UPS click. Besides backup function, it also provides a power for the applications with high peak power requirements, such as LED flashes, PCMCIA TX bursts, HDD bursts, GPRS/GSM transmitters and similar. UPS click uses two 3.3F supercapacitors connected in series, which are used as a temporary power storage banks.

R600  Qty:
Price ex. VAT. Weight: 30g. Stock: Lead-time applicable [i]. mikroE Icon
-
Nano Power click

mikroBUS
Nano Power click

Nano Power click is a boost (step-up) DC-DC converter click with extremely high efficiency and very low input voltage, aimed at the low power IoT market and battery-powered sensors and other devices. The input voltage can be very low: the conversion will start for voltages down to 0.95V, providing 5V to the connected load. Once started, the input voltage can drop as low as the 0.4V, depending on the connected load. The onboard DC-DC converter IC uses the pulse frequency modulation control scheme (PFM), that allows high efficiency and low power consumption for a wide range of output currents.

R265  Qty:
Price ex. VAT. Weight: 23g. Stock: Lead-time applicable [i]. mikroE Icon
-
Nano Power 2 click

mikroBUS
Nano Power 2 click

Nano Power 2 click is a very low power voltage comparator, aimed at portable and battery-powered applications. It allows detecting a difference of two voltage potentials, applied on two input pins. The device can detect differences very precisely, avoiding oscillations that can occur when both input voltages are equal by employing an internal hysteresis. Nano Power 2 click offers a choice to select one of the input voltages from the internal fixed reference of 1.2V, or by setting both input voltages by the onboard potentiometers.

R265  Qty:
Price ex. VAT. Weight: 26g. Stock: Lead-time applicable [i]. mikroE Icon
-
Driver click

mikroBUS
Driver click

Driver click features an IC with seven integrated high-current sink drivers, which can be used to drive a wide range of loads via simple parallel interface. These integrated drivers use high-efficiency MOSFETs for improved thermal performance. The DRV777 integrated motor and relay driver IC from Texas Instruments is the main active element of this Click board™. It is ideally suited for driving motors, relays, and similar inductive loads, as it features an internal free-wheeling diode for inductive kickback protection, on every channel. It operates with voltages up to 20 V, and by combining all the channels, it can sink up to 1A of current.

R330  Qty:
Price ex. VAT. Weight: 28g. Stock: Lead-time applicable [i]. mikroE Icon
-
Multimeter click

mikroBUS
Multimeter click
Multimeter click is a Click board™ designed to measure voltage, current, resistance, and capacitance properties of the components, connected to the input terminals. Each property measurement is done on a separate terminal. Each measurement section conditions the input signal from the respective input terminal and forwards it to a four-channel 12-bit A/D converter. All the inputs are equipped with the differential amplifiers, that allow both positive and negative signals to be measured. By utilizing the binary-to-decimal converter IC, it is possible to select the optimal range for the resistance measurement. Low internal resistance of only 0.1? for the current and high resistance of 1M? for the voltage measurement section, ensure no interferences with the measured circuitry, caused by this Click board™.
R940  Qty:
Price ex. VAT. Weight: 29g. Stock: Lead-time applicable [i]. mikroE Icon
-
Boost-INV click

mikroBUS
Boost-INV click

Boost-INV click is a very useful DC/DC voltage converter device, as can output both positive and negative voltage, boosted up to 12.78V and -13.95, from a single fixed voltage input. The input voltage can vary between 2.55V to 5.5V, making the Boost-INV click an ideal solution for powering devices with complex, split-rail power supply demands, using only a common battery. A special feature of the LTC3582 integrated DC/DC converter is the presence of the I2C interface, which is uncommon for devices of this type: it allows configuring of the output voltages, power sequencing, and output voltage ramp rates. It has an OTP memory also, which can be used to store the power-on default values.

R500  Qty:
Price ex. VAT. Weight: 26g. Stock: Lead-time applicable [i]. mikroE Icon
-
Boost-INV 2 click
Boost-INV 2 click
Boost-INV 2 click is a very useful DC/DC voltage converter device, as can output both positive and negative voltage, boosted up to 15V and inverted to -15V, from a single fixed voltage input. The input voltage can vary between 2.7V to 5.5V, making the Boost-INV 2 click an ideal solution for powering devices with complex, split-rail power supply demands, using only a common battery. The Click board™ is equipped with two additional D/A converters, which make it possible to digitally set the output voltage, via the SPI.
R920  Qty:
Price ex. VAT. Weight: 28g. Stock: Lead-time applicable [i]. mikroE Icon
-
Click Analyzer

mikroBUS
Click Analyzer

Click Analyzer is a smart and powerful tool for analyzing pin states and voltage levels on the mikroBUS™. It is a versatile and powerful smart analyzing tool, which consists of two 8-bit PIC microcontrollers (MCUs), from Microchip. By utilizing some of the capabilities of the PIC18F26K42 MCU, such as the DMA, CLC, SMT, and NCO to name few, it is possible to achieve measurement and monitoring of the voltage states on all the pins of the stackable mikroBUS™ slot. The stackable slot allows installation of any Click board™ on a top of the Click Analyzer, allowing easy and simple data traffic analysis. Click Analyzer offers several data transfer protocols, suitable both for various M2M applications, as well as for the human-machine interface (HMI) applications.

R500  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
Smart Buck click

mikroBUS
Smart Buck click
Smart Buck click is the two-channel step-down DC/DC converter and regulator, with plenty of additional functions. It can provide voltage measurement at each of its two programmable voltage outputs, as well as the measurement of the current consumption. In addition, it can also provide power consumption measurements of the Click board™ itself, both at the mikroBUS™ +5V power rail, and the external voltage input terminal. Finally, there is 2kbit of EEPROM at disposal, which can be used for logging the measurements, storage of the working parameters, or any other type of general purpose data.
R700  Qty:
Price ex. VAT. Weight: 27g. Stock: Lead-time applicable [i]. mikroE Icon
-
PWR Meter click

mikroBUS
PWR Meter click

PWR Meter click is a power measurement Click board™, capable of measuring voltage and current through the load, connected to either AC or DC power source. PWR Meter click uses the MCP39F511A, a very sophisticated monitoring IC from Microchip, with 16-bit processing core. It is used to calculate all the measurement parameters, returning values of multiple power parameters directly, over the UART interface, reducing the processing load on the host MCU. These parameters include active, reactive, and apparent power, current and voltage RMS, line frequency, and power factor.

R980  Qty:
Price ex. VAT. Weight: 31g. Stock: Lead-time applicable [i]. mikroE Icon
-
PWR Meter 2 click

mikroBUS
PWR Meter 2 click

PWR Meter 2 click is a compact and accurate power monitoring Click board™, capable of measuring and monitoring voltage up to 24V and current up to 5A. It carries the MCP3910, an integrated Analog Front End (AFE) device, which consists of two delta-sigma A/D Converters (ADC), two Programmable Gain Amplifiers (PGA), phase delay compensation section, voltage reference section, digital offset and gain error calibration registers, and industry-standard SPI interface. This device allows to build power monitoring device with a reasonably low count of elements: A current sensing resistor connected to one channel with the voltage divider connected to the second channel is all that it is required to perform an accurate power measurement.

R470  Qty:
Price ex. VAT. Weight: 35g. Stock: Lead-time applicable [i]. mikroE Icon
-
3xBuck click

mikroBUS
3xBuck click

3xBuck click is a triple step-down (buck) converter Click board™. It features three independent output terminals that can provide 1.8V, 3.3V, and 5V with the combined current output up to 3A. This specific selection of output voltages makes this Click board™ a perfect choice for an embedded application power supply, as these voltages are the most commonly used values. The voltage at each output can be switched to a programmable internal voltage divider, in cases when the output voltage fine-tuning is required. This can be done over the industry-standard I2C interface.

R840  Qty:
Price ex. VAT. Weight: 30g. Stock: Lead-time applicable [i]. mikroE Icon
-
MUX click

mikroBUS
MUX click

MUX click is a Click board™ that switches one of the four differential inputs to one differential output. It employs the MUX509, a modern CMOS analog multiplexing integrated circuit, produced by Texas Instruments. This IC can be powered with both dual power supplies, ranging from ±5V to ±18V, and single power supplies, ranging from 10V to 36V. It offers rail-to-rail operation, allowing the input signal to swing up (and down) to the voltage of the power supply, with no distortion. Features such as the break-before-make switching action, electrostatic discharge protection up to 2kV, low on-resistance and low input current leakage, make this circuit a perfect solution for various switching applications, especially those that utilize differential signals.

It comes in the package which also includes the mikroSDK™ software and a library with all the functions. The Click board™ comes as a fully tested and approved prototype, making it a reliable device ready to use on the development board.

R410  Qty:
Price ex. VAT. Weight: 24g. Stock: Lead-time applicable [i]. mikroE Icon
-
MUX 2 click

mikroBUS
MUX 2 click

MUX 2 click is a Click board™ that switches one of the eight inputs to one output. It employs the MUX508, a modern CMOS analog multiplexing integrated circuit, produced by Texas Instruments. This IC can be powered with both dual power supplies, ranging from ±5V to ±18V, and single power supplies, ranging from 10V to 36V. It offers rail-to-rail operation, allowing the input signal to swing up (and down) to the voltage of the power supply, with no distortion. Features such as the break-before-make switching action, electrostatic discharge protection up to 2kV, low on-resistance and low input current leakage, make this circuit a perfect solution for various switching applications, operating with both unipolar and bipolar signals.

It comes in the package which also includes the mikroSDK™ software and a library with all the functions. The Click board™ comes as a fully tested and approved prototype, making it a reliable device ready to use on the development board.

R410  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
MUX 3 Click

mikroBUS
MUX 3 Click

MUX 3 Click is the general purpose multiplexer which offers multiplexing one input channel to eight single-ended output channels. Given the TMUX1208 wide operating supply options from 1.08 V to 5.5 V and support of bidirectional I/O signals, its allowing you use in a broad array of applications ranging from personal electronics to building automation applications such as: Heating, Smoke Detectors, Ventilation, Air Conditioning, Battery-Powered Equipment, Consumer Audio, etc.

MUX 3 Click board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R165  Qty:
Price ex. VAT. Weight: 18g. Stock: Lead-time applicable [i]. mikroE Icon
-
RMS to DC click

mikroBUS
RMS to DC click

RMS to DC click is a Click board™ that is used to convert the RMS of the input signal into a DC voltage, with a value directly readable over the I2C interface. The Click board™ is equipped with the LTC1968, an RMS-to-DC converter IC, which outputs an analog voltage depending on the RMS value of the input signal. The key feature of this IC is its very good linearity of the output voltage with respect to the RMS of the input signal. This is due to the innovative delta-sigma computational technique, used in this IC. Besides high linearity, this IC also features a high accuracy, high signal bandwidth, and good thermal stability. It can be used to accurately measure the RMS value of various alternating signals.

RMS to DC click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R840  Qty:
Price ex. VAT. Weight: 25g. Stock: Lead-time applicable [i]. mikroE Icon
-
Step Up Click

mikroBUS
Step Up Click

Step Up Click is a fixed frequency DC-DC step-up (boost) regulator, which can be obtained from any low voltage input - such as NiCd, NiMH or one cell Li-Po/Li-Ion batteries. This click features very high efficiency, low noise and anti-ringing voltage output and inrush current limiting with the internal soft-start, as well as true disconnect option for minimized power drain, when in shutdown mode. These features allow this device to be used as the power source for various battery-operated devices, such as microcontrollers, various portable embedded electronic devices, handheld instruments, GPS modules, or various battery-operated USB emergency backup chargers. Very good switching efficiency factor ensures prolonged battery life for any application this device is used in.

Step Up click board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R470  Qty:
Price ex. VAT. Weight: 21g. Stock: Lead-time applicable [i]. mikroE Icon
-
Balancer 2 Click
Balancer 2 Click

Balancer 2 Click is an overvoltage protection device for a 2-series cell lithium-ion battery. Click contains two separate overvoltage battery detection circuits and automatic cell imbalance correction. It can be used for various applications, power tools, portable equipment, and instrumentation, to energy storage systems (ESS), while providing the output voltage at the same time. By utilizing an externally connected power supply, it can charge 2-cell Li-Ion batteries.

The Click board™ is supported by the mikroSDK compliant library, which includes functions that simplify software development. The Click board™ comes as a fully tested product, ready to be used on a system equipped with mikroBUS™.

R500  Qty:
Price ex. VAT. Weight: 22g. Stock: Lead-time applicable [i]. mikroE Icon
-
Balancer 3 Click

mikroBUS
Balancer 3 Click

Balancer 3 Click is overvoltage protection device for 2-series cell lithium-ion battery packs that incorporates a high-accuracy precision overvoltage detection circuit and automatic cell imbalance correction. It can be used for various applications, ranging from smartphones, notebook / laptops, power tools, portable equipment and instrumentation, to energy storage systems (ESS), while providing the output voltage at the same time.

The Click board™ is supported by the mikroSDK compliant library, which includes functions that simplify software development. The Click board™ comes as a fully tested product, ready to be used on a system equipped with mikroBUS™.

R285  Qty:
Price ex. VAT. Weight: 22g. Stock: Lead-time applicable [i]. mikroE Icon
-
Balancer 5 Click

mikroBUS
Balancer 5 Click

Balancer 5 Click is an intelligent 2-cell Li-Ion battery charger, system power manager, and a battery fuel gauge Click board™. Balancer 5 click is based on BQ25887 controller which has some extra features enabling charging without too much hassle. As a system power distributor, it can supply up to 3.3A to a connected battery. By utilizing an externally connected USB power supply, it can charge a 2-cell Li-Ion battery. A dedicated power management IC with the optimized smart power control allows very efficient management of the available power.

The Balancer 5 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R370  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
AMR Current Click

mikroBUS
AMR Current Click

The AMR current Click is product is ±20A fully integrated bi-directional analog output current sensors that deliver both high accuracy and high bandwidth. This state-of-the-art Anisotropic Magneto Resistive (AMR) sensor technology provides inherently low noise, excellent linearity and repeatability.

AMR Current click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R370  Qty:
Price ex. VAT. Weight: 28g. Stock: Lead-time applicable [i]. mikroE Icon
-
Peltier Click

mikroBUS
Peltier Click

The Peltier Click is a Click board™ which utilizes the SPV1050, an ultralow power energy harvester and battery charger from STMicroelectronics. The Peltier click can charge lithium battery using thermoelectric energy harvesting device (TEG). A TEG converts heat directly into electrical energy according to the Seebeck effect. It can be used for a variety of applications such as WSN, HVAC, building and home automation, industrial control, remote metering, lighting, security, surveillance, wearable and biomedical sensors and fitness.

The Peltier click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

The Peltier element is not included in the Click board package, if you want to by one visit our Peltier Element TEC1-12706 product page.

R370  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
Single Cell Click

mikroBUS
Single Cell Click

The Single Cell click is a Click board™ which features MCP16251 synchronous boost regulator with true load disconnect and MCP1811A low-dropout (LDO) linear regulator that provide an ultra low quiescent current during device operation of about 250nA and can be shut down for 5nA (typical) supply current draw. Given the potential applications of these features, the Single Cell click can be used for one, two and three-cell Alkaline and NiMH/NiCd portable products, solar cell applications, personal care and medical products, smartphones, MP3 players, wireless sensors and many more.

The Single Cell click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R225  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
USB-C Source Click
USB-C Source Click

USB-C Source Click is a compact add-on board that contains a standalone autonomous USB power delivery controller. This board features the STUSB4700, an independent USB power delivery controller optimized as a provider to negotiate a given amount of power to be sourced to an inquiring consumer device from STMicroelectronics. The main functions of the STUSB4700 are discovery, configuration, and monitoring of the VBUS: Type-C low, medium, or high current mode. Additionally, it offers 5 customizable power data objects (PDOs), several GPIOs, an integrated discharge path, and is natively robust to high voltage peaks. This Click board™ is suitable for any type-C source device, AC adapters, and power supplies for computer, consumer or portable consumer applications, and more.

USB-C Source Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R760  Qty:
Price ex. VAT. Weight: 28g. Stock: Lead-time applicable [i]. mikroE Icon
-
USB-C Sink Click
USB-C Sink Click

USB-C Sink Click is a compact add-on board that contains a standalone autonomous USB power delivery controller. This board features the STUSB4500, a USB-C sink-only controller compatible with Power-Delivery (PD) from STMicroelectronics. It supports dead battery mode to allow a system to be powered from an external source directly, establishes a valid source-to-sink connection, and negotiates a USB power delivery (PD) contract with a PD capable source device. Combined with the capability to directly negotiate a power contract, this Click board™ makes it an excellent choice for various applications like autonomous systems that requires high power charging profile to be fully operational.

USB-C Sink Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R285  Qty:
Price ex. VAT. Weight: 28g. Stock: Lead-time applicable [i]. mikroE Icon
-
PowerBank Click
PowerBank Click

PowerBank Click is a USB charging expansion board which can be used for creating power bank devices or adding charging option to your device. For battery charging management this board uses MP2632B a highly integrated 3A Lu-ion and Li-polymer battery charger from Microchip. In addition to battery charger PowerBank Click also has a MCP3221 analog to digital converter, which is serving for monitoring battery voltage over I2C interface. Beside battery charging and monitoring feature, this board also has an operation section button, notification LEDs for operational mode selection and battery status. Power banks are popular for charging USB charged devices and can be used as a power supply for various USB powered devices such as lights and small fans.

PowerBank Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R580  Qty:
Price ex. VAT. Weight: 19g. Stock: Lead-time applicable [i]. mikroE Icon
-
PowerBank 2 Click
PowerBank 2 Click

The PowerBank 2 Click is a Click board™ equipped with the RT9480, highly integrated and easy to use power solution for Li-ion power bank and other powered handheld applications. It's usually called EZPBS (Easy to Use PowerBank Solution). This single chip includes a linear charger, a synchronous Boost with dual output load management and a torch function support. The battery volume and the state of charging and discharging can be indicated by 4 LEDs.

PowerBank 2 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R640  Qty:
Price ex. VAT. Weight: 26g. Stock: Lead-time applicable [i]. mikroE Icon
-
Power MUX 2 Click
Power MUX 2 Click

Power MUX 2 Click is a compact add-on board that contains a highly configurable power mux. This board features the TPS2120, a dual-input single-output power multiplexer with an automatic switchover feature from Texas Instruments. This Click board™ prioritizes the main supply when present and quickly switches to auxiliary supply when the main supply drops. During switchover, the voltage drop is controlled to block reverse current before it happens and provide uninterrupted power to the load with minimal hold-up capacitance. This Click board™ is suitable for applications as a backup and standby power, input source selection, and various systems having multiple power sources.

Power MUX 2 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R680  Qty:
Price ex. VAT. Weight: 19g. Stock: Lead-time applicable [i]. mikroE Icon
-
eFuse 2 Click
eFuse 2 Click

eFuse 2 Click is a compact add-on board that contains an integrated FET hot-swap device. This board features the TPS259631, a highly integrated circuit protection and power management solution from Texas Instruments. It provides multiple protection modes against overloads, short circuits, voltage surges, and excessive inrush current. Also, it is possible to get an accurate sense of the output load current by measuring the voltage drop across digital rheostat that can set the output current limit level. The device also uses an in-built thermal shutdown mechanism to protect itself during these fault events. This Click board™ is typically used for hot-swapping and power rail protection applications.

eFuse 2 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R500  Qty:
Price ex. VAT. Weight: 21g. Stock: Lead-time applicable [i]. mikroE Icon
-
eFuse 3 Click
eFuse 3 Click

eFuse 3 Click is a compact add-on board that contains an electronic eFuse. This board features the NIS6150, a resettable fuse that can significantly enhance the reliability of a USB application from both catastrophic and shutdown failures from ON Semiconductor. It is designed to buffer the load device from the excessive input voltage, which can damage sensitive circuits and protect the input side from reverse currents. It includes an over-voltage clamp circuit that limits the output voltage during transients but doesn't shut the unit down, allowing the load circuit to continue its operation. This Click board™ is suitable for automotive infotainment, overcurrent surge protection, and robust resettable fault protection.

eFuse 3 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R500  Qty:
Price ex. VAT. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
Power Monitor Click
Power Monitor Click

Power Monitor Click is a compact add-on board that represents an ultra-precise power monitoring solution. This board features the INA228, a digital power monitor with a 20-bit delta-sigma ADC specifically designed for current-sensing applications from Texas Instruments. The INA228 reports current, bus voltage, temperature, power, energy, and charge accumulation while employing a precision ±0.5 % integrated oscillator, all while performing the needed calculations in the background. It can measure a full-scale differential input of ±163.84mV or ±40.96mV across a resistive shunt sense element, with common-mode voltage support up to +85V. This Click board™ is suitable for current-sensing applications in DC-DC converters, power inverters, telecom equipment, industrial measurements, and many more.

Power Monitor Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R500  Qty:
Price ex. VAT. Weight: 19g. Stock: Lead-time applicable [i]. mikroE Icon
-
