GSM Click is an add-on board in the mikroBUS form factor and is a perfect solution for adding a GSM/GPRS communication layer to your device. It features the Telit GL865-QUAD GSM/GPRS module which supports GSM/GPRS 850/900/1800/1900 MHz Quad-band frequency. The board contains a TXB0106 6-bit bidirectional voltage-level translator as well as a SIM card socket. GSM Click communicates with the target microcontroller via seven mikroBUS lines (RX, TX, INT, PWM, CS, RST and AN). The board uses a 3.3V power supply, but can communicate at either 3.3V or 5V voltage levels (selection by SMD jumper). An LED diode indicates the presence of power supply. |
|
|
|
|
|
|
GSM2 Click is a perfect solution for adding a GSM/GPRS communication layer to your device. It features the Quectel M95 GSM/GPRS module which supports GSM850MHz, GSM900MHz, DCS1800MHz or PCS1900MHz quad-band frequencies with 85.6 kbps GPRS data transfer. The board is designed in the mikroBUS form factor and contains quadrupole audio/microphone jack, SMA antenna connector and a SIM card socket. GSM Click communicates with the target microcontroller via seven mikroBUS lines (RX, TX, INT, PWM, CS, RST and AN). The board uses a 5V power supply, but can communicate at either 3.3V or 5V voltage levels (selection by SMD jumper). An LED diode indicates the presence of power supply. |
|
|
|
|
|
|
GSM3 click carries the SIM800H, which is a quad-band (850/900/1800/1900MHz) GSM/GPRS module that transmits voice, sms and data information. Utilizing the module's full potential, GSM3 click also has an audio input/output connection pad (for a microphone and earphones, which can also be used as an FM antenna). The SIM800H also supports Bluetooth, so a 2.4 GHz active antenna is also included on the board. Two indication LEDs signal the operating and network status of the module. The board uses a 5V power supply, but can communicate at either 3.3V or 5V voltage levels (selection by SMD jumper). An LED diode indicates the presence of power supply. |
|
|
|
|
|
|
GSM 4 click is a mikroBUS™ add-on board that features the u-blox SARA-G3 series 2.5G GSM/GPRS cellular quad-band module. The SARA-G3 module has a miniature LGA (Land Grid Array) form factor as well as an RF transceiver and a power amplifier. |
|
|
|
|
|
|

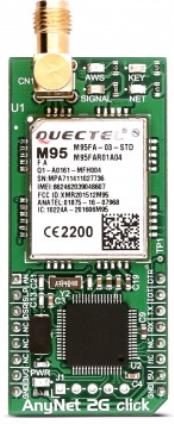

AnyNet 2G click is a cellular to AWS gateway device, which provides developers with the complete solution for various IoT applications, by using the AWS IoT and Cloud Storage services for the data storage, analyzing and processing.
This click board™ provides an easy and secure connection with the AWS over the air (OTA), by utilizing the equipped Quectel M95 module and Eseye ES4623 embedded SIM card, that can work with more than 235 cellular operators from all over the world. AnyNet 2G click can be used as an AWS IoT button with almost no configuration.
AnyNet 2G click comes supplied with the start-up package - free activation through the AWS, unique ID number of the embedded SIM card and six-month cellular connectivity services of up to 5000 messages to the AWS cloud. With the AnyNet 2G click, users get the unique level of integration with the AWS IoT services.
Note: Before the purchase of AnyNet 2G click, please contact Eseye and check for the coverage and support of embedded SIM cards from your local provider. Opening an AWS account and subscribing to Eseye marketplace is mandatory to work with this click board. |
|
|
|
|
|
|
3G-EA click is a versatile cellular network communication solution, featuring the compact 3G UMTS/HSPA Quectel UG95 module. This module features a full set of options for the cellular networking and communication, such as the network indication, embedded TCP/UDP stack, HTTP/HTTPS stack, full GSM/GPRS/EDGE implementation, UMTS/HSDPA/HSUPA protocol implementation and more. 3G-EA click features data-rates of 7.2 Mb/s (downlink) and 5.76 Mb/s (uplink) in HSPA mode. Onboard 16bit audio CODEC IC adds high-quality voice communication capability.
|
|
|
|
|
|
|
3G SARA click is a mikroBUS add-on board with the smallest UMTS/HSPA cellular modem available today - the u-blox U201, from the award-winning SARA series.
The board has everything you need to add 3G to your devices and make them respond and react to phone calls and messages - or send/receive data at speeds up to 7.2 Mb/s - from anywhere in the world. The code example provided should help you get started quickly. |
|
|
|
|
|
|
4G LTE-E click carries the LARA-R211 multi-mode cellular module from u-blox. The board is designed to use 5V power supply. I/O voltage levels could be 3.3V or 5V. It communicates with the target microcontroller over UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, RST, CS, PWM, INT. |
|
|
|
|
|
|
4G LTE-NA click carries the LARA-R204 multi-mode cellular module from u-blox. The board is designed to use 5V power supply. I/O voltage levels could be 3.3V or 5V. It communicates with the target microcontroller over UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, RST, CS, PWM, INT. |
|
|
|
|
|
|
GSM-GPS click is a mikroBUS add-on board with a SIM808 module that combines GSM/GPRS and GPS into a single device. Ideal for remote tracking devices in any shape or form.
The high-performance GSM/GPRS engine works on GSM, EGSM, DSC and PCS frequencies. The GPS has a 1 second TTF (Time To First Fix) from a hot start and 30 seconds from a cold start. Tracking sensitivity is -165 dBm.
The board has two antenna connectors, one for GSM the other for GPS. The bottom side has a SIM card slot and a Micro USB connector for interfacing with a PC.
GSM-GPS click communicates with the target board MCU through mikroBUS UART interface, with additional functionality provided by STAT, PWRKEY, RTS, RS, and CTS. Beside the mikroBUS, the board has additional pins for connecting speakers and a microphone to the GSM engine.
GSM-GPS click uses either a 3.3V or 5V power supply. |
|
|
|
|
|
|
GSM/GNSS click combines GPS/GLONASS location tracking with GSM module capability for mobile communication. The click features Quectel's MC60 quad-band module. GSM/GNSS click runs on either 3.3V or 5V power supply and communicates with the target MCU over UART interface, and the following mikroBUS™ pins: AN, RST, PWM, INT. |
|
|
|
|
|
|
GSM/GNSS 2 click combines GPS/GLONASS location tracking with GSM module capability for mobile communication. The click carries SIM868 quad-band GSM/GPRS module.
GSM/GNSS 2 click is designed to run on either 3.3V or 5V power supply. It communicates with the target MCU over UART interface. |
|
|
|
|
|
|
4G LTE&GNSS Click is a compact add-on board designed for advanced global tracking and telematics applications, enabling developers to build highly efficient and smaller solutions without compromising performance. This board features the LENA-R8, a multi-mode LTE Cat 1bis module from u-blox. It stands out for its compact size and extensive network compatibility. It supports 14 LTE bands, four GSM/GPRS bands for universal connectivity, and integrated u-blox GNSS for precise global tracking. The board facilitates seamless communication via UART and includes a USB interface for comprehensive device management and firmware updates. Key features include dual LED indicators for operational status, flexible power options, and a nano SIM card holder supporting various SIM voltages. Ideally suited for IoT applications requiring broad global coverage and high-performance location services, the 4G LTE&GNSS Click board is a powerful tool for developers in the tracking and telematics markets.
4G LTE&GNSS Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization. What sets this Click board™ apart is the groundbreaking ClickID feature, enabling your host system to seamlessly and automatically detect and identify this add-on board.
|
|
|
|
|
|
|
Skywire™ click is an adapter click, which hosts NimbeLink/Skywire™ cellular modems (using stacking headers) to MikroElektronika development boards. It carries the MCP1826 low dropout regulator from Microchip.
Skywire modem not included. |
|
|
|
|
|
|
The SmartG100 Board is a uBlox Leon-G100 GSM/GPRS module development board. It features microphone and speaker connectors, serial UART communication interface, and a switching power supply (accepting 7-23V AC or 9-32V DC).
Antenna purchased separately. |
|
|
|
|
|
|
The EasyGSM/GPRS is a development board for the Telit's GM862 GSM/GPRS module. The GM862 is specifically designed for the OEM usage and portable data, voice and telematic applications. An antenna is delivered with the board to provide a better quality of signal.
Module / antenna purchased separately. |
|
|
|
|
|
|
The SmartGM862 Board is a development board for the Telit's GM862 GSM/GPRS module. The board includes an on-board switching power supply so that no additional power supply components are needed.
Module / antenna purchased separately. |
|
|
|
|
|
|
The SmartSIM340Z Board is a development tool for the Simcom SIM340Z GSM/GPRS module. Stable switching power supply can be found on-board, so no additional components are needed. An antenna can be placed on-board to ensure best signal quality.
Module / antenna purchased separately. |
|
|
|
|
|
|

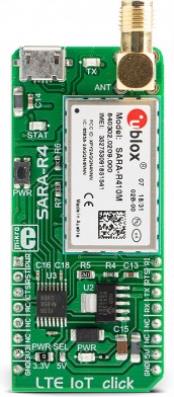

LTE IoT click is a Click board™ that allows connection to the LTE and 2G networks, featuring the compact form-factor SARA-R410M-02B LTE/2G module, which offers two LTE technologies aimed at Machine to Machine communication (M2M) and the Internet of Things (IoT). This module is an embedded IoT communication solution which supports the LTE Cat M1 and NB1 technologies, offering an alternative to similar Low Power Wide Area Network (LPWAN) solutions, such as the ones provided by Sigfox and LoRa. The LTE CAT1 and NB1 technologies are designed with specific requirements of the IoT network in mind. LTE IoT click also offers various other features, allowing simple and reliable connection to these new 3GPP IoT technologies. |
|
|
|
|
|
|

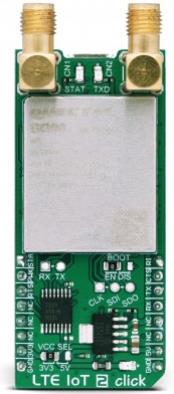

LTE IoT 2 click is a Click board™ that allows connection to the LTE networks, featuring Quectel BG96 LTE module, which offers two LTE technologies aimed at Machine to Machine communication (M2M) and Internet of Things (IoT). This module is an embedded IoT communication solution which supports the LTE Cat M1 and NB1 technologies, offering an alternative to similar Low Power Wide Area Network (LPWAN) solutions, such as the ones provided by Sigfox and LoRa. The LTE CAT1 and NB1 technologies are designed with specific requirements of the IoT network in mind. LTE IoT 2 click also offers various other features, allowing simple and reliable connection to these new 3GPP IoT technologies. |
|
|
|
|
|
|

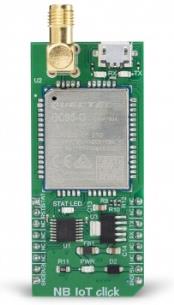

NB IoT click is a Click board™ that allows LTE Cat NB1 connectivity by utilizing Quectel BC95-G, a specialized multi-band IoT module with very low power requirements and compact form factor, making it perfectly suited for various IoT-based applications. This module is an embedded IoT communication solution which supports several NB frequency bands, offering an alternative to similar Low Power Wide Area Network (LPWAN) solutions, such as those offered by Sigfox and LoRa. Its most important advantage is the ability to use already widely established cellular network infrastructures. These features make the NB IoT click a perfect choice for a wide range of IoT applications such as smart metering, bike sharing, smart parking, smart city, security and asset tracking, home appliances, agricultural and environmental monitoring, and more.
Note: To ensure the best performance, please use an antenna that supports frequency bands used by the Quectel BC95-G module
It comes in the package which also includes the mikroSDK™ software and a library with all the functions. The Click board™ comes as a fully tested and approved prototype, making it a reliable device ready to use on the development board.
|
|
|
|
|
|
|
Thingstream Click is an IoT gateway Click board™ with the Thingstream client SDK preinstalled. This enables the device to connect to the Thingstream global MQTT network and connectivity tools straight out of the box. Global connectivity is achieved by connecting to the strongest GSM network available across over 600 networks worldwide. This Click board™ makes it easy to bring Thingstream connectivity to embedded computers and MCUs by simply utilising the UART interface; this can be configured and managed using a minimal set of well-documented AT commands.
Thingstream Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
|
|
|
|
|
|
|
LTE Cat.1-US click is a Click board™ based on Thales Cinterion® ELS61 wireless module that delivers highly efficient Cat 1 LTE connectivity for M2M IoT solutions offering seamless fall back to 2G and 3G networks. The best in class solution enables M2M optimized speeds of 10Mbit/s download and 5Mbit/s uplink making it ideal for the vast number of M2M and industrial IoT applications that are not dependent on speed but that requires the longevity of LTE networks, while still providing 3G and 2G connectivity to ensure complete population and geographic coverage as LTE rolls out.
The LTE Cat.1-US click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
|
|
|
|
|
|
