WiFi ESP click carries the ESP-WROOM-02 module that integrates ESP8266EX. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over UART interface and the following pins on the mikroBUS™ line: RST, CS. |
|
|
|
|
|
|
Go to Cloud (G2C) 3G click is a gateway Click board™ which provides a simple and reliable connection to the Click Cloud platform, a cloud-based rapid prototyping environment, hosted by Mikroe. G2C 3G offers an unprecedented simplicity for adding Click Cloud connectivity over UMTS/HSPA to any embedded application, by utilizing the simple UART interface: it can be configured and managed using a minimal set of well-documented AT commands. With the simplicity in mind, G2C 3G click represents an ideal solution for accessing user-friendly and intuitive Click Cloud, a simple yet powerful rapid prototyping cloud solution.
Learn all about the Click Cloud solution by visiting the official web page. All the necessary documentation to get you started, including the G2C 3G click User Manual, the AT Command Manual, and the Click Cloud Guide can be found in the documentation below, in the download section.
|
|
|
|
|
|
|
WiFi PLUS Click is an accessory board in the mikroBUS form factor. It is a compact solution for adding WiFi communication to your device. It features the MRF24WB0MA - 2.4GHz, IEEE std. 802.11 - compliant module as well as the MCW1001 companion controller with on-board TCP/IP stack and 802.11 connection manager. WiFi PLUS click communicates with target boards via a UART interface. It is designed to use a 3.3V power supply only. It also features an option to achieve low power consumption. |
|
|
|
|
|
|
CC3000 click is an add-on board in the mikroBUS form factor. It features the CC3000MOD WiFi module, as well as a ceramic antenna, for adding WiFi functionality without requiring too much Wi-Fi or RF expertise. The Texas Instruments CC3000MOD integrates the IPv4 TCP/IP stack with built-in network protocols (ARP, ICMP, DHCP client and DNS client). This simplifies connection to local networks and/or the Internet, while minimizing software requirements for the target board MCU. The CC3000 click enables OFDM rates from 1 to 54 Mbps in the 2.4-GHz ISM band. CC3000 also has integrated EEPROM memory. The ceramic antenna has a maximum range of about 70 meters in open space. The board is designed to operate on a 3.3V supply only, and communicates via a SPI interface. |
|
|
|
|
|
|
If you are building an IoT device that connects to the internet through WiFi, your two biggest concerns are power consumption and security – both major strengths of the module onboard CC3100 click.
This WiFi click board carries the successor of the highly popular CC3000 module from Texas Instruments. Its claim to fame was that it simplified WiFi for embedded developers by integrating multiple Internet Protocols and a Wifi driver with a simple API.
CC3100 inherits all these benefits, and on top of that, adds an updated protocol stack (support for 802.11n) and cutting edge security features (TSL encryption, hardware crypto-engine and more). |
|
|
|
|
|
|
WiFi3 is a complete self-contained WiFi solution carrying the ESP8266 module with a system on chip. The module has an integrated TCP/IP stack, supports Wi-Fi Direct (p2p) and boasts powerful processing and storage capabilities that offload all networking functions from the MCU. Alongside a standard mikroBUS socket, with WiFi3 click you’ll also have additional 6 GPIO pins at your disposal. WiFi3 communicates with the target board microcontroller through mikroBUS RX, TX, AN (PWD) and RST (G15) lines. The board uses a 3.3V power supply only. |
|
|
|
|
|
|
WiFi 4 click carries SPWF01SA, a complete standalone WiFi module with a single-chip 802.11 b/g/n transceiver, a 32-bit STM32 MCU, along with a built-in 2.4 GHz ISM band antenna. The onboard module has 1.5 MB of internal flash and 64 KB of RAM, plus a fully integrated TCP/IP protocol stack with added web server and application service capabilities. WiFi4 click communicates with the target MCU through the mikroBUS UART interface, but the board also features additional 14 GPIO pins. Uses a 3.3V power supply only. |
|
|
|
|
|
|
WiFly click carries RN-131, a standalone, embedded wireless LAN module. It allows you to connect your devices to 802.11 b/g wireless networks. Preloaded firmware simplifies integration. The mikroBUS UART interface alone (RX, TX pins) is sufficient to establish a wireless data connection (with speeds up to 1 Mbps); the module is controlled with simple ASCII commands (for scanning, authenticating and connecting to Wi-Fi networks). A multitude of networking applications are built in: DHCP, UDP, DNS, ARP, ICMP, TCP, HTTP client, and FTP client. Additional functionality is provided by RST, WAKE, RTSb and CTSb pins. 3.3V power supply only. |
|
|
|
|
|
|
WiFi 6 click is a mikroBUS™ add-on board with Bluegiga's WF121-A self-contained Wi-Fi module. With a fully integrated radio and 32-bit microcontroller, this module is ideal for embedded applications.
The module's 2.4GHz band radio is fully compliant with IEEE 802.11b/g/n and offers excellent radio performance. Allows end user applications to be embedded onto the integrated PIC32MX695H, a 32-bit 80MHz microcontroller with 128KB RAM and 512KB Flash memory, for development of lower-cost and smaller sized products. Also integrated on-board is a single power supply.
WiFi 6 click communicates with the target MCU through the mikroBUS™ UART (TX, RX), SPI, or IC2, with additional functionality provided by CTS pin (in place of default mikroBUS™ INT pin); a mikroProg connector allows to update the firmware of the internal PIC32. SPI interface can be accessed by jumpers on the click board. The board is designed to use a 3.3 power supply only. |
|
|
|
|
|
|
WiFi 7 click carries the ATWINC1510-MR210PB IEEE 802.11 b/g/n module, specifically optimized for low-power IoT applications. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over SPI interface, with additional functionality provided by the following pins on the mikroBUS™ line: PWM, INT, RST. |
|
|
|
|
|
|

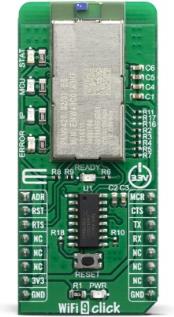

WiFi 9 Click is fully embedded stand-alone Wi-Fi module, equipped with the PAN9420 a 2.4 GHz ISM band Wi-Fi-embedded module which includes a wireless radio and an MCU for easy integration of Wi-Fi connectivity into various electronic devices. This module combines a high-performance CPU with Wireless radio and integrated memory, which offers many features like webpage storing of HTML or image data, possibility to work in access point or infrastructure mode, and dual UART interface for communication with the host controllers.
WiFi 9 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
|
|
|
|
|
|
|

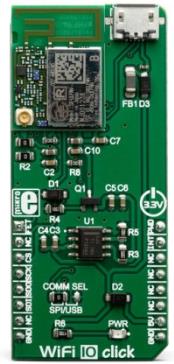

WiFi 10 click is a Click board™ that offers an ultra-low power wireless connectivity, for any IoT application. It is based on the SX-ULPAN-SB-2401, an integrated wireless LAN module, compliant with the IEEE802.11a/b/g/n wireless networking protocols, at 2.4GHz. The ULPAN-SB-2401 module comes equipped with a PCB trace antenna, but it also offers a small Hirose U. FL connector allowing an external antenna to be used for improved range. The ULPAN-SB-2401 module supports IPv4, TCP, and UDP transfer protocols. It also provides support for WPS, WPA, and WPA2 security protocols, allowing a secure connection.
WiFi 10 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
|
|
|
|
|
|
|
WiFi NINA click is a powerful standalone WiFi module, equipped with the state-of-the-art NINA-W132 module from u-blox, that can be easily configured with the u-blox s-center software, using AT commands. WiFi NINA click offers a complete WiFi stack, it is really easy to use and provides a simple way to build secure IoT applications.
This WiFi module integrates a powerful dual 32bit MCU and a radio for wireless communication. It comes with preprogrammed application software that supports 802.11b/g/n in the 2.4 GHz ISM band. WiFi NINA click also features an RGB diode, which is used to display the connection status of the device. These features make this click a perfect and secure IoT solution. It can also be used for any type of WiFi networks, medical and industrial networking, home/building automation and other applications that require wireless network access. |
|
|
|
|
|
|

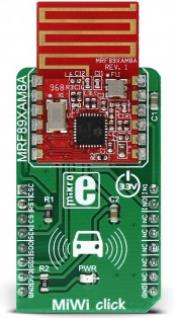

MiWi click is a subgigahertz radio transceiver click board™, which offers a reliable FSK or OOK communication solution, with the maximum data rates of 40kbps and 16kbps, respectively. The radio transceiver module used on this click board™ has plenty of features that make it a perfect choice for compact designs: It has very good reception sensitivity, an onboard PCB antenna, high level of components integration, built in packet handling routines with automatic CRC generation, 64 bytes of transmit/receive FIFO buffer, built in Sync Word recognition, clock/data synchronisation and recovery and many more.
Armed with such a powerful, compact and fully configurable radio transceiver module, MiWi click offers highly reliable radio communication over a short distance, which can be utilized in many applications. It can be used for developing home/industrial/building automation applications, data loggers, applications for remote keyless access, alarms, wireless remote control and a wide variety of similar short-range radio applications. |
|
|
|
|
|
|
MiWi 2 click is a sub-gigahertz radio transceiver click board™, which offers a reliable FSK or OOK communication solution, with the maximum data rates of 200kbps and 40kbps, respectively. The radio transceiver module used on this click board™ has plenty of features that make it a perfect choice for compact designs: It has very good reception sensitivity, an onboard PCB antenna, high level of components integration, built in packet handling routines with automatic CRC generation, 64 bytes of transmit/receive FIFO buffer, built in Sync Word recognition, clock/data synchronisation and recovery and many more.
Armed with such a powerful, compact and fully configurable radio transceiver module, MiWi 2 click offers highly reliable radio communication over a short distance, which can be utilized in many applications. It can be used for developing home/industrial/building automation applications, data loggers, applications for remote keyless access, alarms, wireless remote control and a wide variety of similar short-range radio applications. |
|
|
|
|
|
|

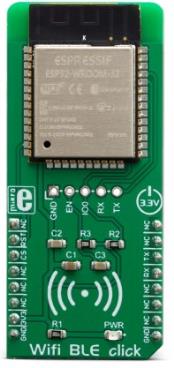

WiFi BLE click is a Click board™ which provides WiFi and BT/BLE connectivity for any embedded application. It features the ESP32-WROOM-32, an integrated wireless connectivity solution. The ESP32-WROOM-32 module itself is based on the ESP32-D0WDQ6 chip, a powerful 32-bit SOIC that runs RTOS featuring LwIP and TLS 1.2 with hardware acceleration. Armed with such a powerful processor, the ESP32-WROOM-32 can achieve data rates of up to 150 Mbps. The ESP32-WROOM-32 can achieve up to 20 dBm of TX power, ensuring a reliable connection and good signal coverage. It offers an UART communication interface allowing it to be operated by using simple AT commands.
WiFi BLE click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
|
|
|
|
|
|
|
DeviceDrive Click is a complete Cloud-on-Module solution with Wi-Fi functionality and integrated PCB antenna. The on board WRF01-M24A module comes preloaded with DeviceDrive firmware which completely offloads Wi-Fi networking functionality from the application processor and enables features like OTA upgrade, automatic connection to the DeviceDrive Cloud and Mobile App. Each DeviceDrive click board is coming with the FREE activation for testing the board and DeviceDrive cloud.
The WRF01-M24A module use UART interface (with JSON command format) for communication with external devices and an MCU for internal use. With this board you are getting FREE of charge access to the Mobile App, Cloud IoT-Hub, and WRF01 Firmware for testing your idea.
DeviceDrives click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
|
|
|
|
|
|
