Biosignals (Go to Parent Category)
Boards for measuring signals generated by the human body.

(i) Tip:The filter on the left can be used to narrow down the number of items in this category.
  • Items
-
Heart Rate click

mikroBUS
Heart Rate click Heart Rate click carries Maxim's MAX30100 integrated pulse oximetry and heart-rate sensor. It's an optical sensor that derives its readings from emitting two wavelengths of light from two LEDs – a red and an infrared one – then measuring the absorbance of pulsing blood through a photodetector. This particular LED color combination is optimized for reading the data through the tip of one's finger. The signal is processed by a low-noise analog signal processing unit and communicated to the target MCU through the mikroBUS I2C interface. Developers of end-user applications should note that the readings can be negatively impacted by excess motion and changes in temperature. Also, too much pressure can constrict capillary blood flow and therefore diminish the reliability of the data. A programmable INT pin is also available. Uses 3.3V power supply.
R395  Qty:
Price ex. VAT. Est. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
Heart Rate 3 click

mikroBUS
Heart Rate 3 click Heart rate 3 click is a mikroBUS add-on board whose functionality is determined by two components: an OSRAM’s SFH7050 pulse oximetry and heart rate monitoring module, and a TI AFE4404 (analong-front-end) IC specialized for bio-sensing. The SFH7050 multichip package contains 3 LEDs and one photodiode separated with a light barrier to prevent optical crosstalk. When the three LEDs shine through a subject’s finger, some of the light is absorbed by the pulsating blood. The analog reading from the SFH7050 is forwarded to the AFE chip that is able to derive pulse readings from the intensity of the reflected light. AFE4404 is highly-configurable and adaptable for different usage scenarios (different lighting conditions or skin tones) making Heart rate 3 click a robust heart rate monitoring solution. The board communicates with the target MCU through the mikroBUS™ I2C interface, with additional functionality provided by RST, CLK and RDY pins. Heart rate 3 click works on a 3.3V power supply, but an onboard jumper allows you to set the voltage for driving the SFH7050 LEDs at either 3.3V or 5V.
R795  Qty:
Price ex. VAT. Est. Weight: 20g. Stock: Lead-time applicable [i]. mikroE Icon
-
Heart rate 4 click

mikroBUS
Heart rate 4 click Heart rate 4 click carries the MAX30101 high-sensitivity pulse oximeter and heart-rate sensor from Maxim Integrated. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target MCU over I2C interface, with additional functionality provided by INT pin on the mikroBUS™ line.
R440  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
Heart Rate 5 click

mikroBUS
Heart Rate 5 click

Heart Rate 5 click is the optical biosensor Click board™ which can be used for the heart-rate monitoring (HRM), as well as the peripheral capillary oxygen saturation monitoring (SpO2). This Click board™ employs a very sensitive analog front-end IC with high dynamic range, which ensures accurate and reliable readings. This analog front-end IC is coupled with the optical front end, which consists of the top-of-the-class integrated BIOFY® sensor, which features two green LEDs, one red LED, one infrared LED, and two photodiodes (PD), offering very accurate HRM and SpO2 readings.

R655  Qty:
Price ex. VAT. Weight: 23g. Stock: Lead-time applicable [i]. mikroE Icon
-
Heart rate 6 click

mikroBUS
Heart rate 6 click

Heart rate 6 click is an optical biosensor Click board™ designed for heart-rate monitoring (HRM). This Click board™ employs a specialized sensor that incorporates two LED drivers and photo-sensing elements which are the most sensitive to green light. The green light is most commonly used to measure the dilatation of the blood vessels, therefore Heart rate 6 is equipped with two green LEDs, which are driven by the BH1790GLC, a monolithic integrated sensor for heart rate monitoring. Heart rate 6 click is a perfect solution for the development of various wearable health-related devices, smartphones, tablets, and similar space-constrained applications.

It comes in the package which also includes the mikroSDK™ software and a library with all the functions. The Click board™ comes as a fully tested and approved prototype, making it a reliable device ready to use on the development board.

R510  Qty:
Price ex. VAT. Weight: 24g. Stock: Lead-time applicable [i]. mikroE Icon
-
Heart Rate 7 click

mikroBUS
Heart Rate 7 click

Heart Rate 7 click is an optical biosensor Click board™ which can be used for heart-rate monitoring (HRM). This Click board™ employs a very sensitive analog front-end IC with high dynamic range, which ensures accurate and reliable readings. This analog front-end IC is coupled with the optical front end, which consists of a sensitive photo-diode (PD) and two high brightness green LEDs. The photo-diode is the most sensitive to a visible light spectrum, offering reasonably high current output compared to other, standard type PD elements used so far, thus providing very accurate HRM readings.

R480  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
Heart Rate 8 click

mikroBUS
Heart Rate 8 click

Heart Rate 8 click is an optical biosensor Click board™, designed for heart-rate monitoring (HRM). This Click board™ employs a specialized sensor that incorporates three LED drivers and two photo-sensing elements, sensitive to green and IR light. The green light is most commonly used to measure the dilatation of the blood vessels; therefore, Heart rate 8 click is equipped with two green LEDs, which are driven by the BH1792GLC, a monolithic integrated sensor for heart rate monitoring, and the additional IR LED, used to detect a finger touch. Heart rate 8 click is a perfect solution for the development of various wearable health-related devices, smart phones, tablets, and similar space-constrained applications.

It comes in the package which also includes the mikroSDK™ software and a library with all the functions. The Click board™ comes as a fully tested and approved prototype, making it a reliable device ready to use on the development board.

R735  Qty:
Price ex. VAT. Weight: 24g. Stock: Lead-time applicable [i]. mikroE Icon
-
Heart Rate 9 Click

mikroBUS
Heart Rate 9 Click

The Heart Rate 9 click is a Click board™ which features PIC16F1779 8-bit MCU and SFH 7060 heart rate and pulse oximetry monitoring sensor. This click has an algorithm for processing data from the sensor and it can send data for 3 different diodes (green, ir, red) who give out a diagram of the heartbeat and its frequency per minute. The data has shown that the most notable signal comes from the green diode because it has the best reflection through the surface of the skin due to its shortest wavelength among three light sources. Implementing a light barrier to block optical crosstalk and improved geometry for optimized signal quality. Most reflective heart rate monitors still have significant noise in their designs despite the use of complex and expensive analog circuits such as Analog Front End (AFE) chips. A more cost-effective method for reducing noise and taking these measurements is necessary.

The Heart Rate 9 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R395  Qty:
Price ex. VAT. Weight: 18g. Stock: Lead-time applicable [i]. mikroE Icon
-
ECG click

mikroBUS
ECG click This is an ECG (or EKG) machine on a click board. It measures the electrical activity of a beating heart through electrodes taped to the skin. The board requires little setup, and the final measurement results can be displayed as an electrocardiogram using a free Windows app. With the ECG click bundle (click + cable + electrodes) you will be able to prototype your own health-tracking and fitness devices, quantified-self wearable or you can just make an LED blink in sync with your heart.
R795  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
Bundle (w/ Cable + Electrodes)    R1,400  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
ECG 2 click

mikroBUS
ECG 2 click Track the patterns of your beating heart with ECG 2 click. ECG 2 click contains ADS1194 16-bit delta-sigma analog-to-digital converters from Texas Instruments, a built-in programmable gain amplifier (PGA), an internal reference, and an onboard oscillator.
R1,000  Qty:
Price ex. VAT. Weight: 30g. Stock: Lead-time applicable [i]. mikroE Icon
Bundle (w/ Cable + Electrodes)    R1,550  Qty:
Price ex. VAT. Weight: 91g. Stock: Lead-time applicable [i]. mikroE Icon
-
ECG 3 Click

mikroBUS
ECG 3 Click

ECG 3 click is a complete solution for the development of ECG applications, which utilizes a specialized clinical-grade biopotential analog front-end (AFE) IC. ECG click uses the MAX30003 IC, an ultra-low power, single channel, integrated biopotential AFE, which features a wide range of options, making it a universal solution for many different types of ECG applications. ECG 3 click is an ideal solution for the development of heart rate monitoring applications, fitness applications, for the ECG bio-authentication, and similar applications.

It comes in the package which also includes the mikroSDK™ software and a library with all the functions. The Click board™ comes as a fully tested and approved prototype, making it a reliable device ready to use on the development board.

R920  Qty:
Price ex. VAT. Weight: 24g. Stock: Lead-time applicable [i]. mikroE Icon
-
ECG 4 Click

mikroBUS
ECG 4 Click

ECG 4 Click is a complete solution for the development of ECG and Heart-Rate (HR) applications, based on the BMD101, a specialized bio-signal sensing System-on-Chip (SoC). ECG 4 click offers a reliable and accurate ECG and heart-rate monitoring, by sending processed bio-data over the UART interface. Its interface offers great flexibility and thus, very simple integration into any development environment. Besides the highly specialized bio-sensing SoC, ECG 4 click is equipped with the 3.5mm electrodes connector, as well as with ESD protection diodes, making it ready to be used out of the box.

ECG 4 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R715  Qty:
Price ex. VAT. Weight: 24g. Stock: Lead-time applicable [i]. mikroE Icon
-
ECG 5 Click

mikroBUS
ECG 5 Click

ECG 5 click can be used for the development of ECG and Heart-Rate (HR) applications. The Click board™ features the AD8232, an integrated bio-signal front end. This IC has many features necessary for providing accurate ECG measurements, including very high common-mode rejection ratio, high gain with DC blocking capability, adjustable high-pass and low-pass filters, integrated right leg drive (RLD), etc. Electrodes presence detection pin helps to reduce the overall power consumption, as it can be used to set the standby mode of the host MCU. The fully conditioned bio-signal is available at the analog output to be sampled by an external A/D converter.

ECG 5 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R715  Qty:
Price ex. VAT. Weight: 18g. Stock: Lead-time applicable [i]. mikroE Icon
-
EMG click

mikroBUS
EMG click EMG click measures the electrical activity produced by the skeletal muscles. It carries MCP609 operational amplifier and MAX6106 micropower voltage reference. EMG click is designed to run on a 5V power supply. The click board™ has an analog output (AN pin).
R595  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
EMG click bundle

mikroBUS
EMG click bundle EMG click bundle - measure the electrical activity of muscles.
R1,200  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon
-
GSR click

mikroBUS
GSR click

GSR click can be used to measure the electrodermal activity (EDA) of the human body, also known as the galvanic skin response (GSR). EDA is actually the property of the human body that causes continuous variation in the electrical characteristics of the skin. EDA monitoring is usually combined with the monitoring of the heart rate, respiratory rate, and blood pressure, giving a complete insight into some of the parameters of the autonomous nervous systems of the human body.

EDA measurement is a component of modern polygraph devices, often used as lie detectors. Recent research reveals that there is more to EDA than it seems, so the studies continue in that direction. GSR click is ideally suited to be used as the research and experimenting tool, as well as for building useful test applications based on the EDA response - such as the polygraphs.

R500  Qty:
Price ex. VAT. Weight: 23g. Stock: Lead-time applicable [i]. mikroE Icon
-

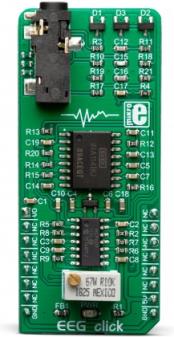

EEG Click

mikroBUS
EEG Click

EEG Click is a Click board™ that allows monitoring of brain activity. Although not suitable for clinical examination, it is quite sufficient to allow some insight into brain activity. EEG click is equipped with a high-sensitivity circuit which amplifies faint electrical signals from the brain, allowing them to be sampled by a host MCU. To allow sufficiently high gain with no interferences, EEG click uses the INA114, a precision instrumentation amplifier, LASER trimmed for very low offset voltage, featuring very good common mode rejection ratio. This Click board™ can be used with the set of silver-chloride electrodes.

EEG click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

R940  Qty:
Price ex. VAT. Weight: 27g. Stock: Lead-time applicable [i]. mikroE Icon
-
