IR Sense click (Go to Parent Category)

IR Sense click IR Sense click carries the AK9750 quantum-type IR sensor. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over I2C interface, with additional functionality provided by the INT pin on the mikroBUS™ line.
R560  Qty:
Price ex. VAT. Weight: 22g. Stock: Lead-time applicable [i]. mikroE Icon


IR Sense click carries the AK9750 quantum-type IR sensor. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over I2C interface, with additional functionality provided by the INT pin on the mikroBUS??? line.

IR Sense cilck detects the temperature of objects and people in motion. It can also detect a human body that remains still. So, it distinguishes heat regardless of the fact whether or not an object is moving.

AK9750 features

The AK9750 is an ultra-low power and compact infrared-ray (IR) sensor module. It is composed of four quantum IR sensors and an integrated circuit (IC) for characteristic compensation.

An integral analog-to-digital converter provides 16-bits data outputs. Additional integrated features include a field of view limiter and an optical filter.

How it works

The IR sensors are arranged as shown. Each sensor detects the diagonal area, as indicated in the image below:

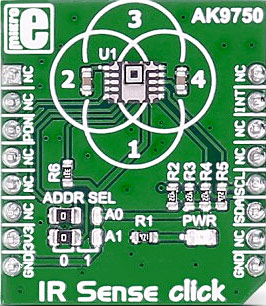

The observable area of the four sensors is as you see it on the silk of the IR Sense click board???.

Specifications

Type Temperature,Humidity
Applications Detecting heat with the four IR sensors
On-board modules AK9750 IR sensor
Key Features Low current consumption: Max. 1??A in Power down Mode; Integrated temperature sensor, 16-bits Digital Outputs to I2C bus
Interface I2C
Input Voltage 3.3V
Click board size S (28.6 x 25.4 mm)

Pinout diagram

This table shows how the pinout on IR Sense click corresponds to the pinout on the mikroBUS??? socket (the latter shown in the two middle columns).

NotesPinMikrobus logo.pngPinNotes
ALR 1 AN PWM 16 NC
NC 2 RST INT 15 INT  Interrupt
Power down pin PDN 3 CS TX 14 NC
NC 4 SCK RX 13 NC
NC 5 MISO SCL 12 SCL SCL I2C line
NC 6 MOSI SDA 11 SDA SDA I2C line
Power supply +3.3V 7 3.3V 5V 10 NC
Ground GND 8 GND GND 9 GND Ground

Jumpers and settings

DesignatorNameDefault PositionDefault OptionDescription
A0 A0 Left 0 Selection of I2C address bit 0
A1 A1 Left 1 Selection of I2C address bit 1

Programming

Code examples for IR Sense click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

The following code snippet shows the main loop of the IR Sense click example, which reads data every few second and then displays it via UART.

01  while( 1 )
02     {
03         Delay_ms (5000);
04
05
06        IRGRID2_readAll (readData);
07
08        //Upper area sensor value
09         UART2_Write_Text ("rn      ");
10         tempValue = readData [5] + ( readData [6] << 8 );
11         IntToStr (tempValue, uartText);
12         UART2_Write_Text (uartText);
13
14        //Left area sensor value
15         UART2_Write_Text ("rn");
16         tempValue = readData [3] + ( readData [4] << 8 );
17         IntToStr (tempValue, uartText);
18         UART2_Write_Text (uartText);
19         //Right area sensor value
20         UART2_Write_Text ("     ");
21         tempValue = readData [7] + ( readData [8] << 8 );
22         IntToStr (tempValue, uartText);
23         UART2_Write_Text (uartText);
24
25         //Lower area sensor value
26          UART2_Write_Text ("rn      ");
27         tempValue = readData [1] + ( readData [2] << 8 );
28         IntToStr (tempValue, uartText);
29         UART2_Write_Text (uartText);
30         UART2_Write_Text ("rn-------------");
31     }
