Quail Board (Go to Parent Category)

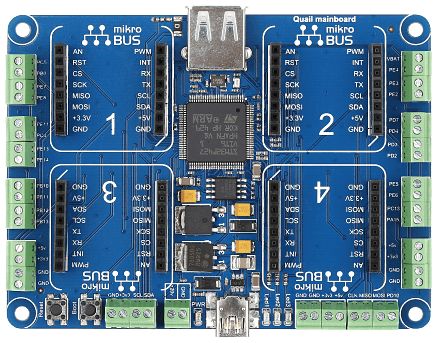

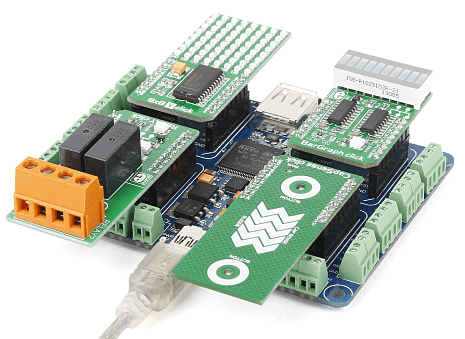

Quail Board Quail is an STM32-powered development solution for building hardware prototypes with click boards and C# managed code. It brings together click boards and Microsoft's .NET Micro Framework for embedded devices (NETMF). Write code for your Quail projects in Microsoft Visual Studio (free in the community edition); drivers for individual click boards are provided by the MikroBUS.NET team. Hardware-wise, Quail has 4 mikroBUS sockets for click board connectivity, along with 24 screw terminals for connecting additional electronics and two USB ports (one for programming, the other for external mass storage). The board runs on a 5V power supply.
On SpecialOn SpecialOn Special R535  R765  Qty:
Price ex. VAT. Est. Weight: 125g. Stock: 1 available immediately [i]. mikroE Icon

Technical Specification
Quail is produced by MikroElektronika, but the idea and design of the board was done by MikroBUS.NET, a team of software and hardware professionals from France. The core idea behind Quail was to empower embedded developers with the same modern tools and technologies used by those who develop desktop applications. On the flip-side, Quail also allows desktop .NET programmers to delve into the world of hardware development, with ease. For more information about the MikroBUS.NET team, visit their site.

  • STM32F427 MCU, 168mhz, 2MB, Flash 256KB RAM.
  • 4x mikroBUS sockets.
  • 24x GPIO screw terminals.
  • USB port for prog/power.
  • USB port for external mass storage.
  • Additional 8MB Flash memory.
  • 5V power supply.

Software Requirements
Quail requires three pieces of software to run:

click board drivers and starting your first Quail project
The MikroBUS.NET team is constantly churning out new NETMF-compatible drivers for click boards. So far they’ve covered about 50 clicks. Once you installed all the required software you can find individual click board drivers on the official MikroBUS.NET webpage.

The website also contains a detailed walkthrough on how to start a project in Visual Studio, include the necessary drivers and reference the needed assembleys in your source code, as well as instructions for writing your own drivers.
