4DLCD-FT843 (FT800) (Go to Parent Category)

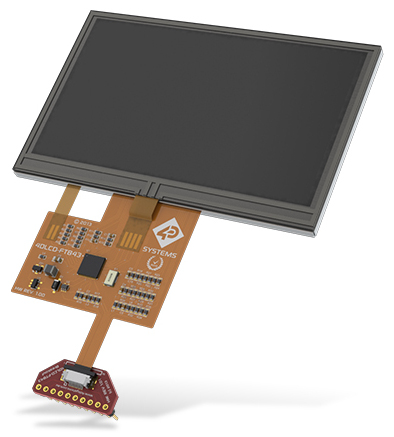

4DLCD-FT843 (FT800) The 4DLCD-FT843 features a 4.3" display with resistive touch panel, and integrated FTDI FT800 Video Engine with SPI interface. The FT800 is like a "graphics card" for microcontrollers - it offloads all the work of running a display to a separate, fast and powerful controller, making it possible to have great graphics with low-cost microcontrollers.

Note: This product uses an FFC connector. You will need either a matching connector on your board, or a breakout board, in order to connect to the display.
On SpecialOn SpecialOn Special R585  R940  Qty:
Price ex. VAT. Weight: 110g. Stock: 2 available immediately [i]. 4D Systems Icon
Breakout-board sold separately.

  • 4.3" display with 480x272px resolution and resistive touch-screen (262K colours).
  • Built-in FT800 Embedded Video Engine (EVE).
  • SPI Interface to host microcontroller.
  • Mono PWM Audio output with separate amplifier enable, designed to be connected directly to a simple filter and amplifier circuit.
  • Programmable Interrupt Controller, with dedicate interrupt pin to host.
  • Standard 10 way 0.5mm pitch FPC ribbon connector.
  • 64 voice polyphonic sound synthesizer.
  • PWM dimming control for LCD backlight.
  • 3.3V operation.
  • Module dimensions: 105.5x67.2x4.2mm (not including flex).
  • Flex length from base of display: 57.51mm.
  • Viewing area: 95.0x53.9mm.
  • Weight: approx. 50g.
