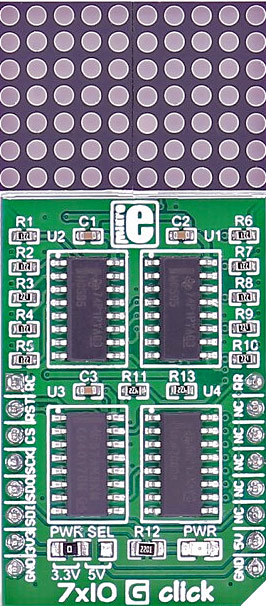

7x10 G click 7x10 G click can be used for displaying letters on a display with 7x5 font resolution. It carries a matrix of 70 green LEDs driven by a pair of 8-bit serial-in, parallel-out shift registers, a Darlington Transistor array and a Johnson counter. 7x10 G click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over SPI interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, PWM, RST.
R365  Qty:
Price ex. VAT. Weight: 34g. Stock: Lead-time applicable [i]. mikroE Icon


7x10 G click can be used for displaying letters on a display with 7x5 font resolution. It carries a matrix of 70 green LEDs driven by a pair of 8-bit serial-in, parallel-out shift registers, a Darlington Transistor array and a Johnson counter.

7x10 G click is designed to run on either 3.3V or 5V power supply.It communicates with the target microcontroller over SPI interface, with additional functionality provided by the following pins on the mikroBUS??? line: AN, PWM, RST.

How it works

7x5 is a standard resolution for displaying ASCII characters, so 7x10 click is essentially a dual character display capable of showing letters in more readable typefaces compared to a 14-segment display.

The dot matrix can also show scrolling text, thus fitting longer messages in small space. The pair of 8-bit SIPO shift registers drive the display. The current amplification necessary for driving the LEDs is performed by a Darlington Transistor array while a Johnson counter performs the necessary LED multiplex.

Specifications

Type LED Matrix
Applications 7x5 dot matrix text display for user interfaces
On-board modules SN74HC595 8-bit shift register, ULN2003ADR Darlington transistor array, CD4017BM96 CMOS counter
Key Benefits Displays letters in highly readable format, scrolling text capability
Interface SPI
Input Voltage 3.3V or 5V
Click board size L (57.15 x 25.4 mm)

Pinout diagram

This table shows how the pinout on 7x10 G click corresponds to the pinout on the mikroBUS??? socket (the latter shown in the two middle columns).

NotesPinMikrobus logo.pngPinNotes
CD4017 clock pin RC 1 AN PWM 16 RR CD4017 reset pin
74HC595 reset RST 2 RST INT 15 NC
Latch of 74HC595 CS 3 CS TX 14 NC
SPI clock pin SCK 4 SCK RX 13 NC
SPI slave data out pin SDO 5 MISO SCL 12 NC
SPI slave data in pin SDI 6 MOSI SDA 11 NC
Power supply +3.3V 7 3.3V 5V 10 +5V Power supply
Ground GND 8 GND GND 9 GND Ground


Programming

Code examples for 7x10 G click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

This code snippet shows how to display scrolling text at medium speed.

01 void S7X10G_Task()
02 {
03     bool ind;
04     static bool called = false;
05     S7X10G_clearDisplay();
06
07     // scrolls given text
08     if ( !called )
09     {
10         S7X10G_drawText( "  Mikro Elektronika" );
11         S7X10G_scrollEnable( S7X10G_SPEED_MED );
12         called = true;
13     }
14     do
15     {
16         ind = S7X10G_refreshDisplay();
17         S7X10G_tick();
18         Delay_ms( 10 );
19     } while( ind );
20     called = false;
21 }
22
23 void main()
24 {
25     systemInit();
26     while( 1 )
27     {
28         S7X10G_Task();
29     }
30 }
