70 super bright blue LEDs for displaying the most versatile set of symbols and characters

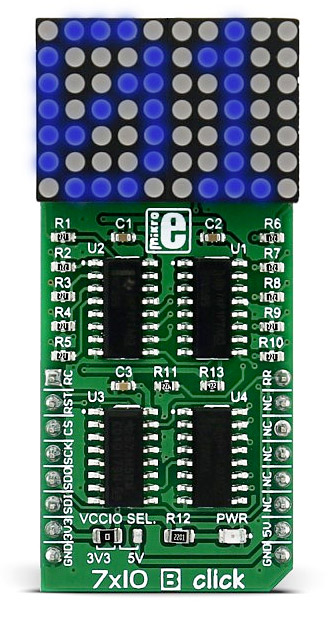

7x10 B click displays letters, numbers, and characters in a 7x5 font resolution. It carries a matrix of 70 blue LEDs driven by a pair of 8-bit serial-in, parallel-out shift registers, a Darlington Transistor array and a Johnson counter.
The display has the capability to scroll the text across the screen.
7x10 B click displays letters, numbers, and characters in a 7x5 font resolution. It carries a matrix of 70 blue LEDs driven by a pair of 8-bit serial-in, parallel-out shift registers, a Darlington Transistor array and a Johnson counter.
The click communicates with the target MCU through the mikroBUS??? SPI interface (SCK, SDO, SDI), with additional functionality provided by R CLK, MR#, LATCH and R RST pins. 7x10 B click is designed to use either a 3.3V or a 5V power supply.
How the click works
7x10 B click is essentially a dual character display capable of showing letters, numbers, and characters in more readable typefaces since the 7x5 resolution is the standard one for displaying ASCII characters. This type of resolution is more readable than the 14-segment display.
The dot matrix can also show scrolling text, thus fitting longer messages in small space. Two 74HC595 8-bit shift registers are used for driving the columns of the LED matrix separately. The 74HC595 is a 8-bit, serial-in, parallel-out shift register. The rows of the LED are connected to the decoded outputs of CD4017 through ULN2003. CD4017 is a 5-stage Johnson counter and ULN2003 is a high-voltage, high-current Darlington transistor array. The Johnson counter (CD4017) performs the necessary LED multiplex and the current amplification that's needed for driving the LEDs is performed by a Darlington Transistor array.
Specifications
Type
LED Matrix
Applications
7x5 dot matrix text display for user interfaces, for example on vending machines
On-board modules
Matrix of 70 blue LEDs driven by a pairs of 8-bit serial-in, parallel-out shift registers, a Darlington Transistor array and a Johnson counter
Key Features
Displays letters in highly readable format, scrolling text capability
Interface
GPIO,SPI
Input Voltage
3.3V or 5V
Click board size
L (57.15 x 25.4 mm)
Pinout diagram
This table shows how the pinout on 7x10 B click corresponds to the pinout on the mikroBUS??? socket (the latter shown in the two middle columns).
Notes
Pin
Pin
Notes
CD4017 clock pin
RC
1
AN
PWM
16
RR
CD4017 reset pin
74HC595 reset
RST
2
RST
INT
15
NC
Latch of 74HC595
CS
3
CS
TX
14
NC
SPI clock pin
SCK
4
SCK
RX
13
NC
SPI slave data out pin
SDO
5
MISO
SCL
12
NC
SPI slave data in pin
SDI
6
MOSI
SDA
11
NC
Power supply
+3.3V
7
3.3V
5V
10
+5V
Power supply
Ground
GND
8
GND
GND
9
GND
Ground
Jumpers and settings
Designator
Name
Default Position
Default Option
Description
JP1
VCCIO SEL.
Left
3V3
Logic level voltage and power supply selection 3V3/5V, left position 3V3, right position 5V
JP1 - this jumper allows you to select the logic level voltage for the communication lines and power supply voltage. If it's in the left position then the logic level voltage and power supply from the mikroBUS??? is 3.3V. If the jumper is in the right position the logic level voltage and power supply from the mikroBUS??? is 5V. Jumper J1 is soldered in 3.3V position by default.
Maximum ratings
Description
Min
Typ
Max
Unit
Operating Power-Supply Voltage
3.3
3.3
5
V
LEDs, Buttons, Switches, Connectors, etc.
Designator
Name
Type
Description
LD1
PWR
LED
Power LED, lights green when the power supply is established properly.
Software Support
We provide a library for the 7x10 B click on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo application can run on all the main MikroElektronika development boards.
Note: You can use our free supporting software - GLCD Font Creator, and make personalized fonts, symbols, and icons for the LED matrix onboard the click. Create fonts and symbols from scratch, or by importing existing fonts on your system. It lets you modify and adjust them for your needs, apply effects and finally export them as source code for use in mikroC, mikroBasic or mikroPascal compilers.
Library Description
The library carries all functions necessary for complete control over the 7x10 B click. There is also an additional font header file which carries 5x7 letter definitions.
Key functions
bool c7x10b_refreshDisplay( void ) - Refreshes the display; this function should be called upon as frequently as possible.
void c7x10b_drawPixel( uint8_t row, uint8_t col )- Draws single pixel on the desired location.
void c7x10b_drawText( char *text )- Writes the text; The first character is placed on the first LED matrix, and the second one is placed on the second LED matrix (if there is more than one character).
The example also carries additional functions for GPIO control which are provided during driver initialization. These functions are necessary and the implementation depends on the type of development system that is used.
Examples Description
The application is composed of three sections :
System Initialization - Initializes GPIO and SPI peripheral
Application Task - (code snippet) a demonstration of the main functions of the library. First, the text "MikroElektronika" is scrolled, then the countdown from 0 to 30. And finally random lighting up of the LEDs - using the function c7x10b_drawPixel.
