TFT PROTO 5" Capacitive (Go to Parent Category)

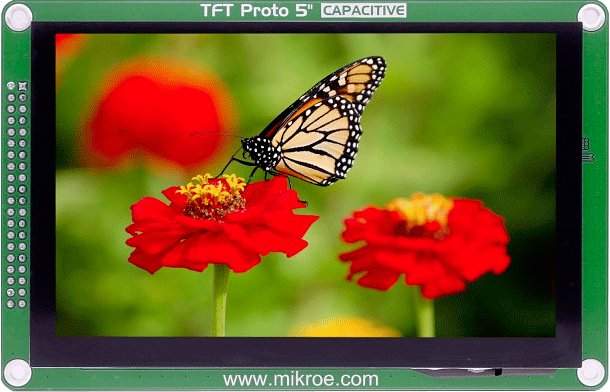

TFT PROTO 5" Capacitive TFT PROTO 5" Capacitive carries the 800x480 RVT50AQTNWC00 TFT screen. The SSD1963 display controller drives the TFT display, with a 1215K byte buffer that supports up to 864x480 at 24bpp displays.
R1,500  Qty:
Price ex. VAT. Weight: 140g. Stock: Lead-time applicable [i]. mikroE Icon


TFT PROTO 5" Capacitive carries the 800x480 RVT50AQTNWC00 TFT screen. The SSD1963 display controller drives the TFT display, with a 1215K byte buffer that supports up to 864x480 at 24bpp displays. The touchpanel is driven by a FT5x06 single-chip capacitive touch panel controller.

The board is lined with two rows of 20 pins for interfacing it with your MCU. TFT PROTO 5" Capacitive uses a 3.3V power supply only.

Capacitive screen properties

Capacitive touch screens work at the slightest touch. This type of a screen does not use the pressure of your finger to detect when the screen is touched. Capacitive screens use electrical properties of your body to detect this. Your finger causes a change in the electrical field of the touchscreen.

Keep in mind that because of this, you cannot use if you are wearing gloves.

Key features

  • Active Area (W × H): 108.00×64.80mm2
  • Backlight Type: 12 LEDs
  • Surface Luminance: 510 cd/m2
  • SSD1963 display controller
  • 3.3V power supply
