GPS Active External Antenna (Go to Parent Category)

GPS Active External Antenna

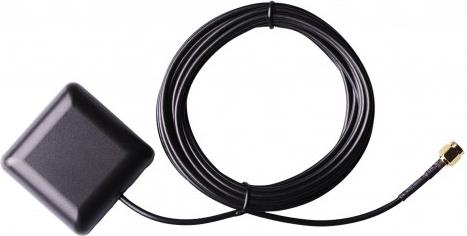

This GPS Active External Antenna is a 100% waterproof external antenna, which represents an excellent choice for all GPS/GNSS Click boards™ from our offer. With its high gain, active band filtering, and magnetized base for easy installation, it is a perfect choice when reinforced positioning is required.

R160  Qty:
Price ex. VAT. Weight: 75g. Stock: Lead-time applicable [i]. mikroE Icon


  • Frequency range: 1595.42 ± 25MHz
  • Impedance: 50?
  • VSW Ratio: <2:1
  • Gain: 30dB
  • Bandwidth: 5MHz
  • Polarization: RHCP
  • Peak Gain: > 3dBic (7×7cm ground plane)
  • Gain Coverage: > -4dBic (-90° < 0° < +90°)
  • LNA Gain: 28 dB (without cable)
  • Noise: 1.5dB
  • DC Voltage: 3 - 5V
  • Current consumption: up to 10mA
  • Cable Length Weight: 3m
  • Antenna Size: 50.5 x 50.5 x 15mm
  • Antenna Base Type: Magnetic
  • Connector Type: SMA male
  • Storage Temperature: -30°C to +75°C (100% Waterproof)

Downloads
