GPS/GLONASS/3G External Antenna (Up)

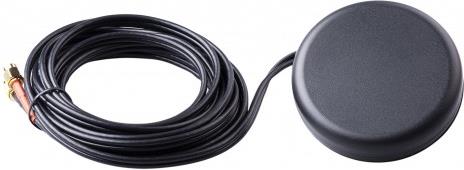

GPS/GLONASS/3G External Antenna

This GPS/GLONASS/3G Active External Antenna is an excellent choice for all GPS/GLONASS/GSM/3G Click boards™ from our offer. It offers an excellent GSM and 3G signal reception with the outstanding GPS positioning. The GLONASS positioning system signals are also available with this antenna. Featuring an active band filtering and robust design with a screw mount and adhesive on the base, it is a perfect choice when reinforced signal reception is required for both positioning and communication. It has a separate line for each feature.

R470  Qty:
Price ex. VAT. Weight: 145g. Stock: Lead-time applicable [i]. mikroE Icon


GPS/GLONASS:

  • Frequency range: 1575.42 ± 1.02MHz, 1610 ± 10MHz
  • Impedance: 50?
  • VSW Ratio: 1.5:1
  • Gain: 5dBic
  • Bandwidth: >10MHz for GPS, 20MHz for GLONASS
  • Polarization: RHCP

GSM/3G:

  • Frequency range: 850/900/1800/1900/2100MHz
  • Impedance: 50?
  • VSW Ratio: 2:1
  • Peak Gain: 1dBic (depending on frequency)
  • Bandwidth: >10MHz
  • Polarization: Linear
  • Azimuth: Omni-directional

Low Noise Amplifier:

  • LNA Range: 1595 ± 25MHz
  • LNA Gain: 27 dB (without cable)
  • Noise: 1.5dB
  • Current consumption: up to 13.5mA
  • DC Voltage: 3 – 5V
  • Cable Length: 2 x 3m
  • Connector Type: SMA male
  • Casing diameter: 75mm
  • Casing thickness: 15mm
