LTE Flat Rotation Antenna (Go to Parent Category)

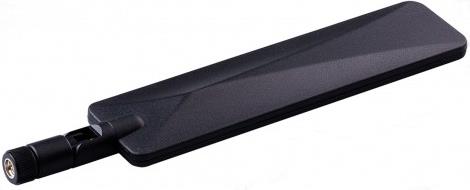

LTE Flat Rotation Antenna

This multiband LTE Flat Rotation Antenna with adjustable angle is an excellent choice for all 3G/4G LTE-based click boards from our offer, as well as other devices that require excellent throughput on all major cellular bands worldwide. The antenna has a distinctive flat surface with an SMA male connector on its end, which allows it to be mounted directly on the Click board™ or the female SMA module connector. The antenna position can be adjusted in 45° increments (0°/45°/90°).

R240  Qty:
Price ex. VAT. Weight: 45g. Stock: Lead-time applicable [i]. mikroE Icon


  • Frequency range: 700 - 2700 MHz
  • Impedance: 50?
  • VSW Ratio: <2.0:1
  • Gain: 5dB
  • Polarization: Vertical
  • Radiation: Omni
  • Max Input Power: 50W
  • Antenna Length: 196mm
  • Antenna Width: 38mm
  • Connector Type: SMA male
  • Storage Temperature: -30°C to +75°C

Downloads
