GPS/3G External Antenna (Go to Parent Category)

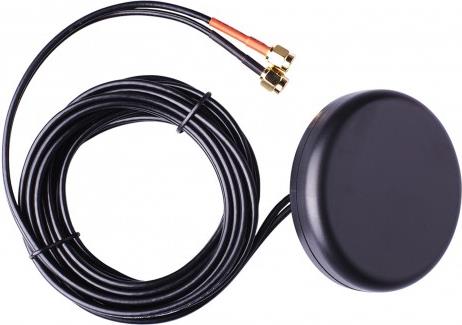

GPS/3G External Antenna

This GPS/3G External Antenna is an excellent choice for all GPS/GSM/3G Click boards™ from our offer. It offers an excellent GSM and 3G signal reception with the outstanding GPS positioning. Featuring an active band filtering and robust design with a screw mount and adhesive on the base, it is a perfect choice when reinforced signal reception is required for both positioning and communication. It has a separate line for each feature.
R615  Qty:
Price ex. VAT. Weight: 130g. Stock: Lead-time applicable [i]. mikroE Icon


GPS:

  • Frequency range: 1575.42 ± 1.02MHz
  • Impedance: 50?
  • VSW Ratio: 1.5:1
  • Gain: 5dBic
  • Bandwidth: >10MHz
  • Polarization: RHCP

GSM/3G:

  • Frequency range: 850/900/1800/1900/2100MHz
  • Impedance: 50?
  • VSW Ratio: 2:1
  • Peak Gain: 1 – 1.5dBic (depending on frequency)
  • Bandwidth: >10MHz
  • Polarization: Linear
  • Azimuth: Omni-directional

Low Noise Amplifier:

  • Frequency range: 1575.42 ± 1.02MHz
  • LNA Gain: 27 dB (without cable)
  • Noise: 1.5dB
  • Current consumption: up to 10.5mA
  • DC Voltage: 3 - 5V
  • Cable Length: 2 x 3m
  • Connector Type: SMA male
  • Casing diameter: 75mm
  • Casing thickness: 15mm

Downloads

GPS/3G External Antenna Datasheet
