ADC potentiometers
You can simulate analog inputs using two provided analog potentiometers which can be connected to each of the 10 supported microcontroller analog input pins.
GLCD/LCD Backlight
GLCD and LCD backlight can be driven with PWM signal from the microcontroller, or they can be turned on in full brightness.
DS1820 Temp Sensor
Board supports Dallas DS1820 One-Wire digital temperature sensor. You can measure temperatures from -55C to +125C (-67F to +257F), with 0.5C accuracy.
Dual Power Supply
Board is equipped with power supply unit capable of supporting both 3.3V and 5V microcontrollers. Board can be powered over USB cable, or external adapter connectors.
Ethernet Connector
Microcontrollers with internal ethernet support can be connected to this RJ-45 connector to establish ethernet communication.
GLCD 128x64 pixels
You can place GLCD 128x64 display directly on the board and firm it in place securely using high-quality plastic distancer, specially designed for this purpose.
GLCD contrast potentiometer
This potentiometer allows you to adjust the contrast level of the pixels on your GLCD 128x64 display.
I2C EEPROM
You can store 8x256 bytes of configuration data or other data into on-board 24AA01 Serial EEPROM with I2C interface.
ICD2/ICD3 connector
If you need to use other external programmer with EasyPIC PRO v7 an ICD2/ICD3 compatible connector has been provided, so you can override the on-board mikroProg.
PORT Headers
An IDC10 port header is available in each Input/Output group.
LCD 2x16 characters
Board is equipped with LCD 2x16 connector which allows you to connect LCD 2x16 display and place it securely using plastic distancer, specially designed for this purpose.
LCD contrast potentiometer
This potentiometer allows you to adjust the contrast level of the pixels on your LCD 2x16 character display.
LM35 Temp Sensor
The LM35 is a low-cost precision integrated-circuit analog temperature sensor. It can measure temeperatures from -55C to +150C with 0.25C accuracy at room temperatures.
MCU card
Featuring nanoWatt XLP Technology, PIC18F87K22 is great 8-bit microcontroller with lots of peropherals. It has 128KB of program memory, 3862 bytes of RAM and up to 16 MIPS operation.
mikroBUS socket 1
EasyPIC PRO™ v7 provides three mikroBUS sockets for mikroElektronika Click accessory Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroBUS socket 2
EasyPIC PRO™ v7 provides three mikroBUS sockets for mikroElektronika Click accessory Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroBUS socket 3
EasyPIC PRO™ v7 provides three mikroBUS sockets for mikroElektronika Click accessory Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroProg™
On-board mikroProg™ In-Circuit Debugger and programmer is supports over 250 microcontrollers from Microchip.
Programmer USB connector
Programmer USB connector is connected to on-board mikroProg, but can also be used to power the board, when the J2 jumper in the Power Supply section is in the USB position.
Oscilloscope GNDs
Three separate GND pins are available on the board for easier connection of GND reference for oscilloscope probes.
Output Voltage Terminals
Board features two pairs of high-quality screw terminals meant to be used as an output of the on-board dual power supply module. Use them to power your additional 5V and 3.3V devices.
Piezo Buzzer
With piezo buzzer you can debug your applications, or have audio signalization feature. It can be connected to two digital output pins, one of which is the output of PWM module.
Reset Button
High quality reset button with surrounding reset circuitry ensures stable reset operation.
Right PORT Headers
Additional PORT headers are provided on the right side of the board.
SMD LEDs
Each Input/Output PORT group contains red SMD LEDs with low current consumption of only 1mA. Board contains total of 72 LEDs for PORT pins.
Touch Panel Controller
Touch panel controller with connector is provided for analog resistive touch panels attached to the GLCD 128x64 to form GLCD Touch screen.
Tri-state DIP switches
Tri-state DIP switches are used to enable 4K7 pull-up or pull-down resistor on ony desired PORT pin.
USB device connector
USB Device Connector is used for connecting the board with other devices such as PC using fast USB 2.0 communication.
USB-UART Connector
Fast on-board FTDI chip with USB connector, allows you to communicate with a PC or other UART devices using USB-UART connection.
RS-232 Connector
You can implement UART communication through RS-232 connector provided on the board.

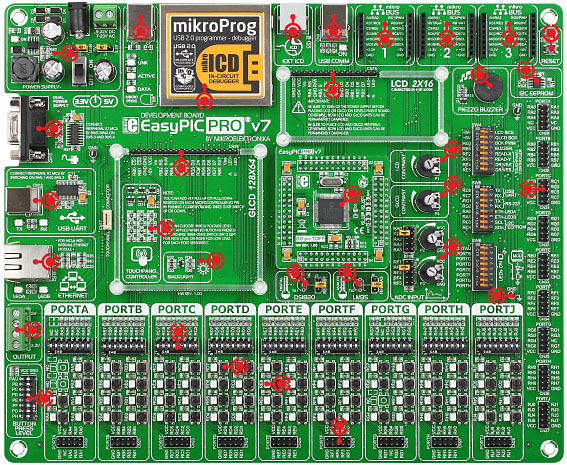

Up-Close
