4-digit 7-seg display
Driving 7-segment displays is fun! EasyPIC™ v7 for dsPIC30® provides 4-digit display for your applications.
ADC potentiometers
You can simulate analog inputs using two provided analog potentiometers which can be connected to each of the 7 supported microcontroller analog input pins.
GLCD/LCD Backlight
GLCD and LCD backlight can be driven with PWM signal from the microcontroller, or they can be turned on in full brightness.
CAN Support
Board contains MCP2551 CAN controller chip connected to screw terminal connector. This way you can implement industry-standard CAN communication with your device.
Crystal oscillator
10Mhz oscillator circuit that provides external clock is connected to microcontroller osc pins.
DS1820 Temp Sensor
Board supports Dallas DS1820 One-Wire digital temperature sensor. You can measure temperatures from -55C to +125C (-67F to +257F), with 0.5C accuracy.
dsPIC30F4013
With just enough RAM and Flash, dsPIC4013 microcontroller will provide you with enough power for most of your DSP projects.
Touchpanel connector
Additional 4-wire touchpanel connector is available for connection with EasyTFT board.
GLCD 128x64 pixels
You can place GLCD 128x64 display directly on the board and firm it in place securely using high-quality plastic distancer, specially designed for this purpose.
GLCD contrast potentiometer
This potentiometer allows you to adjust the contrast level of the pixels on your GLCD 128x64 display.
I2C EEPROM
You can store 8x256 bytes of configuration data or other data into on-board 24AA01 Serial EEPROM with I2C interface.
ICD2/ICD3 connector
If you need to use other external programmer with EasyPIC v7 for dsPIC30, an ICD2/ICD3 compatible connector is provided, so you can override the on-board mikroProg.
PORT Headers
Two male IDC10 port headers are available in each Input/Output group, which is convenient for easier access to any PORT pin.
LCD 2x16 characters
Board is equipped with LCD 2x16 connector which allows you to connect LCD 2x16 display and place it securely using plastic distancer, specially designed for this purpose.
LCD contrast potentiometer
This potentiometer allows you to adjust the contrast level of the pixels on your LCD 2x16 character display.
Left PORT Headers
Additional PORT headers are provided on the left side of the board, so you can now access the desired microcontroller pins on the other side of the board too.
LM35 Temp Sensor
The LM35 is a low-cost precision integrated-circuit analog temperature sensor. It can measure temeperatures from -55C to +150C with 0.25C accuracy at room temperatures.
mikroBUS socket 1
EasyPIC v7 for dsPIC30 provides two mikroBUS sockets for mikroElektronika Click Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroBUS socket 2
EasyPIC v7 for dsPIC30 provides two mikroBUS sockets for mikroElektronika Click Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroProg™
On-board mikroProg™ In-Circuit Debugger and programmer supports every dsPIC30® microcontroller in DIP packaging.
Oscilloscope GNDs
Three separate GND pins are available on the board for easier connection of GND reference for oscilloscope probes.
Piezo Buzzer
With piezo buzzer you can debug your applications, or have audio signalization feature. It can be connected to two digital output pins, one of which is the output of PWM module.
Dual Power Supply
Board is equipped with power supply unit capable of supporting both 3.3V and 5V microcontrollers. Board can be powered over USB cable, or external adapter connectors.
Programmer USB connector
Programmer USB connector is connected to on-board mikroProg, but can also be used to power the board, when the J8 jumper in the Power Supply section is in the USB position
Reset Button
High quality reset button with surrounding reset circuitry ensures stable reset operation.
RS-232 Connector
You can implement UART communication through RS-232 connector provided on the board.
SMD LEDs
Each Input/Output PORT group contains red SMD LEDs with low current consumption of only 1mA. Board contains total of 42 LEDs for PORT pins.
Socket Selection Jumpers
These jumpers are used to connect mikroProg debugger lines to the approprite DIP socket where your microcontroller is located.
Touch Panel Controller
Touch panel controller with connector is provided for analog resistive touch panels attached to the GLCD 128x64 to form GLCD Touch screen.
Tri-state DIP switches
Tri-state DIP switches are used to enable 4K7 pull-up or pull-down resistor on ony desired PORT pin.
USB-UART Connector
FTDI chip allows your board to be connected with a PC through USB cable over UART connection.
Voltage Reference
You can select to provide external voltage reference to RB0 pin which can be either 4.096V or VCC.

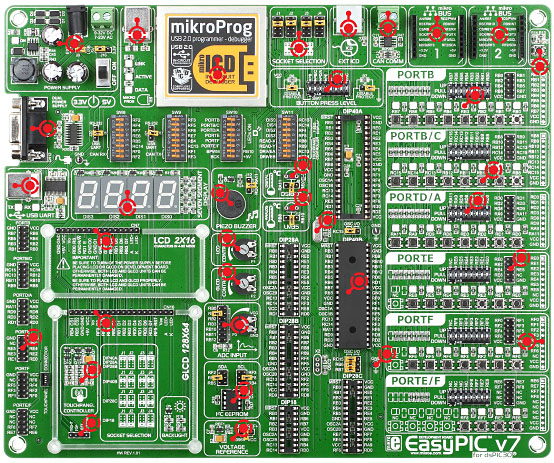

Up-Close
Hover your mouse over different parts of the board in order to view the details up-close.
