PORT Headers
Two male IDC10 port headers are available in each Input/Output group, which is convenient for easier access to any PORT pin.
Right PORT Headers
Additional PORT headers are provided on the right side of the board, so you can access the desired microcontroller pins on that side of the board too.
ADC potentiometers
You can simulate analog inputs using two provided analog potentiometers which can be connected to each of the 10 supported microcontroller analog input pins.
Audio connectors
Audio connectors enable you to connect headphones and microphone with the audio codec chip and use it in your applications.
CAN support
Board contains MCP2551 CAN controller chip connected to screw terminal connector. This way you can implement industry-standard CAN communication with your device.
DS1820 Temp Sensor
Board supports Dallas DS1820 One-Wire digital temperature sensor. You can measure temperatures from -55C to +125C (-67F to +257F), with 0.5C accuracy.
EasyTFT Board
EasyTFT is delivered with the board. It contains 320x240 TFT Color Display with Touch Panel can display vivid and clear color images or advanced graphic content.
Ethernet Connector
Microcontrollers with internal ethernet support can be connected to this RJ-45 connector to establish ethernet communication.
ICD2/ICD3 connector
If you need to use other external programmer with EasyPIC Fusion v7, an ICD2/ICD3 compatible connector is provided, so you can override the on-board mikroProg.
Navigation switch
Navigation switch can be used for handling the on-screen menus or as a generic input device.
LM35 Temp Sensor
The LM35 is a low-cost precision integrated-circuit analog temperature sensor. It can measure temeperatures from -55C to +150C with 0.25C accuracy at room temperatures.
MCU Socket
Board contains 104-pin MCU socket for placing MCU cards which carry supported PIC32, dsPIC33 and PIC24 microcontrollers in 100-pin TQFP packaging.
microSD card slot
microSD Card slot allows you to store large ammounts of data externally on microSD card using fast SPI communication.
mikroBUS socket 1
EasyPIC Fusion™ v7 provides two mikroBUS™ sockets for mikroElektronika Click™ Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroBUS socket 2
EasyPIC Fusion™ v7 provides two mikroBUS™ sockets for mikroElektronika Click™ Boards. mikroBUS provides simple and effective Plug-and-Play connectivity solution.
mikroProg
On-board mikroProg™ In-Circuit Debugger and programmer is supports over 65 dsPIC33, PIC24 and PIC32 microcontrollers from Microchip®
Oscilloscope GNDs
Three separate GND pins are available on the board for easier connection of GND reference for oscilloscope probes.
Piezo Buzzer
With piezo buzzer you can debug your applications, or have audio signalization feature. It can be connected to two digital output pins, one of which is the output of PWM module.
3.3V power Supply
Board is equipped with power supply unit capable of supporting 3.3V microcontrollers and peripherals. Board can be powered over USB cable, or external adapter connectors.
Programmer USB connector
Programmer USB connector is connected to on-board mikroProg™, but can also be used to power the board, when the J9 jumper in the Power Supply section is in the USB position.
Reset Button
High quality reset button with surrounding reset circuitry ensures stable reset operation.
I2C EEPROM
You can store 8x256 bytes of configuration data or other data into on-board 24AA01 Serial EEPROM with I2C interface.
Serial Flash
Store up to 8 Mbit of data in M25P80 Serial Flash Memory with 25 MHz SPI Bus Interface. It suports over 100,000 Erase/Program Cycles per Sector and has over 20 Year Data Retention.
SMD LEDs
Each Input/Output PORT group contains red SMD LEDs with low current consumption of only 1mA. Board contains total of 36 LEDs for PORT pins.
Tri-state DIP switches
Tri-state DIP switches are used to enable 4K7 pull-up or pull-down resistor on ony desired PORT pin.
USB device connector
USB Device Connector is used for connecting the board with other devices such as PC using fast USB 2.0 communication.
USB host connector
USB Host Connector enables your device to behave as USB host. You can communicate with other USB slave devices, such as Flash Sticks, cameras, mp3 players and more.
USB-UART 1 Connector
Fast on-board FTDI chip with USB connector, allows you to communicate with a PC or other UART devices using USB-UART connection.
USB-UART 2 Connector
Fast on-board FTDI chip with USB connector, allows you to communicate with a PC or other UART devices using USB-UART connection.
Stereo MP3 codec
VS1053 MPEG audio codec with SPI interface is available for audio input and output. Codec supports many compression file formats.

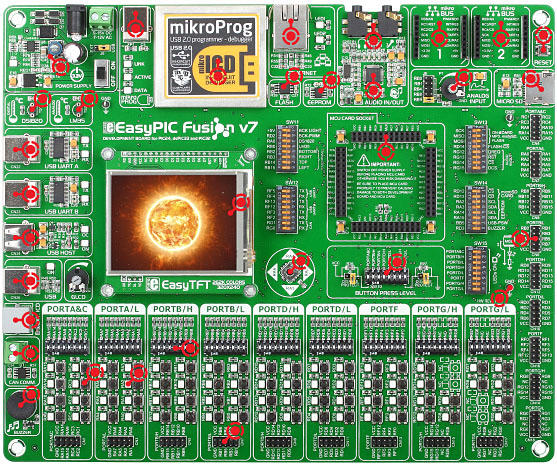

Up-Close
Hover your mouse over different parts of the board in order to view the details up-close.
