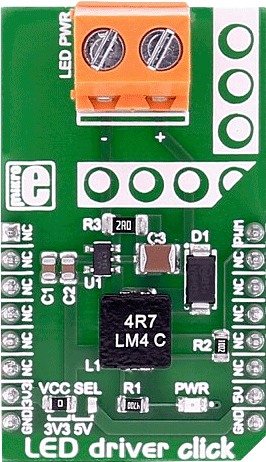

LED driver click carries the MCP1662 high-voltage step-up voltage driver from Microchip. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over PWM pin on the mikroBUS™ line.
MCP1662 MCU features
The MCP1662 device is a compact, space-efficient, fixed-frequency, non-synchronous step-up converter optimized to drive LED strings with a constant current from a two- or three-cell alkaline or lithium Energizer®, or NiMH/NiCd, or one-cell Lithium-Ion or Li-Polymer batteries.
The device integrates a 36V, 800 mW low-side switch, which is protected by the 1.3A cycle-by-cycle inductor peak current limit operation.
How it works
LED driver click has a power input and a PWM input, so the LED lights can be dimmed. It's a great choice for driving LED strips.
Specifications
On-board modules |
MCP1662 High-Voltage Step-Up LED Driver |
Key Features |
Open Load Protection, Overtemperature Protection, Input Voltage Range: 2.4V to 5.5V |
Interface |
PWM |
Power Supply |
3.3V or 5V |
Click board size |
M (42.9 x 25.4 mm) |
Pinout diagram
This table shows how the pinout on LED driver click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
Notes | Pin | | Pin | Notes |
---|
|
NC |
1 |
AN |
PWM |
16 |
PWM |
PWM input |
|
NC |
2 |
RST |
INT |
15 |
NC |
|
|
NC |
3 |
CS |
TX |
14 |
NC |
|
|
NC |
4 |
SCK |
RX |
13 |
NC |
|
|
NC |
5 |
MISO |
SCL |
12 |
NC |
|
|
NC |
6 |
MOSI |
SDA |
11 |
NC |
|
Power supply |
+3.3V |
7 |
3.3V |
5V |
10 |
+5V |
Power supply |
Ground |
GND |
8 |
GND |
GND |
9 |
GND |
Ground |
Maximum ratings
Description | Min | Typ | Max | Unit |
---|
Supply Voltage |
2.4 |
|
5.5 |
V |
Max Out Voltage |
|
|
32 |
V |
Max Out Current 4.2V Vin 8 LEDs |
100 |
|
|
mA |
Max Out Current 3.3V Vin 4 LEDs |
125 |
|
|
mA |
Max Out Current 5.0V Vin 4 LEDs |
200 |
|
|
mA |
Programming
Code examples for LED driver click, written for MikroElektronika hardware and compilers are available on Libstock.
Code snippet
The following code snippet shows the LED driver click example, which initializes ADC and PWM and sets the PWM output depending on the potentiometer analog input.
01 void systemInit()
02 {
03 TRISC = 0; // designate PORTC pins as output
04 LATC = 0; // set PORTC to 0
05 PWM2_Init( 5000 ); // Initialize PWM2 module at 5KHz
06 }
07
08 void main()
09 {
10 systemInit();
11 currentDuty = 0;
12 PWM2_Start();
13 PWM2_Set_Duty(currentDuty);
14
15 while ( 1 ) // Playing with Potentiometer P1 you can control current PWM duty cycle
16 {
17 currentDuty = ADC_Read(1) & 0x0000FFFF; // Read 10 - bit ADC value and set newly acquired 8 - bit PWM duty
18 currentDuty = currentDuty / 4;
19 PWM2_Set_Duty(currentDuty ); // Set newly acquired duty
20 }
21
22 }
