Accelerometer
On-board ADXL345 Digital Accelerometer allows you to measure acceleration.
Audio Connector
Plug-in your headphones and listen to audio output from mp3 decoder circuit.
Battery Charger
MCP73832 Battery Charger circuit enables you to charge your Li-Polymer battery directly from USB port.
Battery Connector
Li-Polymer battery connector allows you easier connection with your battery. Autonomous power supply will give your mikromedia the wings it deserves.
Crystal Oscillator
8Mhz crystal oscillator circuit that provides external clock is connected to microcontroller osc pins.
Frontal Reset Button
If you place battery shield or integrate your board so that only front TFT is accessible, this reset button can be very handy.
ICD2/3 connector
Pads for connecting ICD2/3 connector board and programimg the MCU with external programmer.
Microcontroller
Beginners won't have to worry. PIC18F87J50 is simple enough for code writing and you'll still have MCUs with up to 12 MIPS and Full Speed USB 2.0
microSD card slot
microSD Card slot allows you to store large amounts of data externally on microSD card using fast SPI communication.
mikroProg connector
Pads for connecting and programming the board with mikroProg for PIC external programmer.
Stereo MP3 codec
VS1053 MPEG audio decoder with SPI interface for fast reproduction of MP3 files.
Connection pads
Every unsused microcontroller pin is available through connection pads. They can be used to connect your mikromedia board with additional shields or accessory boards.
Power LED
We have added power indicator LED, so you can be sure whether your board has stable power supply.
Power Regulator
On-Board power regulator ensures that each part of the board get the right voltages.
Reset Button
High quality reset button with surrounding reset circuitry ensures stable reset operation.
Serial Flash
Store up to 8 Mbit of data in M25P80 Serial Flash Memory with 25 MHz SPI Bus Interface. It suports over 100,000 Erase/Program Cycles per Sector.
TFT with Touch Panel
320x240 TFT Color Display with Touch Panel can display vivid and clear color images or advanced graphic content.
miniUSB connector
PIC18F87J50 with USB OTG support, allows you to communicate with a PC or other USB devices using USB connection.
Up-Close

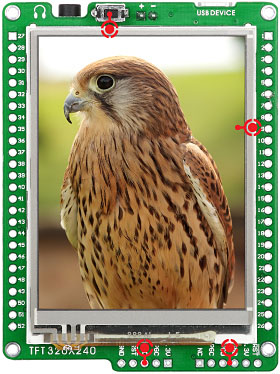

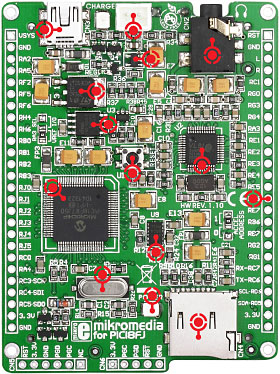

Hover your mouse over different parts of the board in order to view the details up-close.
