Accelerometer
On-board ADXL345 Digital Accelerometer allows you to measure acceleration.
Audio Connector
Plug-in your headphones and listen to audio output from mp3 decoder circuit.
Battery Charger circuit
MCP73832 Battery Charger circuit enables you to charge your Li-Polymer battery directly from USB port.
Battery connector
Li-Polymer battery connector allows you easier connection with your battery. Autonomous power supply will give your mikromedia the wings it deserves.
Crystal Oscillator
8Mhz crystal oscillator circuit that provides external clock is connected to microcontroller osc pins.
Frontal Reset Button
If you place battery shiled or integrate your board so that only front TFT is accessible. This reset button can be very handy.
FTDI chip
FTDI chip allows your mikromedia board to be connected with a PC through USB cable over UART connection.
ICD2/3 connector
Pads for connecting ICD2/3 connector board and programimg the MCU with external programmer.
Microcontroller
dsPIC33FJ256GP710A is an exceptional 16-bit MCU. Stunning 40 MIPS power, hardware multiplier and divider, DMA controller and stunning set of integrated modules.
microSD card slot
microSD Card slot allows you to store large ammounts of data externally on microSD card using fast SPI communication.
mikroProg connector
Pads for connecting and programming the board with mikroProg for PIC external programmer
Stereo MP3 codec
VS1053 MPEG audio decoder with SPI interface for fast reproduction of MP3 files.
Connection pads
Every unsused microcontroller pin is available through connection pads. They can be used to connect your mikromedia board with additional shields or accessory boards.
Power LED
A power indicator LED is included, so you can be sure whether your board has stable power supply.
Power Regulator
On-Board power regulator ensures that each part of the board get the right voltages.
Reset Button
High quality reset button with surrounding reset circuitry ensures stable reset operation.
Serial Flash
Store up to 8 Mbit of data in M25P80 Serial Flash Memory with 25 MHz SPI Bus Interface. It suports over 100,000 Erase/Program Cycles per Sector and has over 20 Year Data Retention.

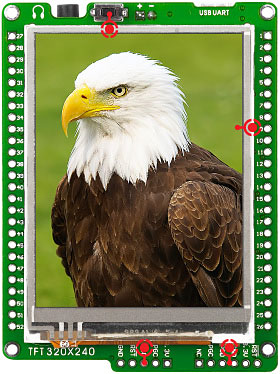

TFT with Touch Panel
320x240 TFT Color Display with Touch Panel can display vivid and clear color images or advanced graphic content.
miniUSB UART connector
Fast on-board FTDI chip with USB connector, allow you to communicate with a PC or other UART devices using USB-UART connection.

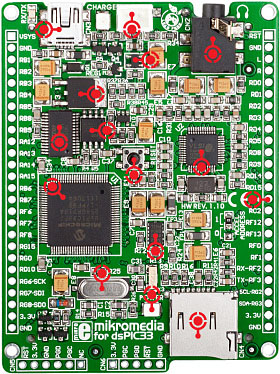

Up-Close
Hover your mouse over different parts of the board in order to view the details up-close.
