Accelerometer
On-board ADXL345 Digital Accelerometer allows you to measure acceleration.
Audio Connector
Plug-in your headphones and listen to audio output from mp3 decoder circuit.
Battery Charger circuit
MCP73832 Battery Charger circuit enables you to charge your Li-Polymer battery directly from USB port.
Battery connector
Li-Polymer battery connector allows you easier connection with your battery. Autonomous power supply will give your mikromedia the wings it deserves.
Connection pads
Every unsused microcontroller pin is available through connection pads. They can be used to connect your mikromedia board with additional shields or accessory boards.
Frontal Reset Button
If you place battery shield or integrate your board so that only front TFT is accessible, this reset button can be very handy.
FTDI chip
FTDI chip allows your mikromedia board to be connected with a PC through USB cable over UART connection.
Microcontroller
Having lots of MIPS power, just enough flash and RAM, and rich set of inegrated modules, ATxmega128A1 is ideal choice for both beginners and professionals.
microSD card slot
microSD Card slot allows you to store large ammounts of data externally on microSD card using fast SPI communication.
miniUSB connector
Fast on-board FTDI chip with USB connector, allow you to communicate with a PC or other UART devices using USB-UART connection.
Stereo MP3 codec
VS1053 MPEG audio decoder with SPI interface for fast reproduction of MP3 files.
PDI connector
Your can program the board using external PDI In-Serial programmer. Connector is compatible with most popular ISP programmers on the market.
Power LED
A power indicator LED is included, so you can be sure whether your board has stable power supply.
Power Regulator
On-Board power regulator ensures that each part of the board get the right voltages.
Reset Button
High quality reset button with surrounding reset circuitry ensures stable reset operation.
32.768kHz Crystal Oscillator
32.768kHz crystal oscillator is provided as external clock for internal RTCC module.
Serial Flash Memory
Store up to 8 Mbit of data in M25P80 Serial Flash Memory with 25 MHz SPI Bus Interface. It suports over 100,000 Erase/Program Cycles per Sector and has over 20 Year Data Retention.
TFT with Touch Panel
320x240 TFT Color Display with Touch Panel can display vivid and clear color images or advanced graphic content.

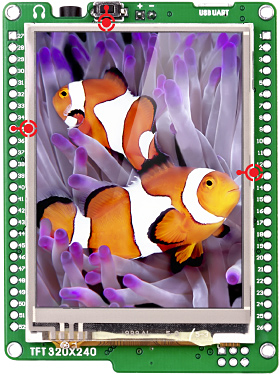

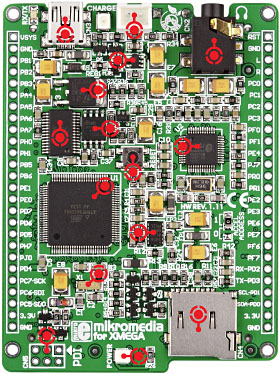

Up-Close
Hover your mouse over different parts of the board in order to view the details up-close.
