Accelerometer
On-board ADXL345 Digital Accelerometer allows you to measure acceleration.
Audio connector
Plug-in your headphones and listen to audio output from mp3 decoder circuit.
Battery Charger circuit
MCP73832 Battery Charger circuit enables you to charge your Li-Polymer battery directly from USB port.
Battery connector
Li-Polymer battery connector allows you easier connection with your battery. Autonomous power supply will give your mikromedia the wings it deserves.
Connection pads
Every unused microcontroller pin is available through connection pads. They can be used to connect your mikromedia board to additional shields or accessory boards.
Cortex Debug connector
The Cortex Debug Connector supports JTAG debug, Serial Wire debug and Serial Wire Viewer operations (via SWD connection when Serial Wire debug mode is used).
Crystal Oscillator
16Mhz crystal oscillator circuit that provides external clock is connected to microcontroller osc pins.
Serial Flash Memory
Store up to 8 Mbit of data in M25P80 Serial Flash Memory with 25 MHz SPI Bus Interface. It suports over 100,000 Erase/Program Cycles per Sector and has over 20 Year Data Retention.
Frontal Reset Button
If you place battery shield or integrate your board so that only front TFT is accessible, this reset button can be very handy.
TM4C123GH6PZ
Powerful TM4C123GH6PZ 32-bit microcontroller with ARM Cortex-M4 core, operating at 80-MHz; 100 DMIPS performance, 256 KB single-cycle Flash memory; 32 KB single-cycle SRAM, 2KB EEPROM, and more.
microSD card slot
microSD Card slot allows you to store large ammounts of data externally on microSD card using fast SPI communication.
mikroProg connector
Pads for connecting and programming the board with mikroProg for Tiva™ C Series programmer.
miniUSB connector
Microcontroler supports Full Speed and USB 2.0 OTG, so this connector allows you to communicate with a PC or other USB devices using USB connection.
Stereo Audio codec
VS1053 MPEG audio decoder with SPI interface for fast reproduction of Ogg Vorbis / MP3 / AAC / WMA / FLAC / MIDI audio files.
Power LED
We have added a power indicator LED, so you can be sure that your board has a stable power supply.
Power regulator
On-Board power regulator ensures that each part of the board get the right voltages.
Hibernation Crystal Oscillator
Board contains 32.768kHz Crystal oscillator (X2) which provides external clock for internal hibernation module.

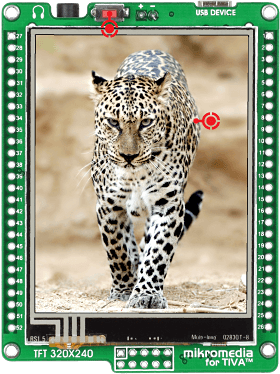

TFT with Touch Panel
320x240 TFT Color Display with Touch Panel (MI0283QT-9A) can display vivid and clear color images or advanced graphic content.

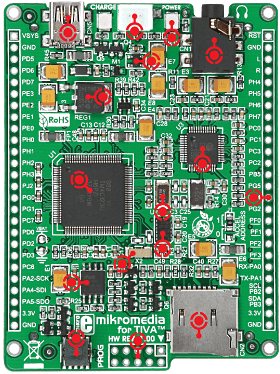

Up-Close
