Intel® Joule™ click SHIELD (Up)

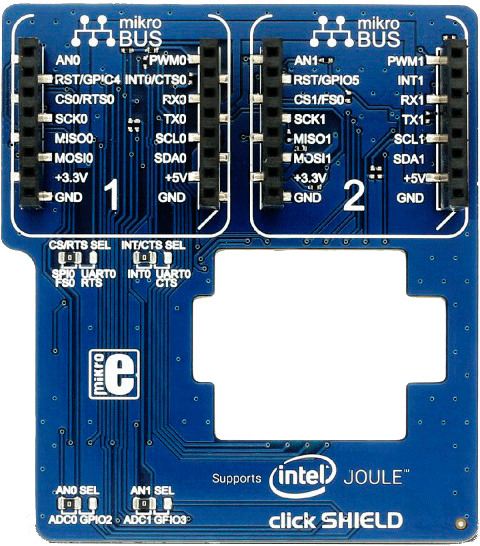

Intel® Joule™ click SHIELD Intel® Joule™ click SHIELD is an extension for Intel® Joule™ Expansion Board. This click shield allows you to add more than 270 click boards™ to your project. Add displays, WiFi, ZigBee or Bluetooth transceivers, Ethernet modules, sensors, MP3 codec circuit and other features to your prototype with ease.
R405  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon


Intel® Joule click SHIELD is an extension for Intel® Joule™ Expansion Board. This click shield allows you to add more than 270 click boards™ to your project. Add displays, WiFi, ZigBee or Bluetooth transceivers, Ethernet modules, sensors, MP3 codec circuit and other features to your prototype with ease.

Click boards™ come with examples written in MikroElektronika compilers, so you will have a great base for your future projects.

The Intel® Joule click SHIELD board includes the MCP3204 ADC - 4-Channel 12-Bit A/D Converters with SPI™ Serial Interface. The onboard ADC has a 2.048V reference.

The board also features 2x40 pin connectors.

Note: In case you don't want to use the 5V power supply on the Intel® Joule click SHIELD you should remove the jumper on the lower side of the board - marked as 5V EN.

Jumpers and settings

Intel® Joule Expansion Board

The expansion board is intended to breakout all I/O interfaces from the Intel® JouleTM module into easily accessible connectors.

Intel® Joule™ module

This powerful system on module (SoM) was designed to help inventors and IoT developers contribute to a new generation of robots, drones, and IoT devices that are equipped with Intel® HD Graphics, 3D modeling, object recognition, and interactive capabilities.

Key features

  • Two mikroBUS™ sockets
  • MCP3204 ADC
  • 2x40 connector pins
  • 3.3V and 5V power supply
