UMCC female-to-female cable adapter (Up)

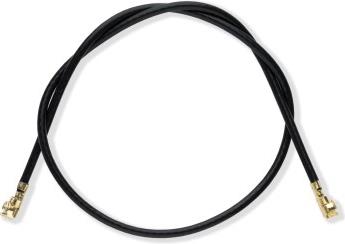

UMCC female-to-female cable adapter

The UMCC - Ultraminiature Coax Connector is an ultra low profile coax female to female interconnect solution that meets the ever growing demand for miniaturization in next generation wireless applications. UMCC cable are available as double-ended jumpers and inter-series assemblies, and PCB jack receptacles for board mount applications. This adapter is perfect fit to be used with our NFC extend Click and any of existing RFID/NFC antennas .

R97.50  Qty:
Price ex. VAT. Weight: 2g. Stock: Lead-time applicable [i]. mikroE Icon


Specification:

  • Cable Diameter: 1.37mm
  • Length L: 200mm
  • UMCC Cable Connector Type: III
  • Mated Height (H): 2.5mm
  • Characteristic Impedance: 50 Ohms
  • Frequency Range: DC to 6 GHz
  • VSWR (mated pair): 1.30 max DC to 3 GHz 1.5 max 3 to 6 GHz (typical)
  • Insertion Loss (connectors only): 0.24 dB max DC to 6 GHz

Features:

  • 2.5mm Type III maximum mated height
  • Easy snap on/off mating
  • Small footprint on PCB (3mm x 3mm)
  • Excellent performance to 6 GHz
  • Compatible with Hirose U.FL series connectors
