LV-32MX v6 (Go to Parent Category)

LV-32MX v6 The LV-32MX v6 is a full-featured development system that supports 64- and 100-pin PIC32MX microcontrollers from Microchip. The board features a fast USB 2.0 programmer and many peripherals such as TFT color display 320x240 with touch screen, audio codec, MMC/SD, serial Flash, etc.
R3,250
Price ex. VAT. Weight: 1,200g. Stock: Out of stock [i]. mikroE Icon

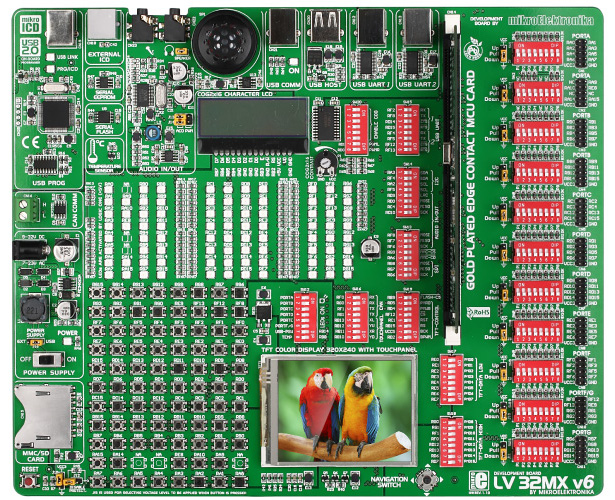

Board

Features
Arrow On-board USB programmer (no need to purchase an external programmer) with mikroICD for in-circuit-debugging from any of MikroElektronika's compilers. Free 2K limited demo compiler included.
Arrow MikroElektronika-standard IDC10 connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items").
Arrow Example programs.
Arrow USB or external AC/DC power supply option.
Arrow LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed).
Arrow Pull-up / pull-down option on all port pins.
Arrow Contrast adjustment on COG display via a potentiometer.
Arrow ICD (in-circuit debugging) connector for use with Microchip ICD products.
Arrow Reset button.
Arrow Supports PIC32MX series microcontrollers in 64- and 100-pin TQFP packages (extra MCU cards purchased separately).
Arrow Comes with a PIC32MX460F512L microcontroller.
Arrow Includes a 2x16 COG (chip-on-glass) and 320X240 TFT colour display with touch-screen.
Arrow On-board DS1820 temperature-sensor.
Arrow Directional navigation button.
Arrow USB host and two USB with serial UART connectors. On-board MCP2551 CAN module with screw-terminal connector.
Arrow Serial 24AA01 EEPROM with 1kbit of memory and I2C interface, serial 23K640 RAM module with SPI interface and MMC/SD Card socket
Arrow Speaker, 2 X 3.5mm jacks (headphone / microphone) and WM8731SEDS stereo codec.

Package
The package consists of:
Box
Protective Box
Board
LV-32MXv6
USB Cable
USB Cable
Manuals
Manuals
Software
Software

Supported Microcontrollers
Name

Pin Count

Program
Memory (KB)
CPU Speed
(Mhz)
RAM (KB)

PIC32MX320F032H 64 32 40 8
PIC32MX340F128H 64 128 80 128
PIC32MX360F256L 100 256 80 32
PIC32MX440F128L 100 128 80 32
PIC32MX460F512L 100 512 80 32
PIC32MX575F512L 100 512 80 64
PIC32MX675F512L 100 512 80 64
PIC32MX775F256L 100 256 80 64
PIC32MX795F512L 100 512 80 128
PIC32MX320F064H 64 64 80 16
PIC32MX340F128L 100 128 80 32
PIC32MX360F512L 100 512 80 32
PIC32MX440F256H 64 256 80 32
PIC32MX575F256H 64 256 80 64
PIC32MX675F256H 64 256 80 64
PIC32MX695F512H 64 512 80 128
PIC32MX775F512H 64 512 80 64
PIC32MX320F128H 64 128 80 16
PIC32MX340F256H 64 256 80 32
PIC32MX420F032H 64 32 40 8
PIC32MX440F512H 64 512 80 32
PIC32MX575F256L 100 256 80 64
PIC32MX675F256L 100 256 80 64
PIC32MX695F512L 100 512 80 128
PIC32MX775F512L 100 512 80 64
PIC32MX320F128L 100 128 80 16
PIC32MX340F512H 64 512 80 32
PIC32MX440F128H 64 128 80 32
PIC32MX460F256L 100 256 80 32
PIC32MX575F512H 64 512 80 64
PIC32MX675F512H 64 512 80 64
PIC32MX775F256H 64 256 80 64
PIC32MX795F512H 64 512 80 128
