On-board USB programmer (no need to purchase an external programmer) with mikroICD for in-circuit-debugging from any of MikroElektronika's compilers. Free 2K limited demo compiler included. |
|
MikroElektronika-standard IDC10 connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items"). |
|
Example programs. |
|
USB or external AC/DC power supply option. |
|
LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed). |
|
Pull-up / pull-down option on all port pins. |
|
Contrast adjustment on COG, LCD and GLCD displays via potentiometer. |
|
Replaceable crystal oscillator. |
|
ICD (in-circuit debugging) connector for use with Microchip ICD products. |
|
Reset button. |
|

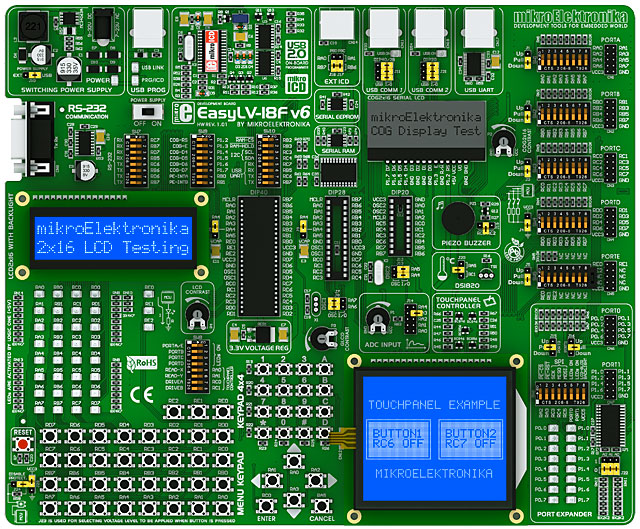

Supports PIC 18J and 18K microcontrollers in 20-, 28- and 40-pin DIP packages. |
|
Comes with a PIC18F45K20 microcontroller. |
|
Includes a 2x16 COG (chip-on-glass) display, and has place for a 2x16 LCD display and a 128x64 KS0108-type GLCD display with touch-panel (sold separately). |
|
DS1820 temperature-sensor connector (DS1820 sold separately). |
|
Potentiometer for ADC (analogue-to-digital converter) input. |
|
RS-232 (with MAX232) connector, dual USB connectors and USB with serial UART connector. |
|
4x4 matrix keypad and menu keypad (directional buttons). |
|
Port expander enabling additional inputs / outputs. |
|
Serial 24AA01 EEPROM with 1kbit of memory and I2C interface, and serial 23K640 RAM module with SPI interface. |
|
Piezo buzzer. |
