EasyAVR6 (Go to Parent Category)

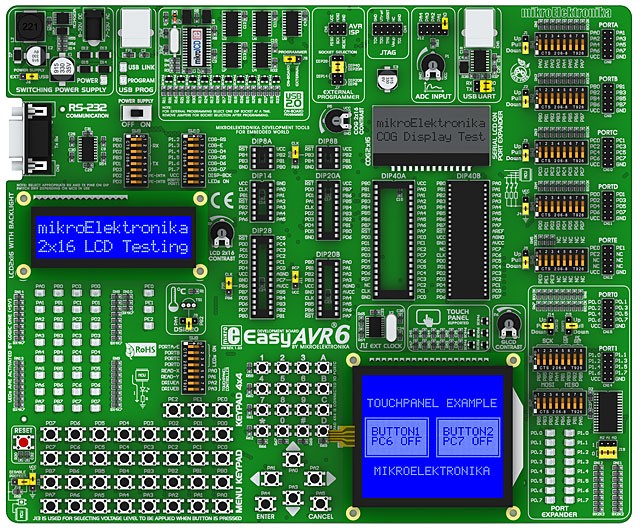

EasyAVR6 EasyAVR6 is a full-featured development system for AVR microcontrollers. The system features a fast USB 2.0 programmer and many peripheral modules such as COG, port expander, MENU and 4x4 keypads etc.
LCDs purchased seperately.
R2,700
Price ex. VAT. Weight: 1,100g. Stock: Out of stock [i]. mikroE Icon
Board
Note: LCDs purchased separately (COG display included).

Features
Arrow On-board USB programmer (no need to purchase an external programmer). Free 2K limited demo compiler included.
Arrow MikroElektronika-standard IDC10 connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items").
Arrow Example programs.
Arrow USB or external AC/DC power supply option.
Arrow LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed).
Arrow Pull-up / pull-down option on all port pins.
Arrow Contrast adjustment on COG, LCD and GLCD displays via a potentiometer.
Arrow Reset button.
Arrow Supports AVR microcontrollers in 8-, 14-, 20-, 28- and 40-pin DIP packages.
Arrow Comes with a ATMEGA16 microcontroller.
Arrow Includes a 2x16 COG (chip-on-glass), and has place for a 2x16 LCD display and a 128x64 KS0108-type GLCD display with touch-panel (sold separately).
Arrow DS1820 temperature-sensor connector (DS1820 sold separately).
Arrow Potentiometer for ADC (analogue-to-digital converter) input.
Arrow RS-232 (with MAX232) and USB with serial UART connector.
Arrow 4x4 matrix keypad and menu keypad (directional buttons).
Arrow Port expander enabling additional inputs / outputs.
Arrow JTAG connector for in-circuit debugging and firmware programming.

Package
Package
Supported Microcontrollers
AVR Microcontroller Family
AT90PWM2 AT90PWM216 AT90PWM2B AT90PWM3 AT90PWM316
AT90PWM3B AT90S1200 AT90S2313 AT90S2323 AT90S2343
AT90S4433 AT90S8515 AT90S8535 ATmega16 ATmega161
ATmega162 ATmega163 ATmega164P ATmega164PA ATmega165
ATmega165P ATmega168 ATmega168P ATmega169 ATmega169P
ATmega32 ATmega323 ATmega324 ATmega324P ATmega324PA
ATmega32A ATmega48 ATmega48P ATmega48PA ATmega644
ATmega644P ATmega644PA ATmega8 ATmega8515 ATmega8535
ATmega88 ATmega88P ATmega88PA ATmega8A ATtiny12
ATtiny13 ATtiny15 ATtiny2313 ATtiny24 ATtiny25
ATtiny26 ATtiny261 ATtiny44 ATtiny45 ATtiny461
ATtiny84 ATtiny85 ATtiny861
