Accelerometer
On-board ADXL345 Digital Accelerometer allows you to measure acceleration.
Audio connector
Board contains stereo audio and microphone connectors which are connected to the stereo audio codec.
Connection pads
Every unused microcontroller pin is available through connection pads. They can be used to connect your mikromedia board with additional shields or accessory boards.
Crystal Oscillator
8Mhz crystal oscillator circuit that provides external clock is connected to microcontroller osc pins.
RS-232 connector
Implement standard UART communication with RS-232 voltage levels using high quality RS-232 connector. Neccessary voltage levels are created with MAX3232 chip.
Ethernet Connector
High quality connector for standard ethernet cables with RJ-11 connector.
Ethernet PHY
LAN8720 provides neccessary physical layer for fast 10/100Mbps ethernet supported in PIC32MX7 microcontroller.
ICD2/3 connector
If you want to use Microchip ICD2/3 external programmer, there is a dedicated programmer connector available on the board.
Navigation switch
Navigation switch can be used for handling the on-screen menus or as a generic input device.
MAX3232
MAX3232 chip converts your UART signals to appropriate voltage levels necessary for RS-232 communication.

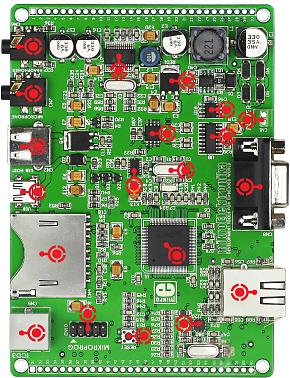

PIC32MX7 device
Microchip PIC32MX795F512L is a 32-bit device controlling the development board.
mikroProg Connector
Dedicated IDC10 connector for connecting and programming the board with mikroProg external programmer.
USB SLAVE connector
Using USB Slave connector you can build and test applications which use USB 2.0 communication protocol.
MMC/SD Activity Led
Used for monitoring MMC/SD card operation. It helps you to know when it’s safe to pull card out.
MMC/SD Card Slot
MMC/SD Card slot allows you to store large ammounts of data externally on MMC/SD card using fast SPI communication.
Power Supply Screw Terminals
You can easily provide necessary power supply using these power supply screw terminals.
Reset Button
High quality reset button with surrounding reset circuitry ensures stable reset operation.
Serial EEPROM
24AA01 Serial EEPROM can be used to store your device configuration and other startup parameters.
Serial Flash memory
Store up to 8 Mbit of data in M25P80 Serial Flash Memory with 25 MHz SPI Bus Interface. It suports over 100,000 Erase/Program Cycles per Sector and has over 20 Year Data Retention.
LEDs
LEDs are used to indicate the logic state of the LD0, LD1, LD2 and LD3 microcontroller pins.
Stereo Audio Codec
WM8731SEDS Stereo Codec with an integrated headphone driver allows you to create audio applications and manipulate audio input and output.
Temperature Sensor
Analog Temp. Sensor MCP9700A is used to measure temperature from -40ºC to 125ºC.

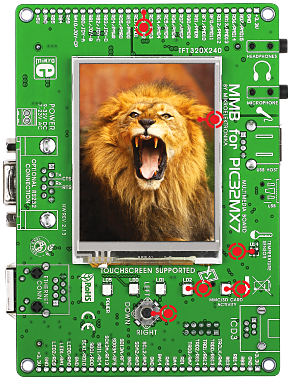

TFT with Touch Panel
320x240 TFT Color Display with Touch Panel can display vivid and clear color images or advanced graphic content.
USB HOST connector
USB Host Connector enables your device to behave as USB host. You can communicate with other USB slave devices, such as Flash Sticks, cameras, mp3 players and more.
Power regulator
On-Board power regulator ensures that each part of the board get the right voltages.
Up-Close
Hover your mouse over different parts of the board in order to view the details up-close.
