Prototyping area
Place your additional components on available prototyping area and expand your Ready for PIC with additional functionalities.
Crystal oscillator
On-board 8MHz crystal oscillator provides stable external clock to the PIC18F25K22 microcontroller and enables fast UART bootloader baudrates.
FTDI chip
FTDI chip allows your Ready for PIC board to be connected with a PC through USB cable over UART connection.
IDC10 PORT headers
All microcontroller pins are available through four IDC10 connectors. They enable you to easily attach many peripheral modules.
Inner screw holes
These 3.2mm screw holes are used to mount Ready for PIC firmly into white plastic casing.
mikroProg connector
You can program the board using mikroProg™ external programmer with mikroICD™ support.
Outter screw holes
These 6mm screw holes are used for enclosing white plastic casing.
PIC18F25K22
With just enough RAM and Flash, PIC18F25K22 microcontroller will provide you with enough power for most of your projects.
Power connector
Standard power connector is available for providing external power supply to your Ready for PIC board. You can provide 7-23V AC and 9-32V DC.
POWER LED
POWER LED turns on when power supply is brought either using USB cable, or via external power connectors.
Power regulator
On board power regulators for 3.3V and 5V ensure that each part of the board gets neccessary stable voltage and current levels.
Power screw terminals
For more easier connectivity Ready for PIC also contains screw terminals for providing external power supply. You can provide 7-23V AC and 9-32V DC.
Reset Button
High quality reset button with surrounding reset circuitry ensures stable reset operation.
Communication LEDs
Board contains specialized RX and TX LEDs for monitoring UART communication.
miniUSB UART connector
Fast on-board FTDI chip with USB connector, allow you to communicate with a PC or other UART devices using USB-UART connection.
Up-Close

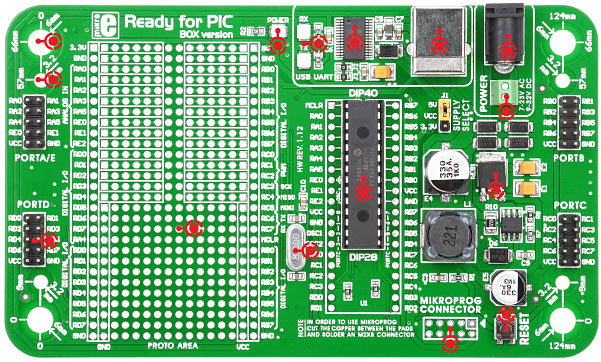

Hover your mouse over different parts of the board in order to view the details up-close.
