Analog System Lab Kit (ASLK) Pro (Up)

Analog System Lab Kit (ASLK) Pro ASLK PRO has been designed for undergraduate engineering students to perform analog lab experiments. It provides a cost efficient platform for students to realize almost any analog system using general purpose ICs such as OP-Amps and analog multipliers.
R5,450  Qty:
Price ex. VAT. Weight: 1,900g. Stock: Lead-time applicable [i]. mikroE Icon

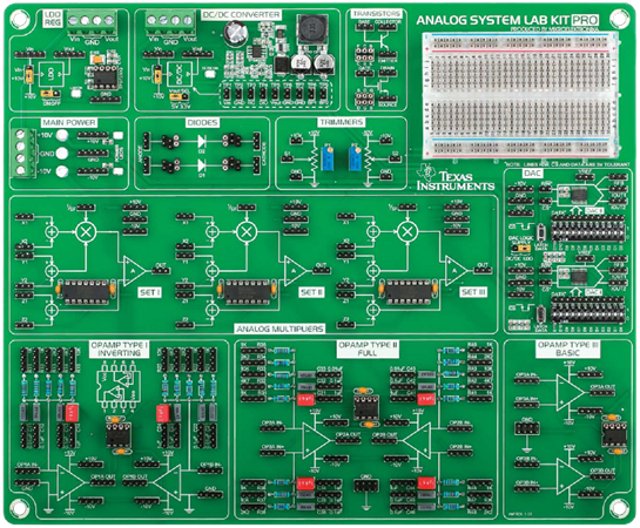

Analogue System Lab Kit Pro

Features
MagnifyerExplore Features Interactively
  • User manual (downloadable from here [7.51MB]), designed to be an entire analogue electronics course for the technologies included on the board. It includes 14 experiments which can be performed with the board, and thoroughly covers the theory behind each experiment as well as the components used in the experiment.
  • Three general-purpose operational amplifiers (TL082).
  • Three wide-bandwidth precision analogue multipliers (MPY634).
  • 12-bit parallel-input multiplying digital-to-analogue converters (DAC7821), with DIP-switches available as an input option.
  • Wide-input, non-synchronous, buck-type DC/DC converter (TPS40200).
  • Low dropout regulator (TPS7250).
  • Prototyping area.

Package
The package consists of:
Box
Protective Box
Board
Development Board
Manuals
Manuals
Accessories
Wire Jumpers, Transistors, Diodes
