Proteus USB Simulation Proteus VSM USB simulation represents the worlds first (and only) schematic based USB Simulation engine. Proteus interfaces with Windows on a driver level, so that it is as if your design were actually plugged into the computer's USB port. P.O.R. (Please contact us for more information) Price ex. VAT. Digital delivery possible. Stock: Available immediately [i].

USB UART click USB UART Click is an accessory board in the mikroBUS form factor. It is a compact and easy solution for adding serial UART communication via USB to your project. It features the FT232RL USB-to-UART interface module as well as a USB MINI B connector. The board is powered with 5V, but is designed to use 3.3V or 5V I/O levels (selectable via an SMD jumper). The board also features power, Rx and Tx LEDs. R515  Qty: Add to Basket Price ex. VAT. Est. Weight: 25g. Stock: Lead-time applicable [i].

USB UART 2 The USB UART 2 Board is a prototype board that features a USB-to-UART serial converter MCP2200 which enables USB connectivity for prototype devices that have a UART interface. The board also features a USB Connector. R185  Qty: Add to Basket Price ex. VAT. Est. Weight: 4g. Stock: Lead-time applicable [i].

FTDI click FTDI Click features the FT2232H dual high speed USB 2.0 to UART/I2C/SPI serial interface converter. It includes a DA converter and EEPROM as well. The entire USB protocol is handled on the chip (FTDI USB drivers are required), making this board ideal for various USB applications. FTDI Click communicates with the target board via mikroBUS SPI (MOSI, MISO, SCK, CS), I2C (SDA, SCL), UART (Tx, Rx), RST, PWM, AN and INT lines. The board can be powered via USB or via mikroBUS socket. A green LED indicates the presence of power supply. R695  Qty: Add to Basket Price ex. VAT. Est. Weight: 25g. Stock: Lead-time applicable [i].

FT230X Dongle The FT230X Dongle is a breakout board for the FT230X USB to UART converter from FTDI Chip, but with a USB Type A Male connector instead of the usual Type B Female connectors found on most breakout boards of this type. This board has been designed for embedded applications (such as Raspberry Pi and BeagleBone Black) where more UARTS are required than what the embedded board is usually able to provide. The FT230X Dongle plugs straight into the USB port, eliminating the need for an extra USB cable. All relevant pins of the FT230X IC are exposed, and Power / Rx / Tx LEDs are also included on the board. R205  Qty: Add to Basket Price ex. VAT. Est. Weight: 7g. Stock: Lead-time applicable [i].

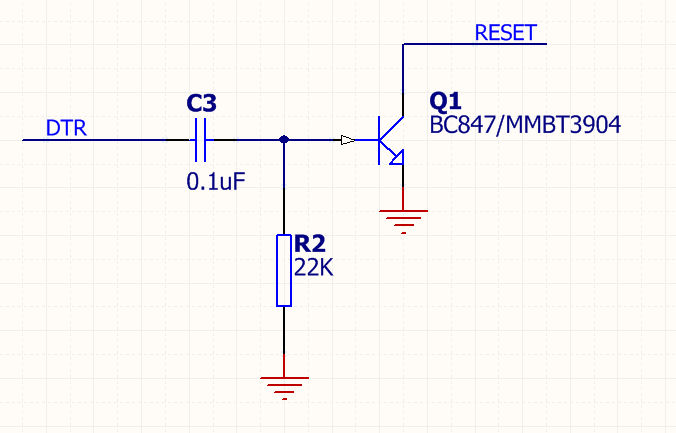

uUSB-PA5 USB-UART converter, needed to program 4D Systems Intelligent Displays. In addition to the RX, TX and power lines, it also includes a special Reset line which is needed by the displays (click for diagram). R435  Qty: Add to Basket Price ex. VAT. Weight: 5g. Stock: Lead-time applicable [i].
