WiFi 7 click (Go to Parent Category)

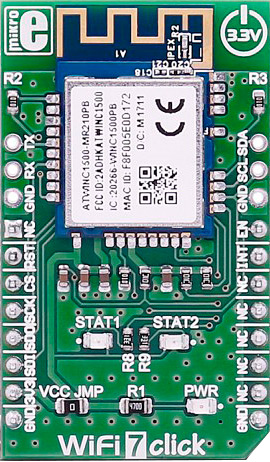

WiFi 7 click WiFi 7 click carries the ATWINC1510-MR210PB IEEE 802.11 b/g/n module, specifically optimized for low-power IoT applications. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over SPI interface, with additional functionality provided by the following pins on the mikroBUS™ line: PWM, INT, RST.
R455  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon


WiFi 7 click carries the ATWINC1510-MR210PB IEEE 802.11 b/g/n module, specifically optimized for low-power IoT applications. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over SPI interface, with additional functionality provided by the following pins on the mikroBUS™ line: PWM, INT, RST.

ATWINC1510-MR210PB features

The ATWINC1510-MR210PB is a low-power consumption 802.11 b/g/n module which is specifically optimized for low-power IoT applications.

The module has a Cortus APS3 32-bit processor. This processor performs many of the MAC functions, including but not limited to association, authentication, power management, security key management, and MSDU aggregation/de-aggregation. In addition, the processor provides flexibility for various modes of operation, such as STA and AP modes.

Module current consumption

The table below describes the current consumption of the ATWINC1510-MR210PB module:



Additional pins

Additional pins on the WiFi 7 click, besides the ones on the mikroBUS™ line:

Key features

  • ATWINC1510-MR210PB
    • IEEE® 802.11 b/g/n 20MHz solution
    • Integrated PCB antenna
    • Supports IEEE 802.11 WEP, WPA, WPA2 Security
  • SPI interface
  • 3.3V power supply
