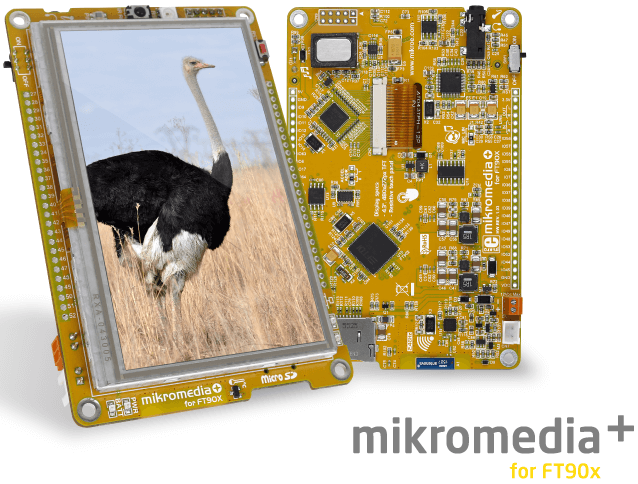

mikroMedia Plus for FT90x (Go to Parent Category)

mikroMedia Plus for FT90x This board provides a compact high-quality multimedia development platform for FT900 device. It has numerous on-board modules, that allow you to write multimedia applications.
R4,350  Qty:
Price ex. VAT. Est. Weight: 500g. Stock: Lead-time applicable [i]. mikroE Icon


Features
MagnifyerExplore Features Interactively
  • 480x272 4.3" Touch-screen TFT display, FT810 graphics controller.
  • 3.5mm headphone/microphone jack and stereo MPEG audio codec (VS1053).
  • High-quality 8 Ohm Magnetic Speaker 500mW 550Hz ~ 20kHz Top Rectangular 84dB
  • MicroSD card slot.
  • USB, with USB On-The-Go.
  • Bootloader (no external programmer necessary). Also features a JTAG connector compatible with the MikroProg programmer.
  • Example programs.
  • FT900 microcontroller.
  • ADXL345 accelerometer.
  • M25P80 serial flash memory.
  • Li-Po battery connector and MCP73832 controlled charging circuit (Li-Po battery sold seperately), as an alternative to powering the system via the USB cable or power connector (12V max input).
  • Nordic nRF24L01+ 2.4GHz RF transceiver with chip antenna.
  • Piezo buzzer.
  • RGB LED.
  • Photosensor for measuring ambient light.
  • Infra-red receiver.
  • MCP9700A analogue temperature sensor (-40°C to 125°C).
  • Lithium-polymer real-time clock (RTC) backup battery.
  • Reset button.
  • On/off switch.

Package
The package consists of:
Box
Protective Box
MikroMedia Board
MikroMedia
USB Cable
USB cable, microSD card 2GB and 3
headers (2x5 and a pair of 1x26)
