uLCD-43D (Go to Parent Category)

uLCD-43D Intelligent 4.3" TFT display with 480x272px resolution and optional touch-screen, featuring the PICASO controller as well as a number of other features.
Non-Touch    R2,400  Qty:
Price ex. VAT. Weight: 125g. Stock: Lead-time applicable [i]. 4D Systems Icon
Resistive Touch    R3,100  Qty:
Price ex. VAT. Weight: 150g. Stock: Lead-time applicable [i]. 4D Systems Icon
Capacitive Touch    R4,500  Qty:
Price ex. VAT. Weight: 175g. Stock: Lead-time applicable [i]. 4D Systems Icon
Overview
Intelligent display module, which makes implementing a colour touch-screen display for your project easy. It can be used standalone, or can interface with your microcontroller via a simple serial UART interface.

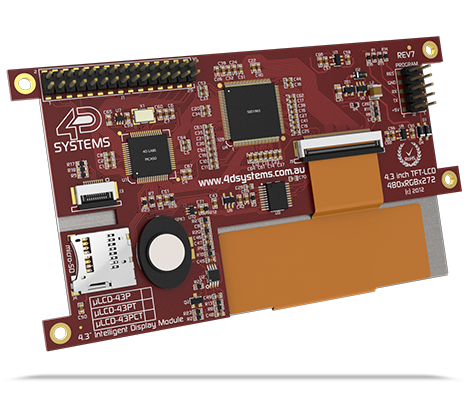

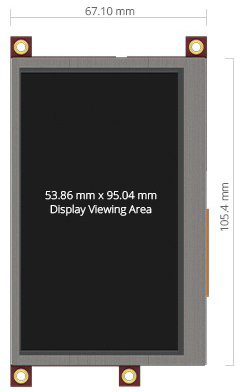

Back Dimensions

Features
  • Intelligent 4.3" display with 480x272px resolution and optional resistive / capacitive touch-screen, featuring the DIABLO controller.
  • Programmed using the free Workshop4 IDE, with options for controlling the display with a microcontroller via simple serial commands.
  • microSD card socket.
  • Audio amplifier and speaker.
  • LiPo battery support, with built-in charger and automatic change-over.
  • 13 x general-purpose I/O pins.
  • 2 x serial ports.
  • 1 x I2C interface (master).
  • 8 x 16-bit timers with 1ms resolution.
  • 5V operation.
  • Module dimensions: 105.5x67.0x14.7mm.
  • Viewing area: 95.0x53.9mm.
  • Weight: approx. 79g.

Workshop4 IDE

Genie Screen

The free Workshop4 IDE is used to program / configure the intelligent display, with features such as an easy-to-use, drag-and-drop, visual design environment.

Package
The package consists of:
Display
Display Module
Cable
5-Way Jumper Cable
Adapter
5-Way Adapter
Manual
Quick-Start User Guide
