Overview
Intelligent

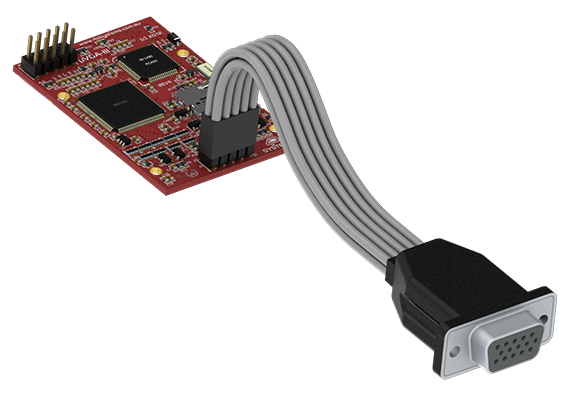

display controller, which makes implementing a colour QVGA (320x240), VGA (640x480) or WVGA (800x480) screen for your project easy. It can be used standalone, or can interface with your microcontroller via a simple serial UART interface. The controller features a standard VGA graphics connector, which can be connected to any screen with a VGA port.
Features
- Intelligent display controller handling QVGA (320x240), VGA (640x480) or WVGA (800x480) resolutions, featuring the PICASO controller, with a VGA graphics connector for connecting to any screen with a VGA port.
- Programmed using the free Workshop4 IDE, with options for controlling the display with a microcontroller via simple serial commands.
- microSD card socket.
- Audio pins for connecting a speaker, with support for playing FAT16 WAV files.
- 13 x general-purpose I/O pins.
- 2 x serial ports.
- 1 x I2C interface (master).
- 8 x 16-bit timers with 1ms resolution.
- 5V operation.
- Module dimensions: 57.2x39.0mm.
- Weight: approx. 17g.
Workshop4 IDE
The free
Workshop4 IDE is used to program / configure the intelligent display controller, with features such as an easy-to-use, drag-and-drop, visual design environment.
Package
The package consists of:
 |
| Display Module |
 |
| VGA Cable |
 |
| 5-Way Jumper Cable |
 |
| 5-Way Adapter |
 |
| 2x15 SMT Male Connector |
 |
| Quick-Start User Guide |
