Overview
Intelligent

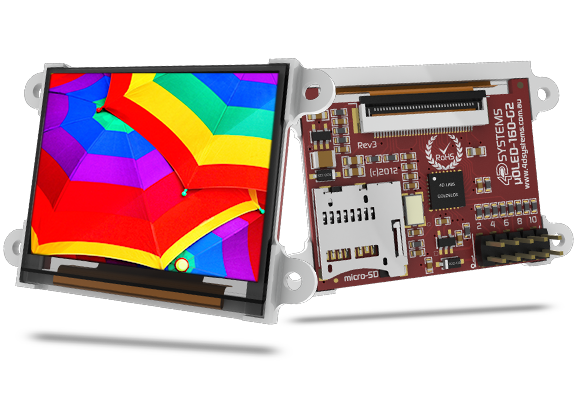

display module, which makes implementing a colour display for your project easy. It can be used standalone, or can interface with your microcontroller via a simple serial UART interface.
Features
- Intelligent 1.7" display with 160x128px resolution, featuring the GOLDELOX controller.
- No backlighting, with near 180° viewing angle.
- Programmed using the free Workshop4 IDE, with options for controlling the display with a microcontroller via simple serial commands.
- microSD card socket, with support for FAT16-formatted cards.
- 2 x general-purpose I/O pins; with support for digital I/O, ADC, PWM and Dallas 1-wire.
- 1 x serial ports.
- 4 x 16-bit user timers with 1ms resolution, and 1 x 32-bit free-running system timer with 1ms resolution.
- 10KB of flash for user code and 510B of RAM for user variables (255 x 16-bit variables).
- 5V operation.
- Module dimensions: 52.0x36.0x13.7mm.
- Viewing area: 33.6x27.0mm.
- Weight: approx. 13g.
Workshop4 IDE
The free
Workshop4 IDE is used to program / configure the intelligent display, with features such as a drag-and-drop visual design environment.
Package
The package consists of:
 |
| Display Module |
 |
| 5-Way Jumper Cable |
 |
| 5-Way Adapter |
 |
| Quick-Start User Guide |
