DC MOTOR 5 click (Go to Parent Category)

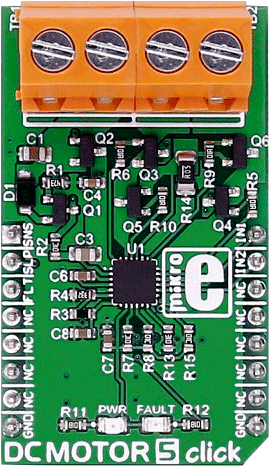

DC MOTOR 5 click DC MOTOR 5 click carries the DRV8701 brushed DC motor gate driver from Texas Instruments. The click is designed to run on an external power supply. It communicates with the target MCU over the following pins on the mikroBUS™ line: AN, RST, CS, PWM, and INT.
R405  Qty:
Price ex. VAT. Stock: Lead-time applicable [i]. mikroE Icon


DC MOTOR 5 click carries the DRV8701 brushed DC motor gate driver from Texas Instruments. The click is designed to run on an external power supply. It communicates with the target MCU over the following pins on the mikroBUS™ line: AN, RST, CS, PWM, and INT.

DRV8701 driver features

The DRV8701 is an H-bridge gate driver (also called a pre-driver or controller). The device integrates FET gate drivers in order to control four external NMOS FETs. The device can be powered with a supply voltage between 5.9V and 45V.

Internal protection functions are provided: under-voltage lockout, charge pump faults, overcurrent shutdown, short-circuit protection, pre-driver faults, and overtemperature.

How the click works

The motor's velocity and direction can be adjusted with two PWM input signal's.

Specifications

Type DC
Applications Industrial brushed-DC motors, robotics, home automation, etc.
On-board modules DRV8701 Brushed DC Motor Full-Bridge Gate Driver
Key Features supply voltage between 5.9V and 45V
Interface GPIO
Click board size M (42.9 x 25.4 mm)

Pinout diagram

This table shows how the pinout on DC MOTOR 5 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

NotesPinMikrobus logo.pngPinNotes
Sense comparator output SNSO 1 AN PWM 16 IN1 Input signal 1
Device sleep mode SLEEP 2 RST INT 15 IN2 Input signal 2
Fault indication pin FAULT 3 CS TX 14 NC
NC 4 SCK RX 13 NC
NC 5 MISO SCL 12 NC
NC 6 MOSI SDA 11 NC
NC 7 3.3V 5V 10 NC
Ground GND 8 GND GND 9 GND Ground

Buttons and LEDs

DesignatorNameTypeDescription
LD1 PWR LED Power Indication LED
TB1 VM CD Voltage input connector
TB2 Out_M CD Motor connector

Maximum ratings

DescriptionMinTypMaxUnit
Supply VOltage 5.9 45 V
Source Current 6 150 mA
Sink Current 12.5 300 mA
Applied PWM signal 100 kHz
Operating ambient temperature -40 125 ?


Programming

Code examples for DC MOTOR 5 click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

The following code snippet shows an example of DC motor 5 click usage. It will detect button press, and change the state of the control pins, putting the motor into one of the 4 possible states.

01 void main()
02 {
03     systemInit();
04
05    while (1)
06     {
07         // Coast
08         if (Button(&GPIOD_IDR, 1, 1, 1))
09         {
10             IN1_PIN = 0;
11             IN2_PIN = 0;
12         }
13
14        // Reverse
15         if (Button(&GPIOD_IDR, 2, 1, 1))
16         {
17             IN1_PIN = 0;
18             IN2_PIN = 1;
19         }
20
21        // Brake
22         if (Button(&GPIOD_IDR, 3, 1, 1))
23         {
24             IN1_PIN = 1;
25             IN2_PIN = 1;
26         }
27
28        // Forward
29         if (Button(&GPIOD_IDR, 4, 1, 1))
30         {
31             IN1_PIN = 1;
32             IN2_PIN = 0;
33         }
34
35    }
36 }
