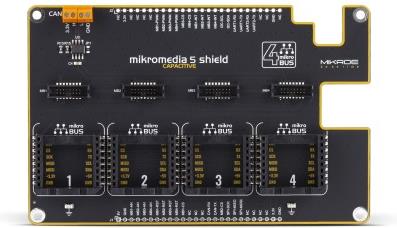

mikroMedia 5" Capacitive shield (Up)

mikroMedia 5" Capacitive shield Mikromedia 5 CAPACITIVE shield is the perfect way to expand the functionalities of your mikromedia 5 CAPACITIVE with 4 mikroBUSâ„¢ sockets - add any functionality from our ever-growing range of Click boardsâ„¢. We are fully stocked with everything from sensors and wifi transceivers to motor control and audio amplifiers.
R840  Qty:
Price ex. VAT. Weight: 90g. Stock: Lead-time applicable [i]. mikroE Icon
  • Description


Mikromedia 5 CAPACITIVE shield is the perfect way to expand the functionalities of your mikromedia 5 CAPACITIVE with 4 mikroBUS™ sockets - add any functionality from our ever-growing range of Click boards™. We are fully stocked with everything from sensors and wifi transceivers to motor control and audio amplifiers.

The board features 4 mikroBUS™ sockets, CAN transceiver, test points, as well as 4 mikroBUS™ Shuttle connectors. Typically, a mikroBUS™ Shuttle connector can be used in combination with mikroBUS™ Shuttle extension board but is not limited to it. Pins labeled as NC are not used on the shield, but they are routed on the mikromedia board to a corresponding microcontroller pin. For more information please check schematic files of the used hardware. Two separate 1x26 pin female sockets come with the board package.
