Big8051 (Go to Parent Category)

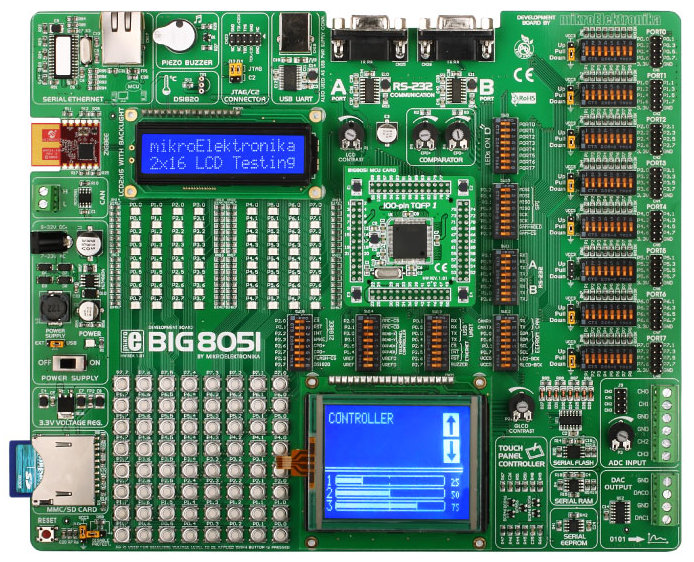

Big8051 The BIG8051 development system supports 100-pin Silabs 8051 microcontrollers. It comes with the c8051f040 microcontroller. The system is delivered with a Silabs USB 2.0 programmer and many peripheral modules such as Serial Ethernet, DAC, ADC etc.
LCDs, SD card and MRF24J40MA ZigBee RF module purchased seperately.
R5,450  Qty:
Price ex. VAT. Est. Weight: 1,300g. Stock: Lead-time applicable [i]. mikroE Icon
Board
Note: LCDs, SD card and MRF24J40MA ZigBee RF module sold separately.

Features
Arrow Silicon Laboratories USB programmer / debugger included (no need to purchase an additional programmer) which connects to the board's JTAG connector. Free 2K limited demo compiler included.
Arrow MikroElektronika-standard IDC10 connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items").
Arrow Example programs.
Arrow USB or external AC/DC power supply option.
Arrow LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed).
Arrow Pull-up / pull-down option on all port pins.
Arrow Contrast adjustment on LCD and GLCD displays via potentiometers.
Arrow Reset button.
Arrow Supports Silabs 8051 microcontrollers in 100-pin TQFP packages (extra MCU cards purchased separately).
Arrow Comes with a C8051F040 microcontroller.
Arrow Has place for a 2x16 LCD display and a 128x64 KS0108-type GLCD display with touch-panel (sold separately).
Arrow DS1820 temperature-sensor connector (DS1820 sold separately).
Arrow 4 screw-terminals and a potentiometer for ADC (analogue-to-digital converter) input, and a 12-bit MCP4921 DAC chip (SPI interface) for dual analogue output with screw-terminals connectors.
Arrow Dual potentiometers for providing inputs to the microcontrollers' comparator.
Arrow Dual RS-232 (with MAX232) connectors, USB with serial UART connector and serial Ethernet module. On-board MCP2551 CAN module with screw-terminal connector.
Arrow Place for a 2.4 GHz IEEE 802.15.4 ZigBee Transceiver Module (sold separately).
Arrow Serial 24AA01 EEPROM with 1kbit of memory and I2C interface, serial 23K640 RAM module with SPI interface, and serial M25P80 flash memory with SPI interface.
Arrow MMC/SD Card socket.
Arrow Piezo buzzer.

Package
The package consists of:
Box
Protective Box
Board
Big8051
USB Cable
Programmer / Debugger
Manuals
Manuals
Software
Software


Supported Microcontrollers
Silicon Laboratories 8051 Microcontroller Family
C8051F040 C8051F042 C8051F044 C8051F046
