EasyARM v6 (Go to Parent Category)

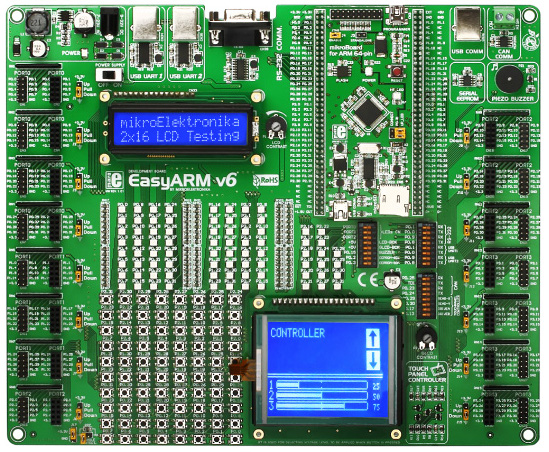

EasyARM v6 The EasyARM v6 development system supports the 64- and 144-pin ARM microcontrollers from NXP. It comes with the LPC2148. The board features a USB 2.0 programmer and a touch panel controller for easy prototype development.
LCDs purchased seperately.
R2,950  Qty:
Price ex. VAT. Est. Weight: 1,300g. Stock: Lead-time applicable [i]. mikroE Icon
Board
Note: LCDs sold separately.

Features
Arrow miniUSB and JTAG connector on the mikroBoard (see "Accessories") for programming /debugging (miniUSB option does not require an additional programmer, but does not support debugging).
Arrow MikroElektronika-standard IDC10 connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items").
Arrow Example programs.
Arrow USB or external AC/DC power supply option.
Arrow LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed).
Arrow Pull-up / pull-down option on all port pins.
Arrow Contrast adjustment on LCD and GLCD displays via potentiometers.
Arrow Reset button.
Arrow Supports NXP ARM microcontrollers in 64- and 144-pin packages (mikroBoards sold separately - please see "Accessories" for more information).
Arrow Comes with a mikroBoard for ARM 64-pin with LPC2148 microcontroller.
Arrow Has place for a 2x16 LCD display and a 128x64 KS0108-type GLCD display with touch-panel (sold separately).
Arrow RS-232 (with MAX232) connector. Dual USB and USB with serial UART connectors (using the optional 144-pin mikroBoard with LPC2214 will result in having only one USB connector). On-board MCP2551 CAN module with screw-terminal connector.
Arrow Serial 24AA01 EEPROM with 1kbit of memory and I2C interface, and serial M25P80 flash memory with SPI interface.
Arrow microSD Card socket.
Arrow Piezo buzzer.

Package
The package consists of:
Box
Protective Box
Board
EasyARMv6
Manuals
MikroBoard for ARM 64-pin
with LPC2148
USB Cable
USB Cable
Software
Software

Supported Microcontrollers
NXP ARM Microcontroller Family
LPC2148 LPC2214
