UNI-DS6 (Go to Parent Category)

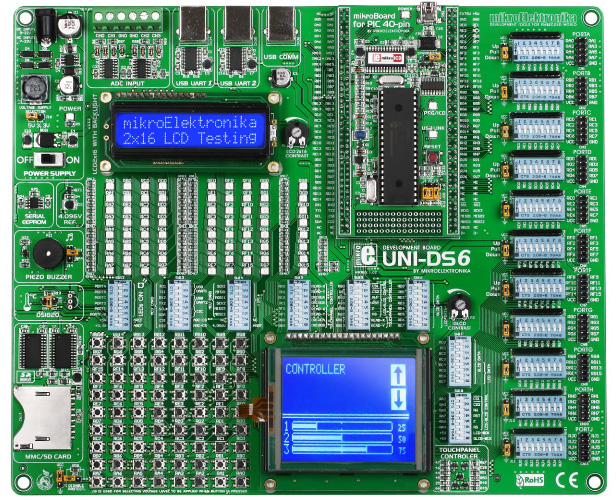

UNI-DS6 UNI-DS6 board is a full-featured universal development environment for 7 different microcontroller achitectures. This universal development station is equipped with many on-board modules which give you great power and flexibility when creating or testing your prototype.
LCDs /mikroBoard purchased seperately.
R3,700  Qty:
Price ex. VAT. Weight: 1,300g. Stock: Lead-time applicable [i]. mikroE Icon
Board
Note: LCDs and mikroBoard (plug-in / swappable microcontroller board) sold separately.

Features
USB Programmer on all mikroBoards (see "Accessories") - no need to purchase an additional programmer. JTAG connector on AVR and ARM mikroBoards.
MikroElektronika-standard IDC10 connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items").
Example programs.
USB or external AC/DC power supply option.
LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed).
Pull-up / pull-down option on all port pins.
Contrast adjustment on LCD and GLCD displays via potentiometers.
Reset button.
Supports PIC, AVR, 8051, ARM and Cypress PSoC microcontrollers (mikroBoards sold separately - please see "Accessories" for more information).
Has place for a 2x16 LCD display and a 128x64 KS0108-type GLCD display with touch-panel (sold separately).
DS1820 temperature-sensor connector (DS1820 sold separately).
12-bit MCP3204 ADC (Analog-to-Digital Converter) with screw-terminal connectors - precise 4.096V reference voltage available.
USB and dual USB with serial UART connectors.
Serial 24AA01 EEPROM with 1kbit of memory and I2C interface. ARM mikroBoards also feature serial M25P80 flash memory with SPI interface.
MMC/SD Card socket with SPI interface (additional microSD Card socket on ARM mikroBoards).
Piezo buzzer.

Package
The package contains:
Box
Protective Box
Board
UNI-DS6
Manuals
Manuals
Software
Software

Supported Microcontrollers
The UNI-DS6 uses "mikroBoards" - please see "Accessories" for more information.
