EasyMxPROv7 for Stellaris ARM (Go to Parent Category)

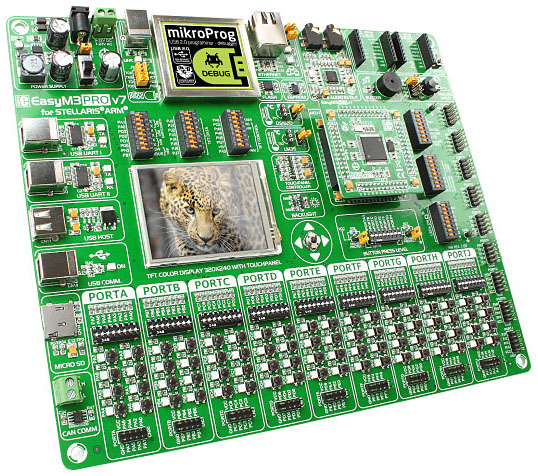

EasyMxPROv7 for Stellaris ARM EasyMx PRO v7 for Stellaris ARM is a development board for Stellaris ARM Cortex-M3 32-bit devices. It contains many on-board modules necessary for the development of a variety of applications; including multimedia, Ethernet, USB, CAN and more.
Price ex. VAT. Weight: 1,300g. Stock: Out of stock [i]. mikroE Icon

MagnifyerExplore Features Interactively
  • On-board USB programmer (no need to purchase an external programmer) with mikroICD for in-circuit-debugging from any of MikroElektronika's compilers. Free 8K limited demo compiler included.
  • MikroElektronika-standard IDC10 connectors, as well as two "mikroBus" connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items").
  • Example programs.
  • USB or external AC/DC power supply option.
  • LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed).
  • Pull-up / pull-down option on all port pins.
  • TFT backlight brightness controllable via PWM (pulse-width-modulation).
  • Reset button.
  • Supports Stellaris ARM Cortex-M3 and Cortex-M4 microcontrollers.
  • Comes with a LM3S9B95 microcontroller.
  • Includes a 320X240 TFT colour display with touch-screen.
  • DS1820 and LM35 temperature-sensor connectors (DS1820/LM35 sold separately).
  • Directional navigation button.
  • Potentiometer for ADC (Analog-to-Digital Converter) input.
  • USB, USB host and two USB with serial UART connectors. On-board MCP2551 CAN module with screw-terminal connector. Ethernet connector.
  • Serial 24AA01 EEPROM with 1kbit of memory and I2C interface and serial M25P80 Flash with 8Mbit of memory and SPI interface, and microSD card socket.
  • 2 X 3.5mm jacks (headphone / microphone) and VS1053 stereo codec. Piezo buzzer.

The package consists of:
Protective Box
Development Board
USB Cable
USB Cable

Supported Microcontrollers
