EasyPIC PRO v7 (Go to Parent Category)

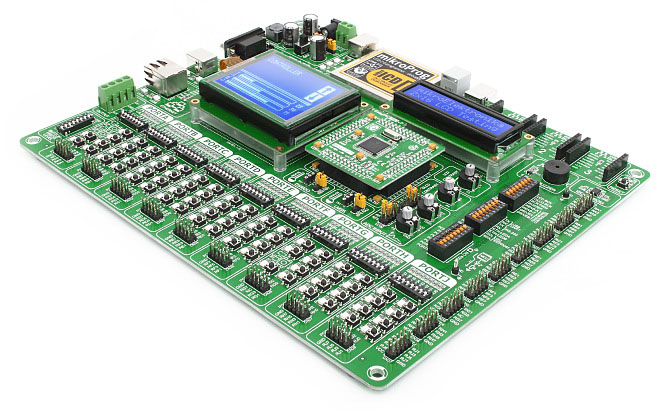

EasyPIC PRO v7 EasyPIC PRO v7 is a full-featured development board for high pin-count 8-bit PIC microntrollers. It contains many on-board modules necessary for the development of a variety of applications; including graphics, Ethernet, USB, data-logging and more.
LCDs purchased seperately.
R4,350  Qty:
Price ex. VAT. Weight: 1,300g. Stock: Lead-time applicable [i]. mikroE Icon
Board
Note: LCDs sold separately.

Features
MagnifyerExplore Features Interactively
  • On-board USB programmer (no need to purchase an external programmer) with mikroICD for in-circuit-debugging from any of MikroElektronika's compilers. Free 2K limited demo compiler included.
  • MikroElektronika-standard IDC10 connectors, as well as three "mikroBus" connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items").
  • Example programs.
  • USB or external AC/DC power supply option. Supports both 3.3V and 5V microcontrollers. 3.3V and 5V supplies are made available for external use via screw-terminal connectors.
  • LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed).
  • Pull-up / pull-down option on all port pins.
  • Contrast adjustment on LCD and GLCD displays via potentiometers, and backlight brightness controllable via PWM (pulse-width-modulation).
  • ICD (in-circuit debugging) connector for use with Microchip ICD products.
  • Reset button.
  • Supports PIC 18 series microcontrollers in 64-, 80- and 100-pin TQFP packages (extra MCU cards purchased separately).
  • Comes with a PIC18F87K22 microcontroller.
  • Has place for a 2x16 LCD display and a 128x64 KS0108-type GLCD display with touch-panel (sold separately).
  • DS1820 and LM35 temperature-sensor connectors (DS1820/LM35 sold separately).
  • Two potentiometers for ADC (Analog-to-Digital Converter) inputs.
  • RS232 (with MAX232), Ethernet, USB and USB with serial UART connectors.
  • Serial 24AA01 EEPROM with 1kbit of memory and I2C interface.
  • Piezo buzzer.

Package
The package consists of:
Box
Protective Box
Board
Development Board
USB Cable
USB Cable
Manuals
Manuals
Software
Software

Supported Microcontrollers
