EasyPIC7 for dsPIC30 (Go to Parent Category)

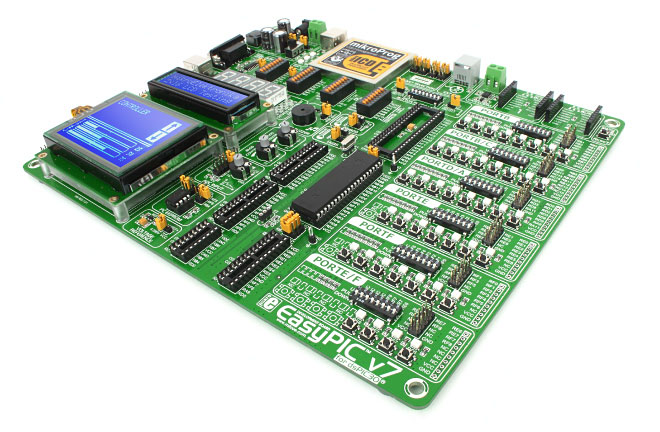

EasyPIC7 for dsPIC30 EasyPIC v7 for dsPIC30 is mikroElektronika's seventh generation dsPIC development board. It is loaded with modules you will need in development of your DSP applications and includes an on-board programmer and debugger, CAN, sensors and much more. It come with a dsPIC30F4013 microcontroller.
R4,350  Qty:
Price ex. VAT. Est. Weight: 1,300g. Stock: Lead-time applicable [i]. mikroE Icon
Board
Note: LCDs sold separately.

Features
MagnifyerExplore Features Interactively
  • On-board USB programmer (no need to purchase an external programmer) with mikroICD for in-circuit-debugging from any of MikroElektronika's compilers. Free 2K limited demo compiler included.
  • MikroElektronika-standard IDC10 connectors, as well as two "mikroBus" connectors, used to easily add functionality by connecting any of a huge range of accessory boards (see "Related Items").
  • Example programs.
  • USB or external switching AC/DC (9-32V DC or 7-23V AC) power supply option. Supports both 3.3V and 5V microcontrollers.
  • LEDs and buttons connected to all available port pins (buttons can apply logic high or low when pressed).
  • Pull-up / pull-down option on all port pins.
  • Contrast adjustment on LCD and GLCD displays via potentiometers, and backlight brightness controllable via PWM (pulse-width-modulation).
  • Replaceable crystal oscillator.
  • ICD (in-circuit debugging) connector for use with Microchip ICD products.
  • Reset button.
  • Supports dsPIC30 series microcontrollers in 18-, 28- and 40-pin DIP packages.
  • Comes with a dsPIC30F4013 microcontroller.
  • Has place for a 2x16 LCD display and a 128x64 KS0108-type GLCD display with touch-panel (sold separately). Comes with 4 x 7-segment displays.
  • DS1820 and LM35 temperature-sensor connectors (DS1820/LM35 sold separately).
  • Potentiometer for ADC (Analog-to-Digital Converter) input.
  • Precise 4.096V reference voltage available for ADC (analogue-to-digital conversions).
  • RS232 (with MAX232) and USB (with serial UART) connectors, and MCP2551 CAN controller with screw-terminal connector.
  • Serial 24AA01 EEPROM with 1kbit of memory and I2C interface.
  • Piezo buzzer.

Package
The package consists of:
Box
Protective Box
Board
Development Board
USB Cable
USB Cable
Manuals
Manuals
Software
Software

Supported Microcontrollers
